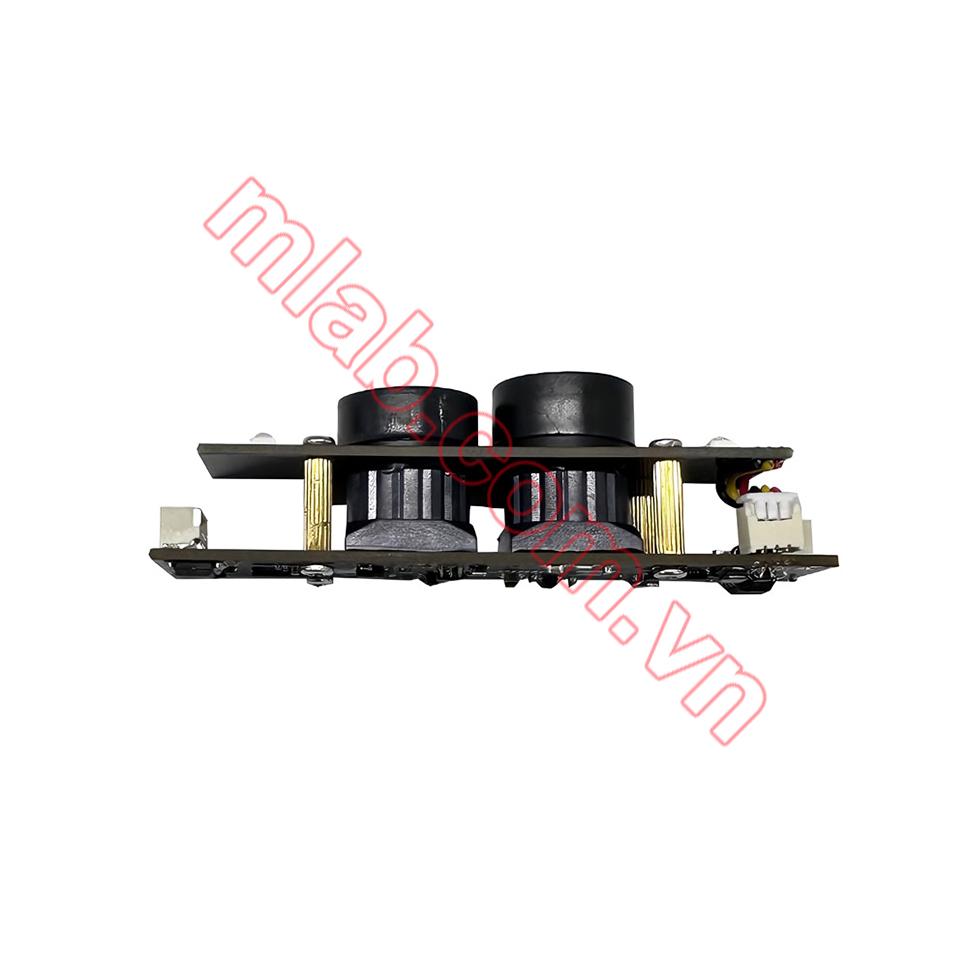

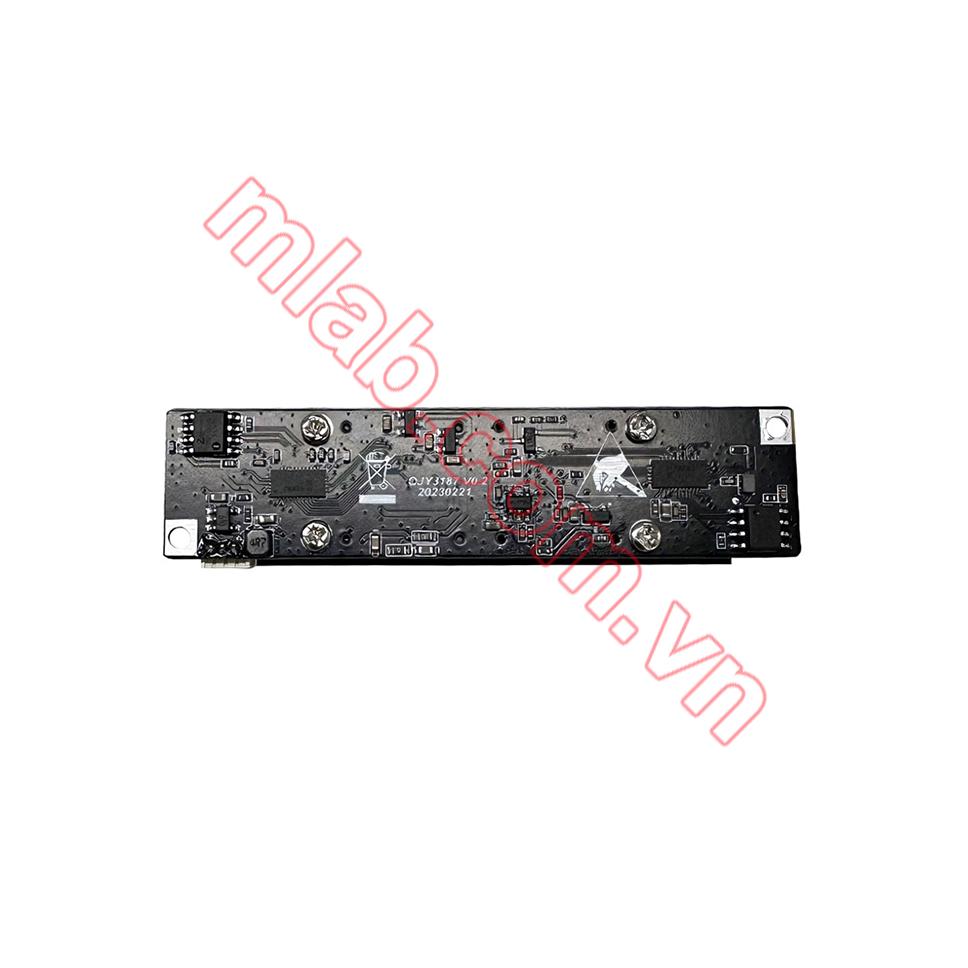

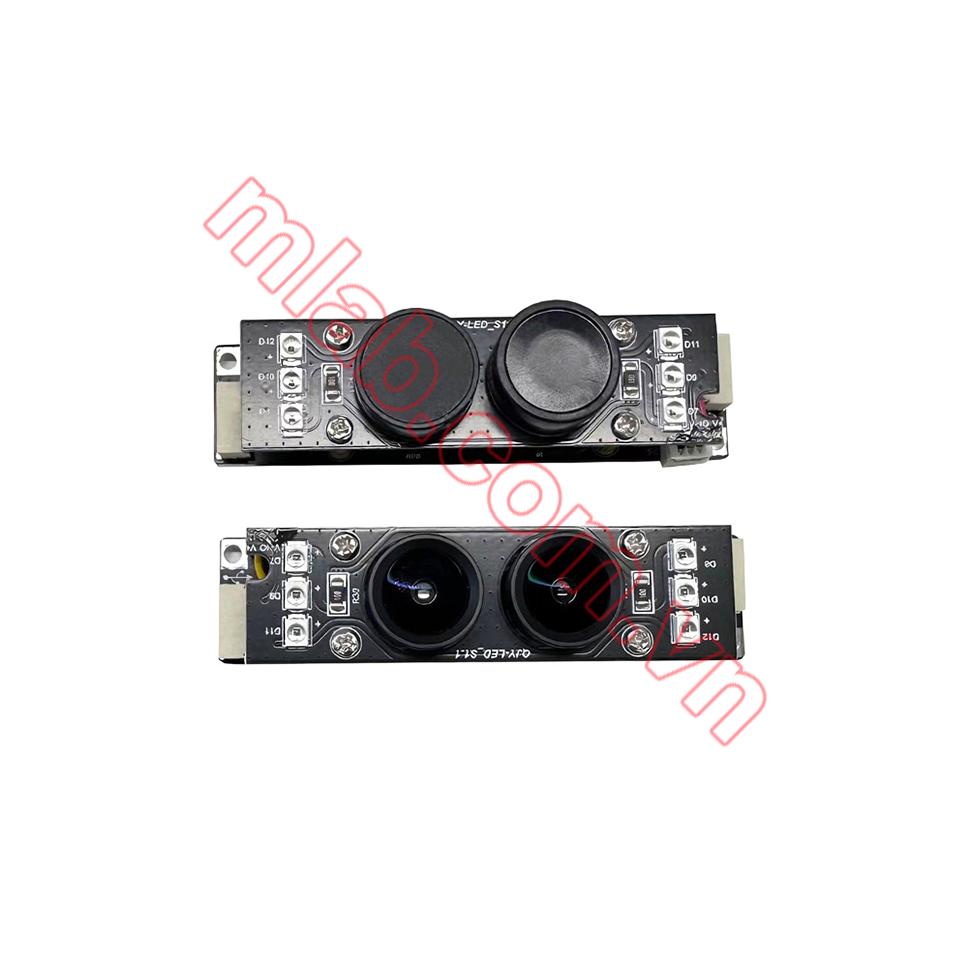

RD21 Industrial Level HD Image sensor USB 2.0 High speed 2-mega Infrared and 2-mega wide dynamic module
RD21 Industrial HD Image Sensor Dynamic Module
Discover unmatched visual clarity with our cutting-edge industrial camera, featuring a 1/2.9" HD image sensor for supreme dynamics and sensitivity. Ideal for complex lighting, it boasts a 90° ultra-wide, distortion-free lens and crisp imaging from 40cm to infinity. Experience maximum 1200TVL resolution and ultra-low light performance at 0.01Lux. Our camera ensures stable operation across extreme temperatures from -30℃ to 70℃, and quality assured by USB-IF WHQL, ROHS, CE certifications. Benefit from USB 2.0 high-speed data transfer and extensive compatibility, including UVC architecture. Customizable device descriptors and top-grade cabling ensure seamless integration for a broad spectrum of industrial applications.
Description
Signal | B/W(infrared) | Multicolour | REMARKS | |||
Scanning mode | Progressive scan |
| ||||
Scan frequency (H) | 25HZ |
| ||||
Scan frequency (V) | 50HZ |
| ||||
Image photoreceptor | 1/2.9 2M |
| ||||
Effective pixel | 1920*1080 |
| ||||
Pixel point size | 2.8um*2.8um |
| ||||
Data output type | Raw Data 10bits |
| ||||
Output format | MPJG/YUY2 |
| ||||
Resolution and Frame Rate | 1920x1080 at 25fps 1280x960 at 30fps 1280x720 at 30fps 1024x768 at 30fps 800x600 at 30fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps | 1920x1080 at 25fps 1280x1024 at 25fps 1280x720 at 30fps 800x600 at 30fps 352x288 at 30fps 160x120 at 30fps | MJPG | |||
Resolution and Frame Rate | 1920x1080 at 25fps 1280x960 at 30fps 1024x768 at 30fps 640x480 at 30fps 320x240 at 30fps | 1920x1080 at 25fps 1280x1024 at 25fps 1280x720 at 30fps 800x600 at 30fps 352x288 at 30fps 160x120 at 30fps | YUY2 | |||
Noise-signal ratio | ≥50db |
| ||||
Dynamic range | ≥80db |
| ||||
Minimal illumination | ≥0.1LUX at F1.2 |
| ||||

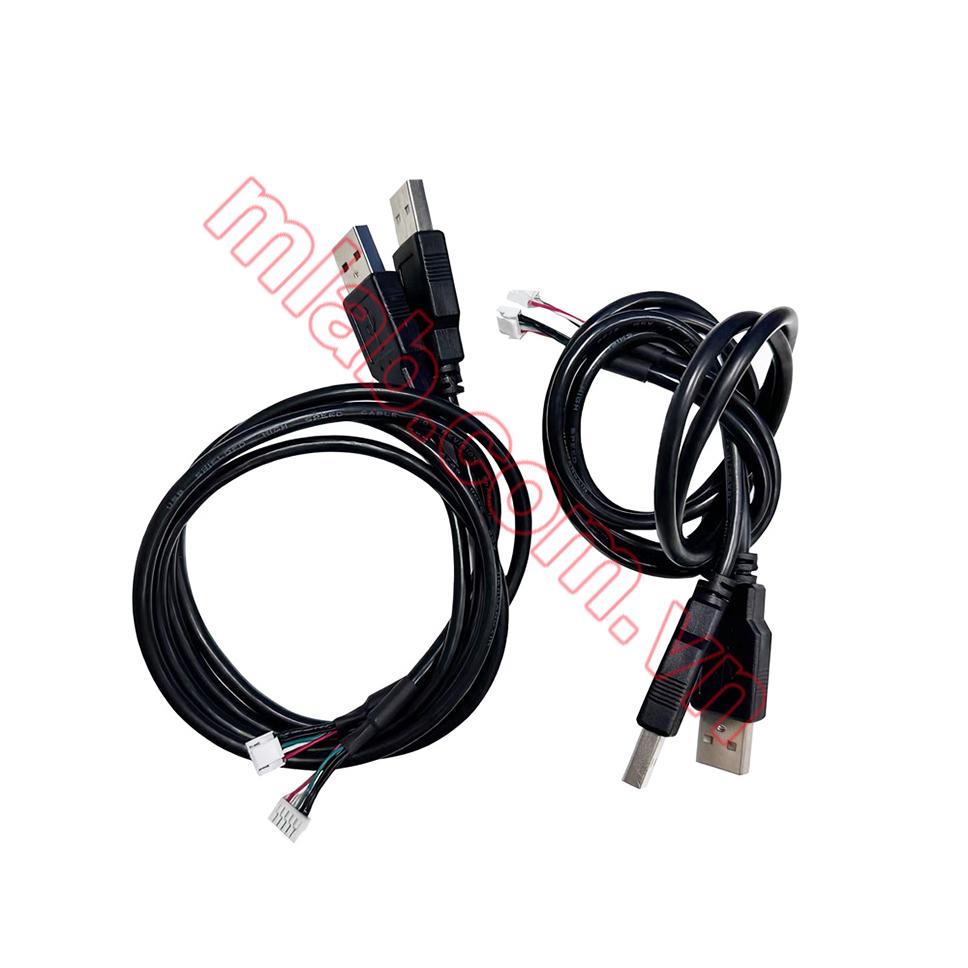

Connection interface | 5-pin 1.25mm USB2.0HIGH SPEED | Fastener | ||||
Source | 5V±5% |
| ||||
Power | ir-LED | OFF | Min 0.5W | Max 0.75W |
| |
ON | Max 1W | |||||
Light spectrum | 850nm | 650nm |
| |||
Product size (mm) | 17X70X17.7 ±5% |
| ||||
Weight | 52g±5% |
| ||||
Stabilized operating temperature (℃) | -30~70℃ |
| ||||
Storage Temperature & Humidity (℃) | -40~80℃/0~90RH |
| ||||
Product standard | USB -IF WHQL CE RoHS |
| ||||
Match with the lens | M12(3.5mm) |
| ||||
Type | ||||||
Default lens | H=82 ° V=58 ° D=90 ° (±4 ° ) | Distortio nless | ||||
Depth of field | 30CM~ ∞ |
| ||||
Support system | Windows XP sp2/vista/7/8.1/10/Mac/linux2.6.2(include UVC) |
| ||||
The USB interface | 1 | 5V | USB POWER |
| ||
Definition | 2 | DM | · | D- | ||
| 3 | DP | · | D+ | ||
| 4 | GND | · | DGND | ||
| 5 | COVER | · | Shield |
