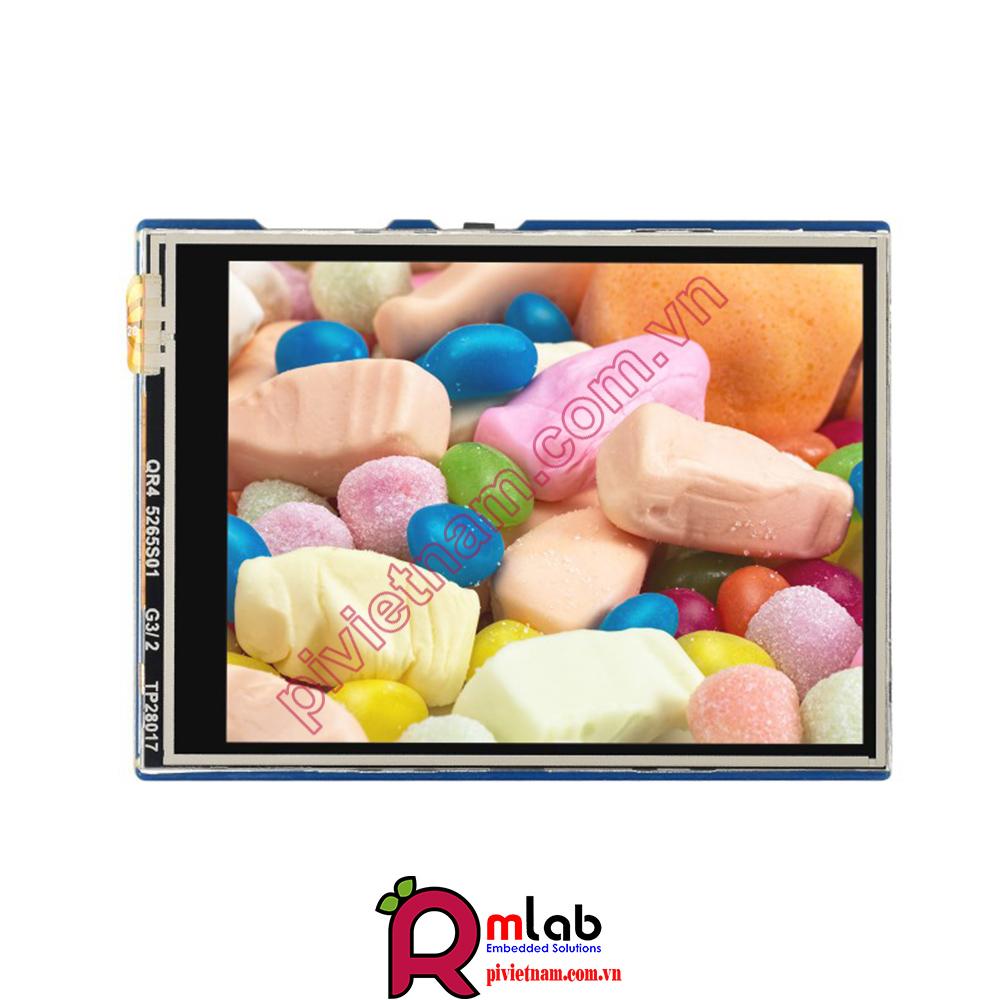

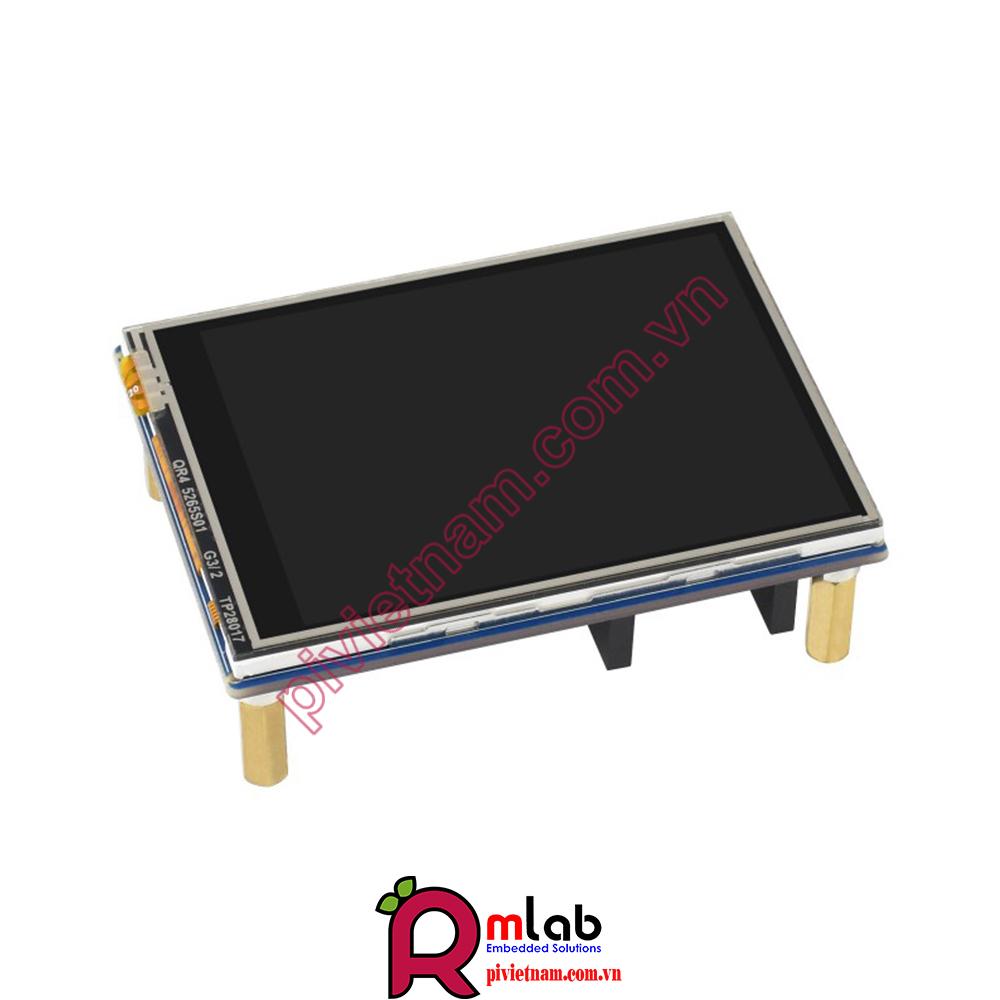

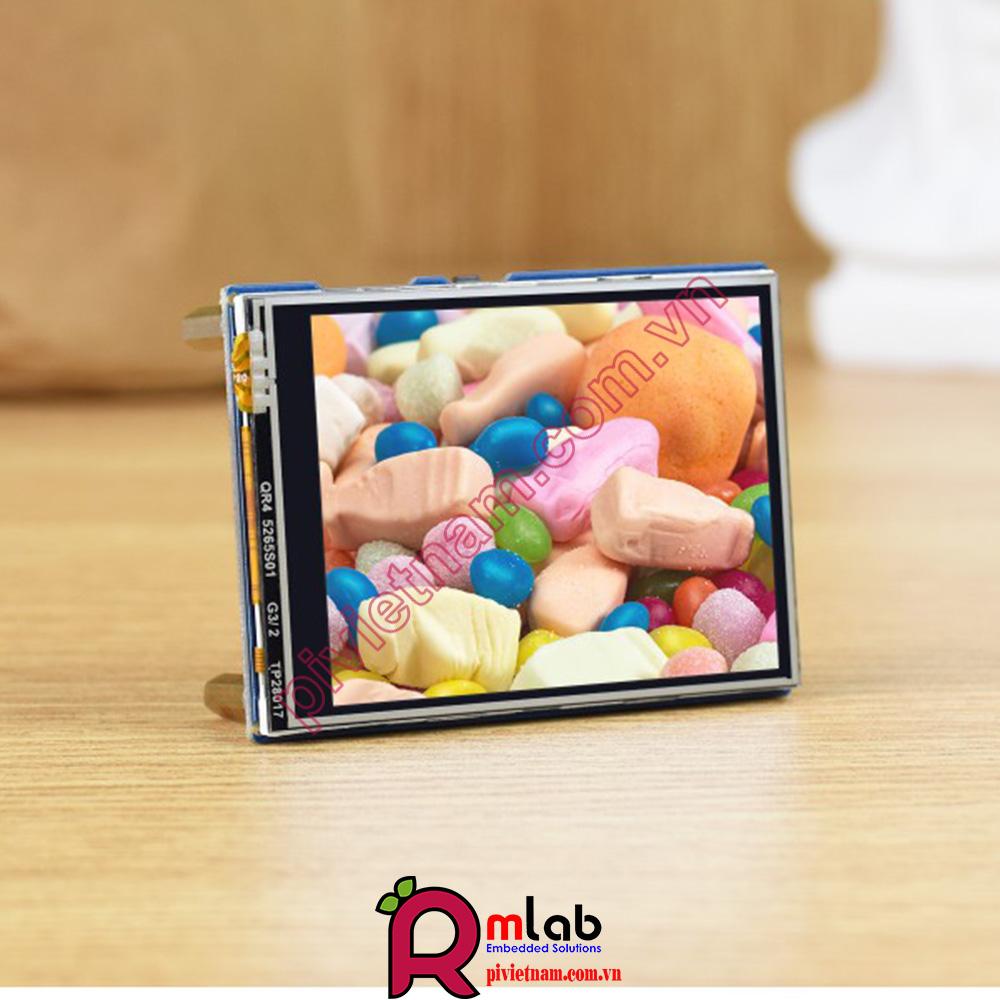

2.8" Touch Display Module For Pico


Resistive Touch Controller XPT2046, ST7789 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

ĐẶC ĐIỂM, TÍNH NĂNG

- 320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect

- Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions

- MicroSD card slot for storing images and direct displaying them easily

- Programmable backlight control, power saving

- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

THÔNG SỐ KỸ THUẬT

OPERATING VOLTAGE5VRESOLUTION320×240 pixels
COMMUNICATION INTERFACESPIDISPLAY SIZE57.60 × 43.20 mm
DISPLAY PANELIPSPIXEL SIZE0.18 × 0.18 mm
DRIVERST7789DIMENSIONS70.20 × 50.20 mm
TOUCH CONTROLLERXPT2046

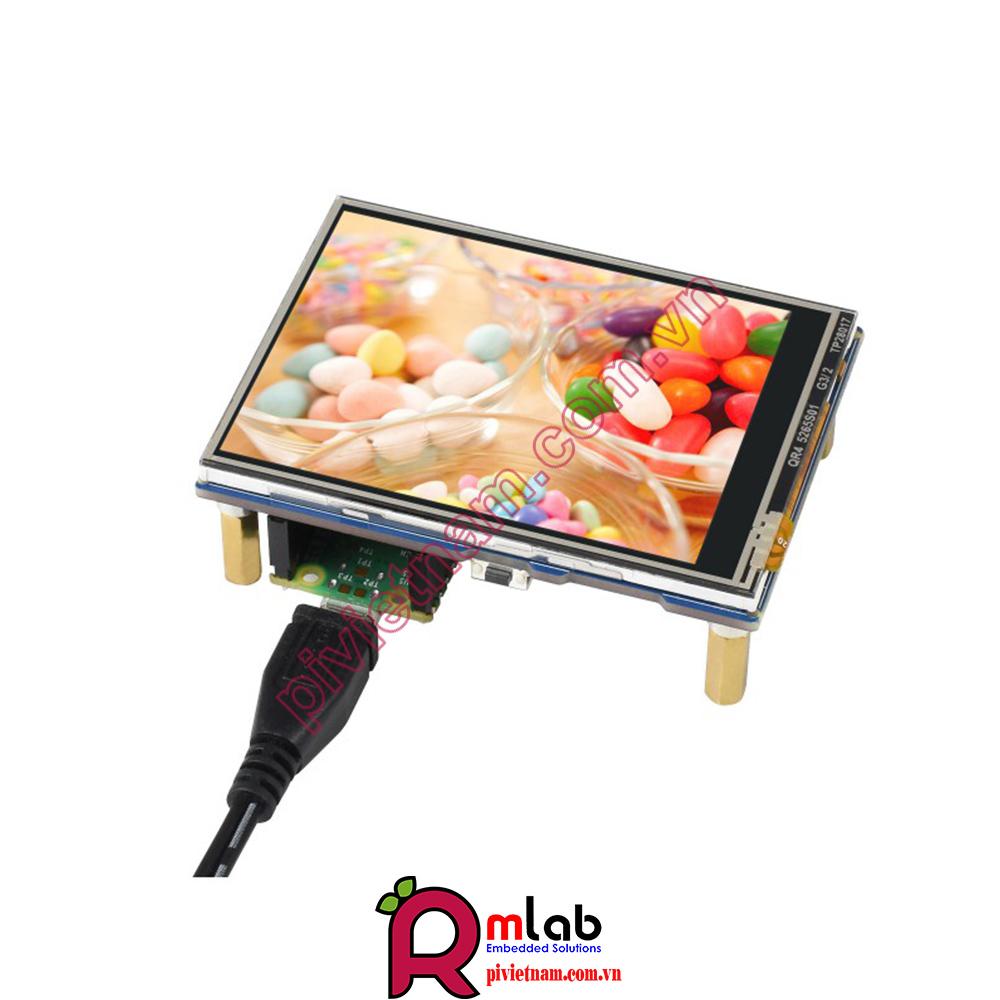

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

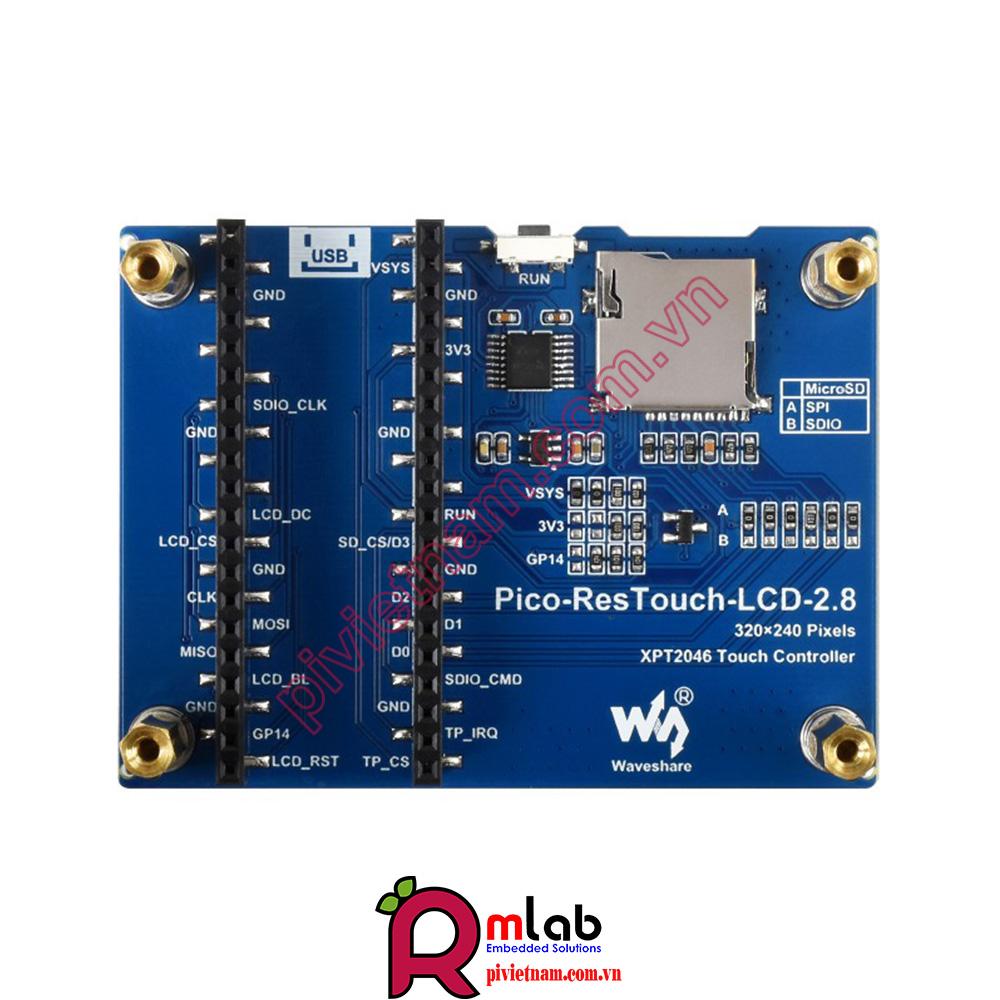

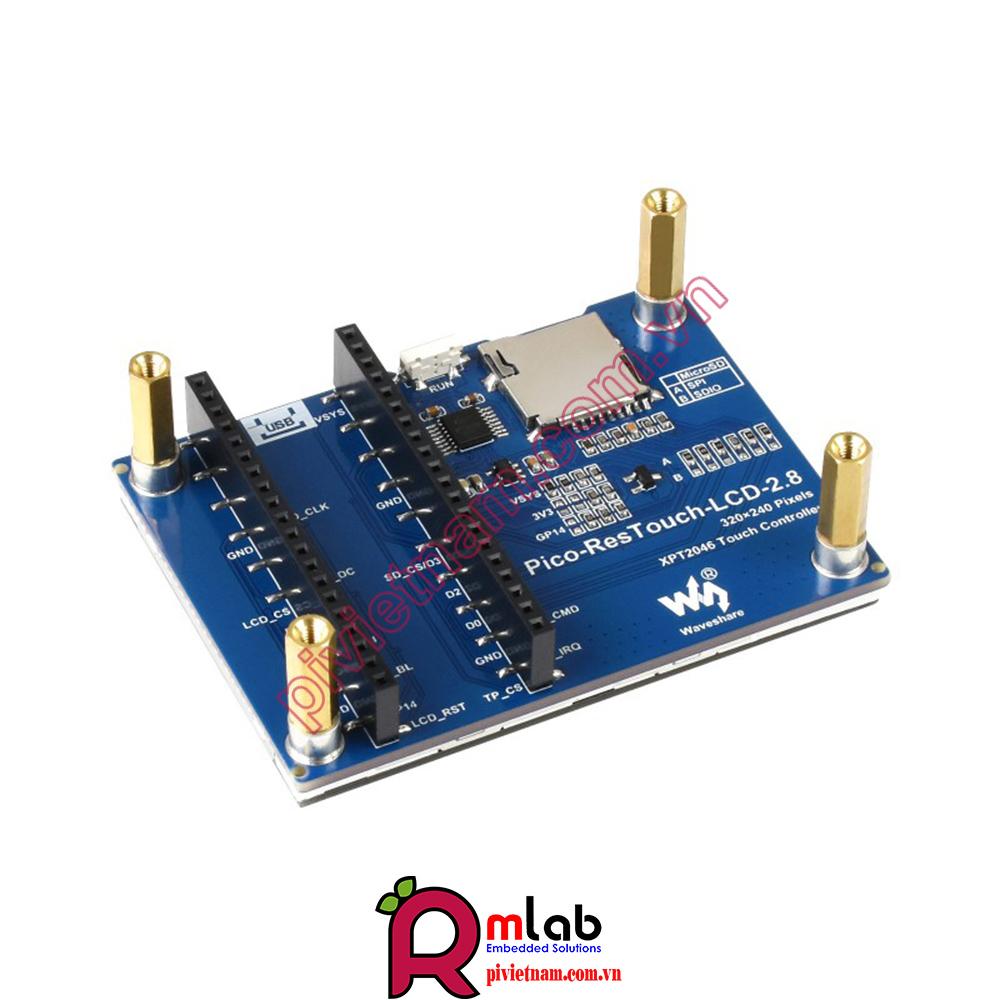

What's On Board

1. Raspberry Pi Pico header

2. MicroSD card slot

3. XPT2046
resistive touch controller

4. RT9193-33
3.3V linear voltage regulator

5. Pico reset button

Pinout Definition

Outline Dimensions
