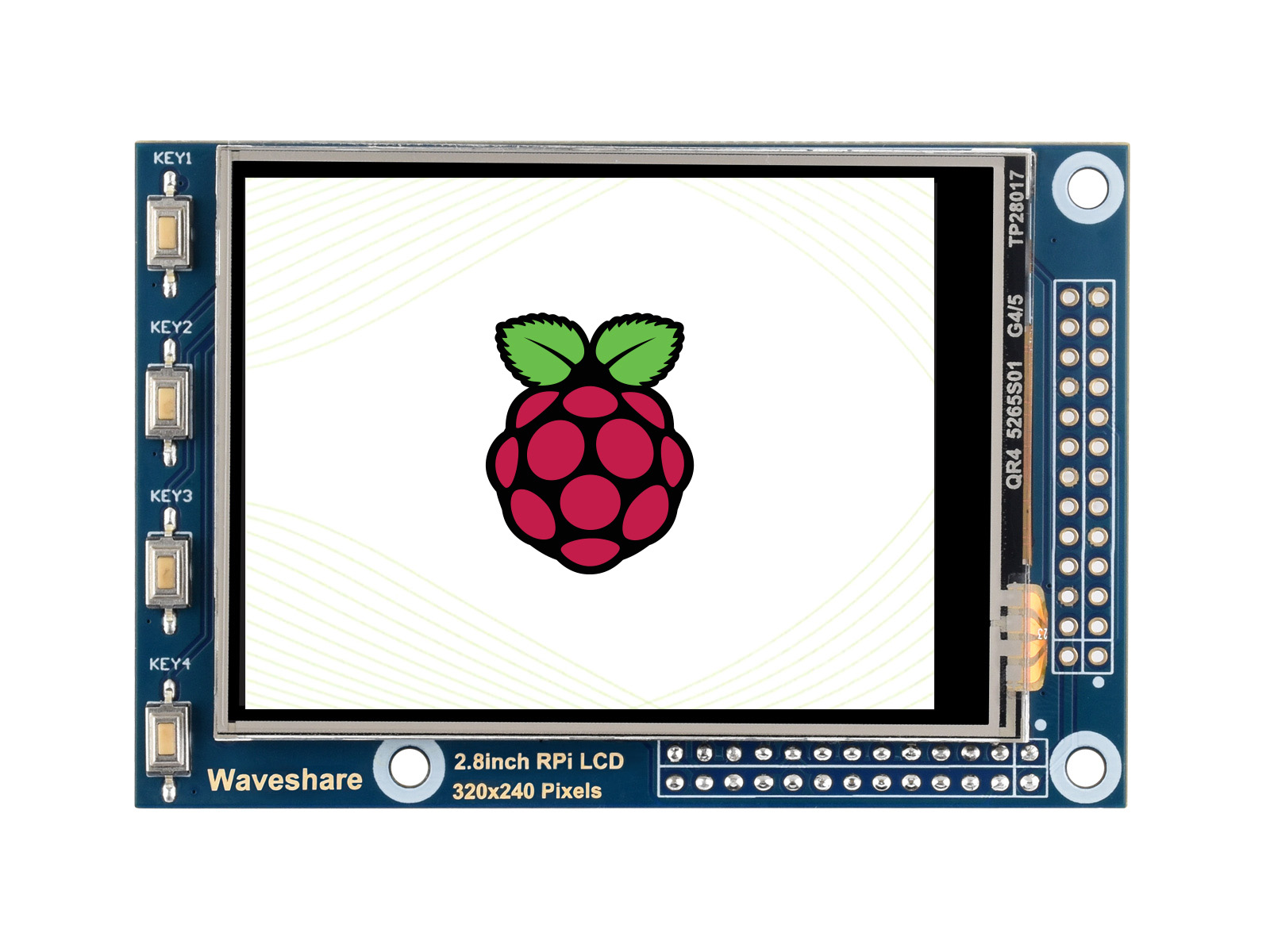

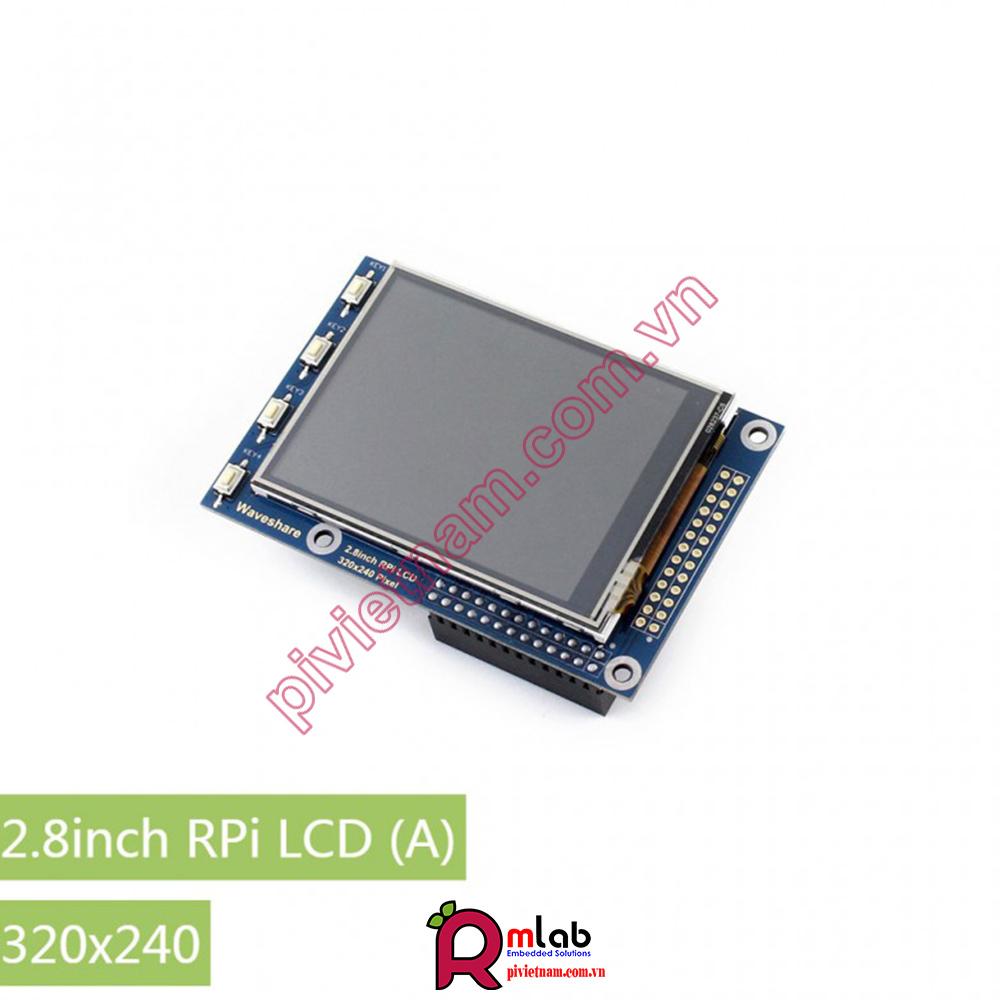

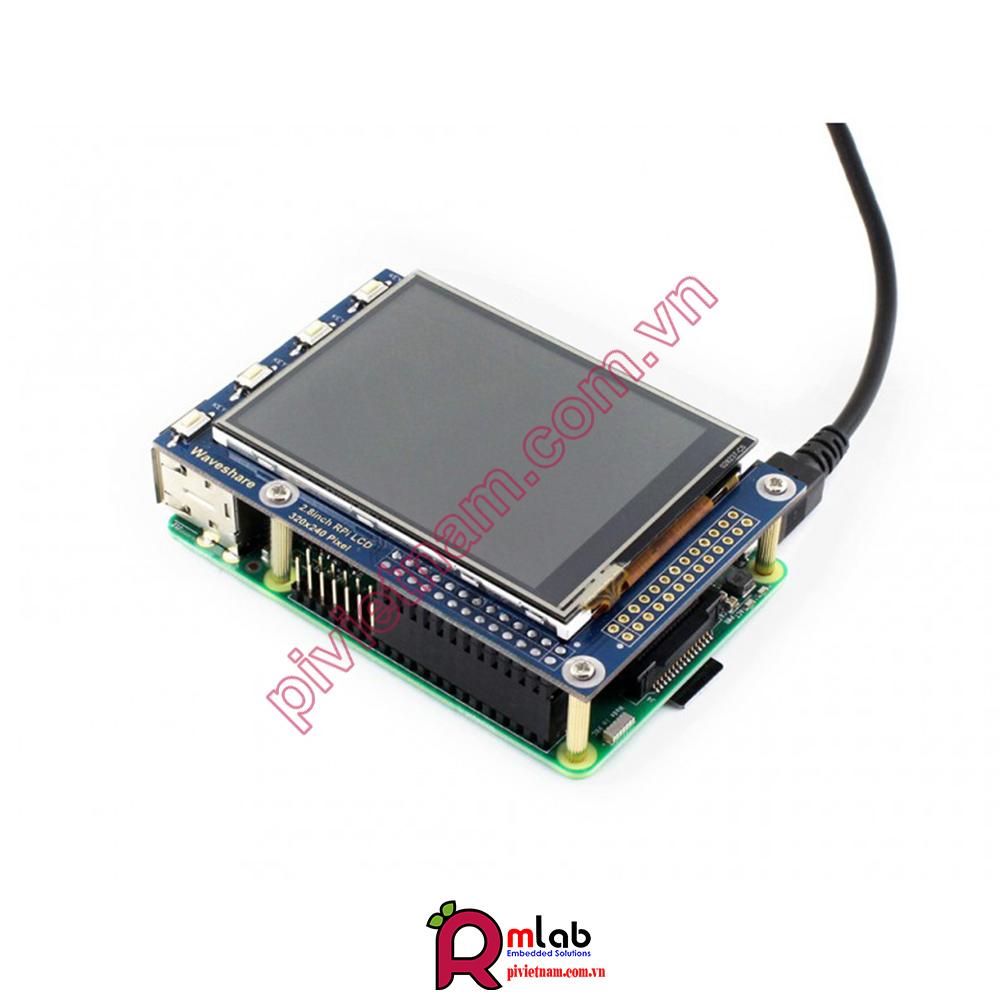

320x240, 2.8 Inch Resistive Touch Screen TFT LCD, Designed For Raspberry Pi
Features
- 320x240 hardware resolution
- Resistive touch control
- Supports any revision of Raspberry Pi (directly-pluggable)
- Drivers provided (works with your own Raspbian/Ubuntu/Kali)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display
- Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
- 4 user keys
- High quality immersion gold surface plating
- Combined with the Raspberry Pi, allows you to:
- Take photos by touching (up to 17 camera modes)

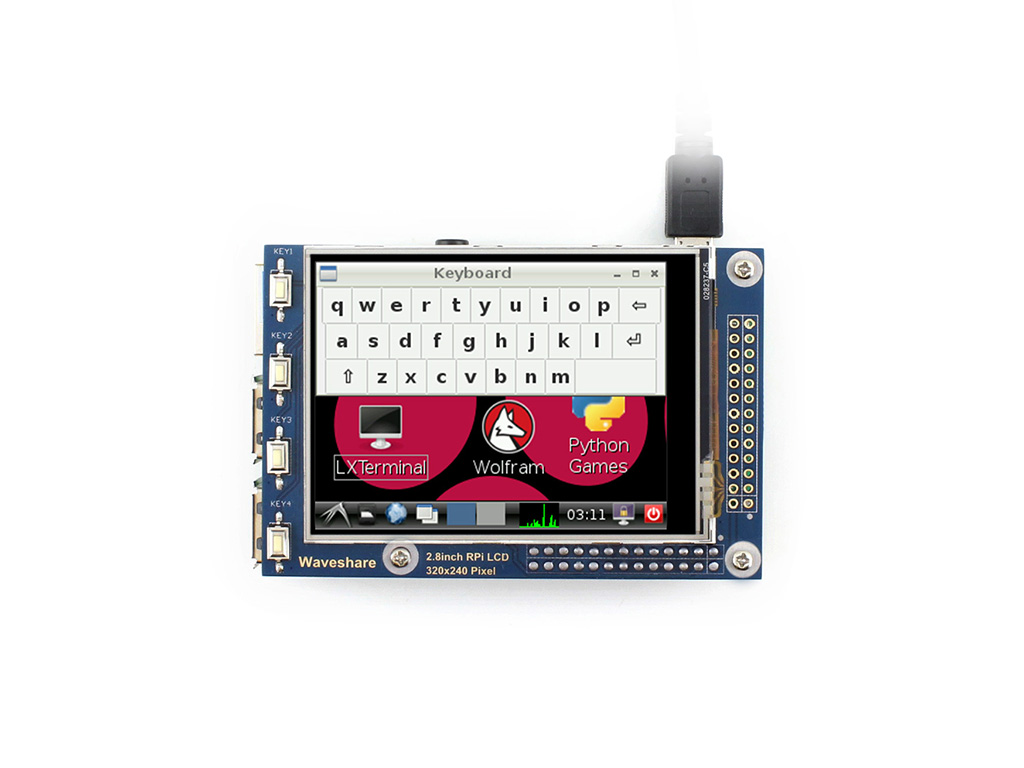

- Use software keyboard (system interaction without keyboard/mouse)
Key Parameters
LCD TYPE | TFT |
---|
LCD INTERFACE | SPI |
---|
TOUCH SCREEN TYPE | Resistive |
---|
TOUCH SCREEN CONTROLLER | XPT2046 |
---|
COLORS | 65536 |
---|
BACKLIGHT | LED |
---|
RESOLUTION | 320*240 (Pixel) |
---|
ASPECT RATIO | 4:3 |
---|
POWER CONSUMPTION | TBD |
---|
BACKLIGHT CURRENT | TBD |
---|
OPERATING TEMP. (℃) | TBD |
---|

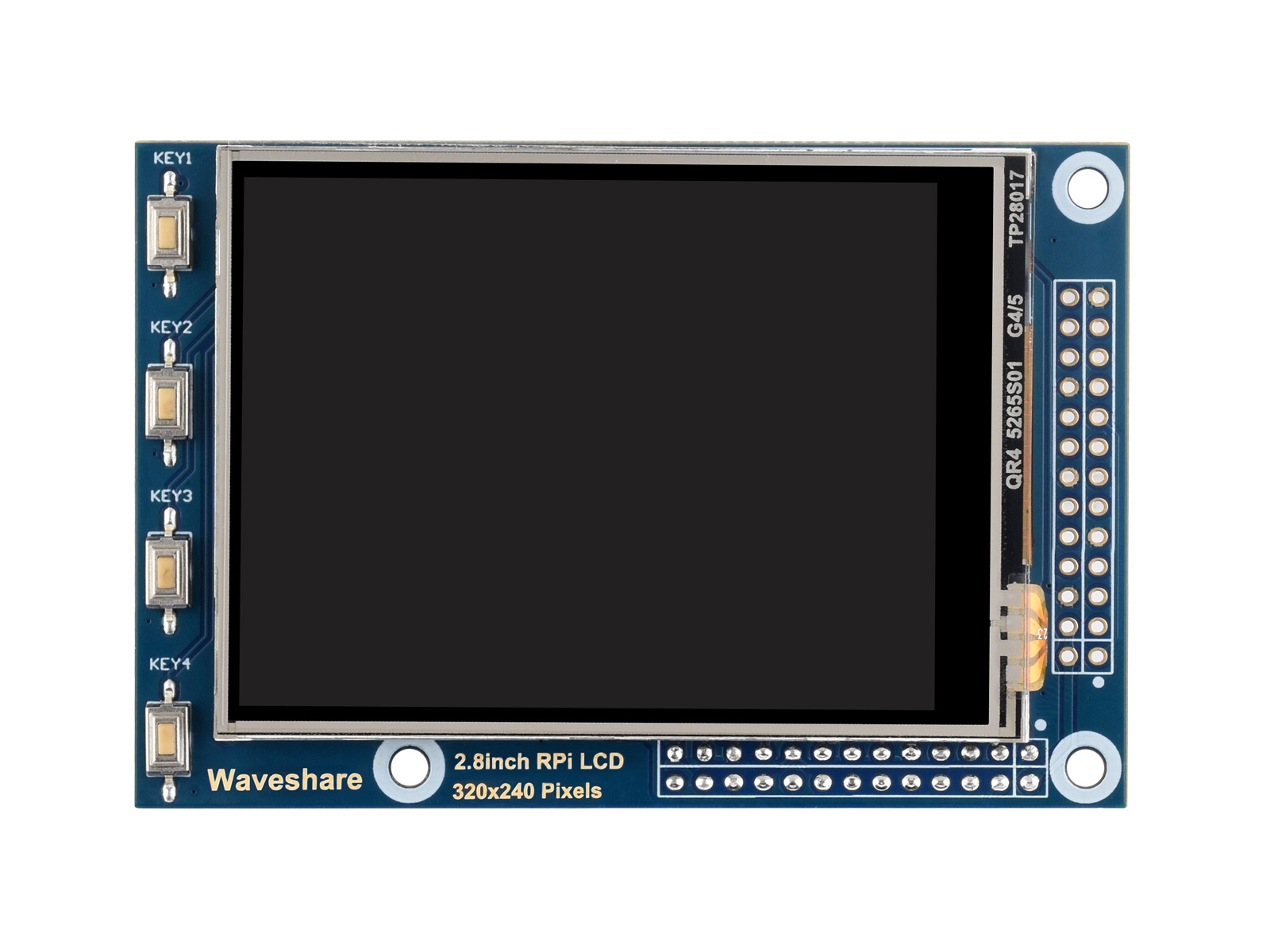

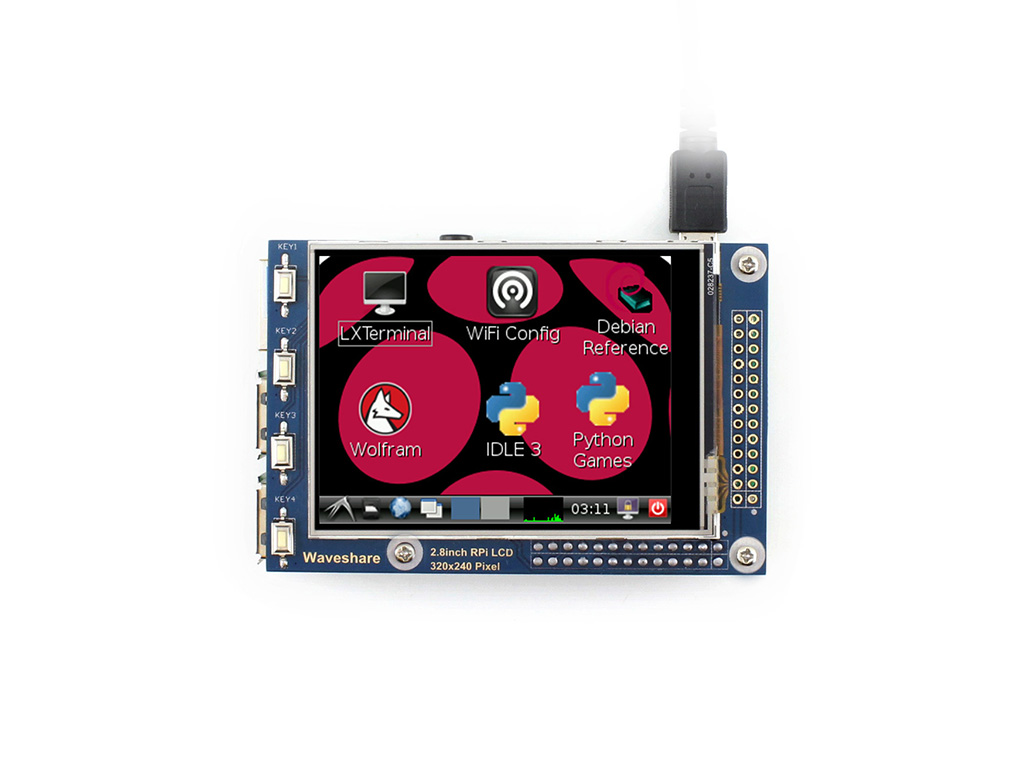

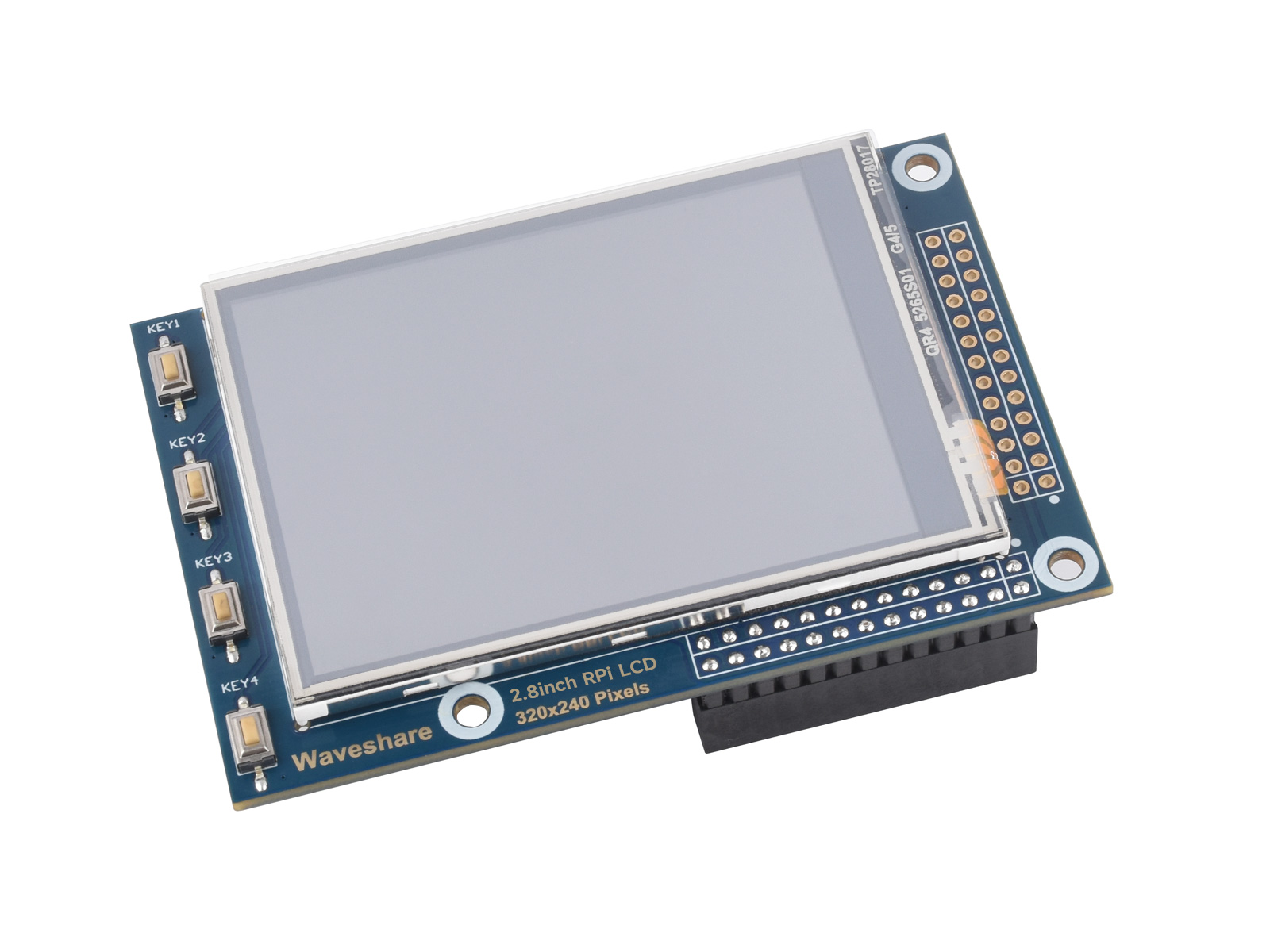

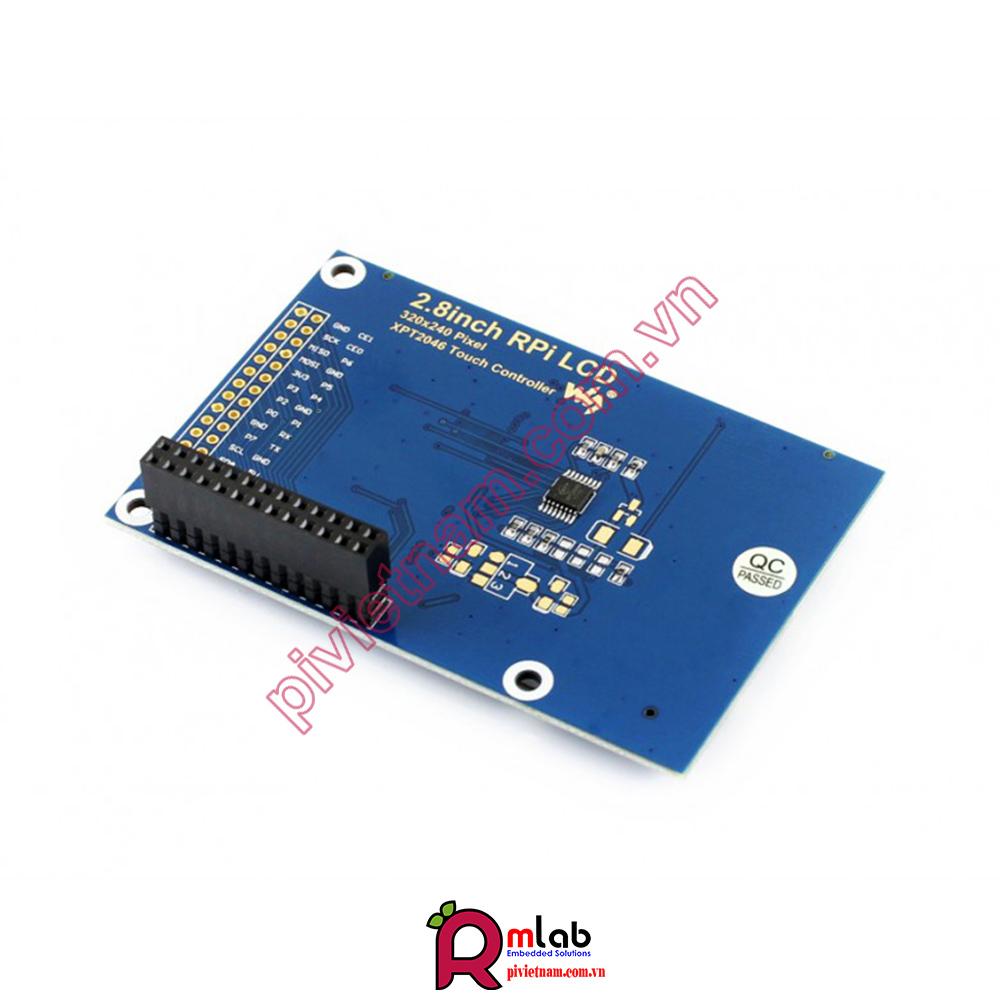

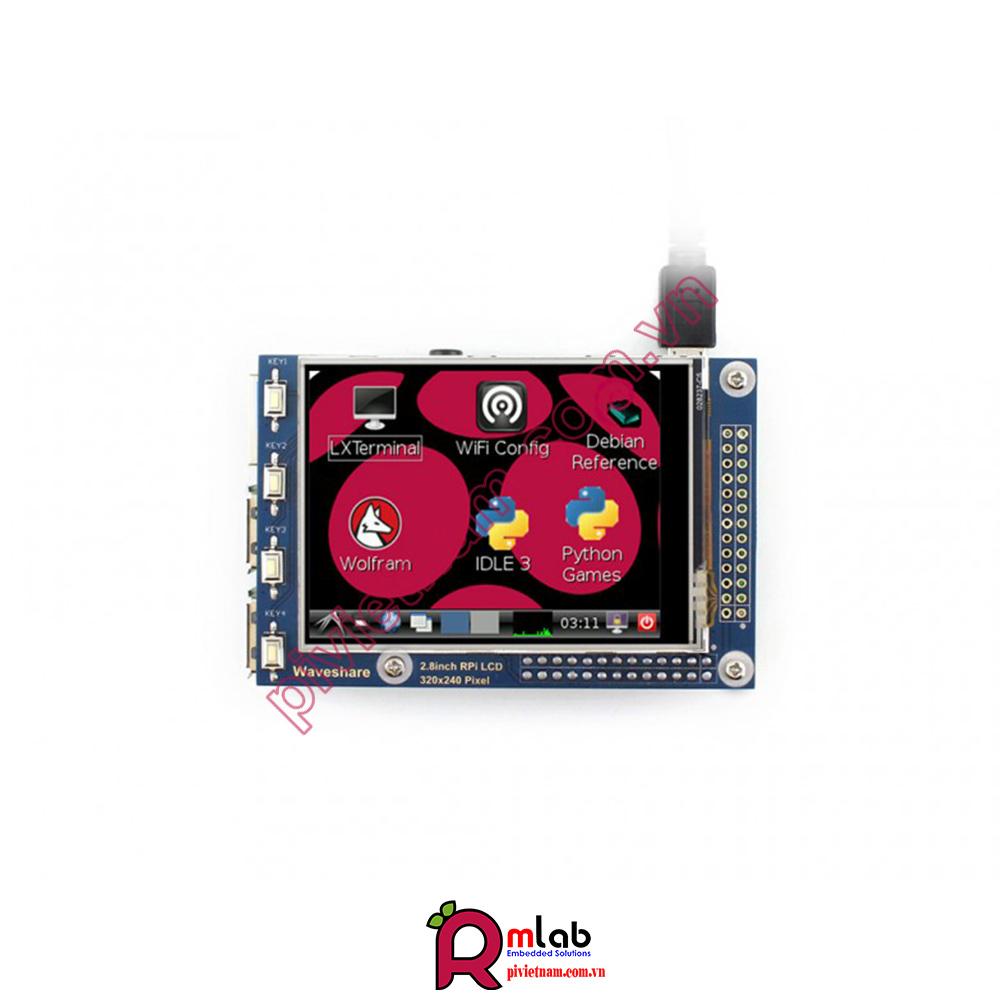

Photos

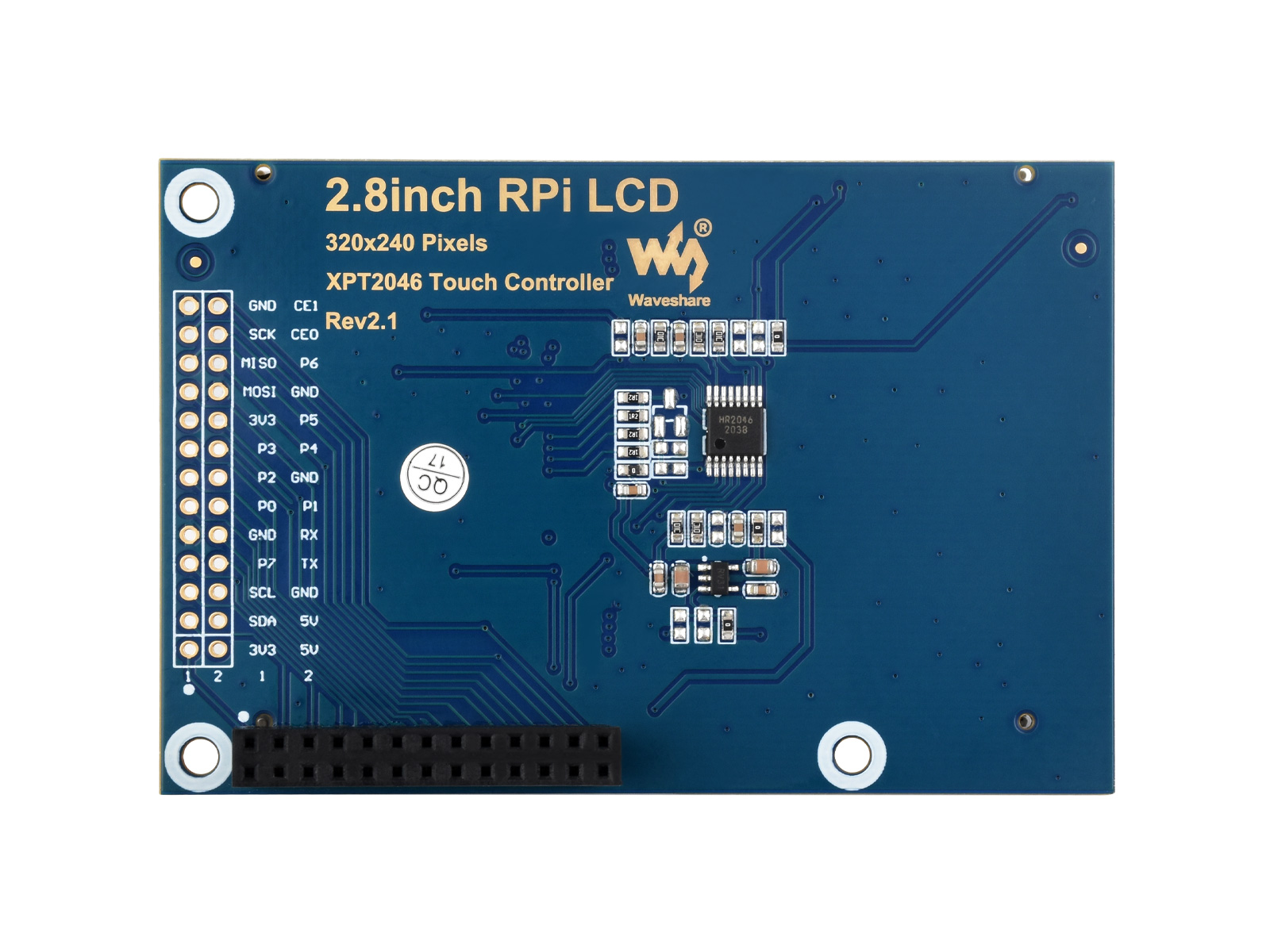

Interface
PIN NO. | SYMBOL | DESCRIPTION |
---|
1, 17 | 3.3V | Power positive (3.3V power input) |
2, 4 | 5V | Power positive (5V power input) |
3, 5, 7, 8, 10 | NC | NC |
6, 9, 14, 20, 25 | GND | Ground |
11 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
12 | KEY1 | Key |
13 | RST | Reset |
15 | LCD_RS | LCD instruction control, Instruction/Data Register selection |
16 | KEY2 | Key |
18 | KEY3 | Key |
19 | LCD_SI / TP_SI | SPI data input of LCD/Touch Panel |
21 | TP_SO | SPI data output of Touch Panel |
22 | KEY4 | Key |
23 | LCD_SCK / TP_SCK | SPI clock of LCD/Touch Panel |
24 | LCD_CS | LCD chip selection, low active |
26 | TP_CS | Touch Panel chip selection, low active |
External Dimension
Development Resources
Wiki : www.waveshare.com/wiki/2.8inch_RPi_LCD_(A)
