Cmod S7: Breadboardable Spartan-7 XILINX FPGA Module

Cmod S7: Breadboardable Spartan-7 XILINX FPGA Module

  • 410-376
3,438,000

Sản phẩm được nhập khẩu chính hãng từ DIGILENT

Hỗ trợ kỹ thuật trong quá trình sử dụng

Xuất hóa đơn VAT cho cá nhân, đơn vị có nhu cầu

Sản phẩm được bảo hành 12 tháng

Cmod S7: Breadboardable Spartan-7 XILINX FPGA Module


The Cmod, or Carrier Module, family of products is designed to offer quick, simple, and flexible integration of an FPGA into circuit design, prototyping, and learning/hobby projects.

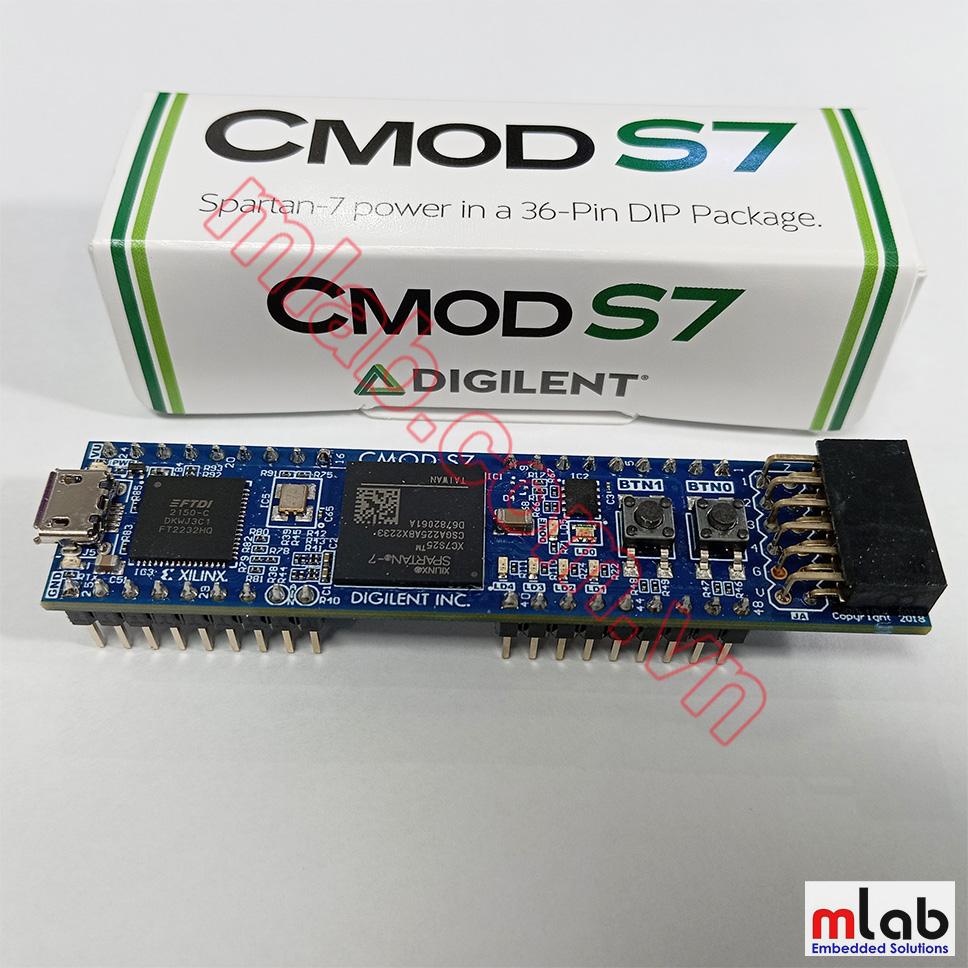

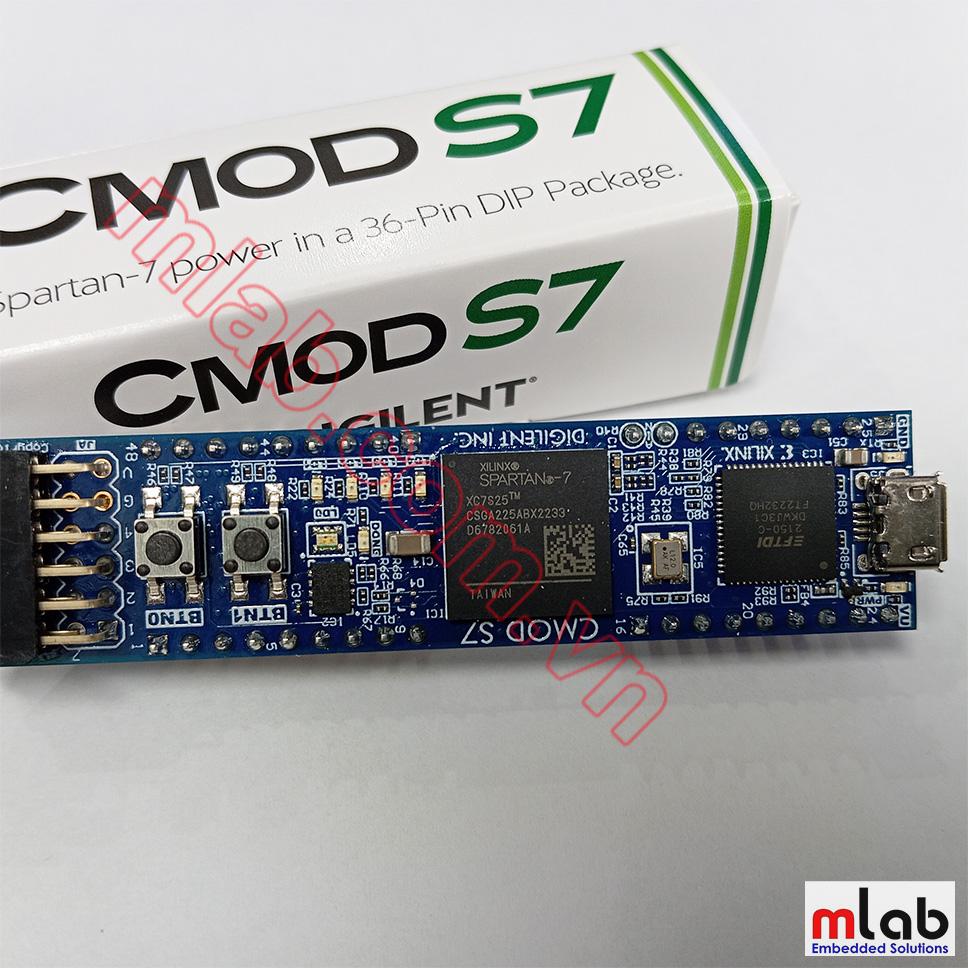

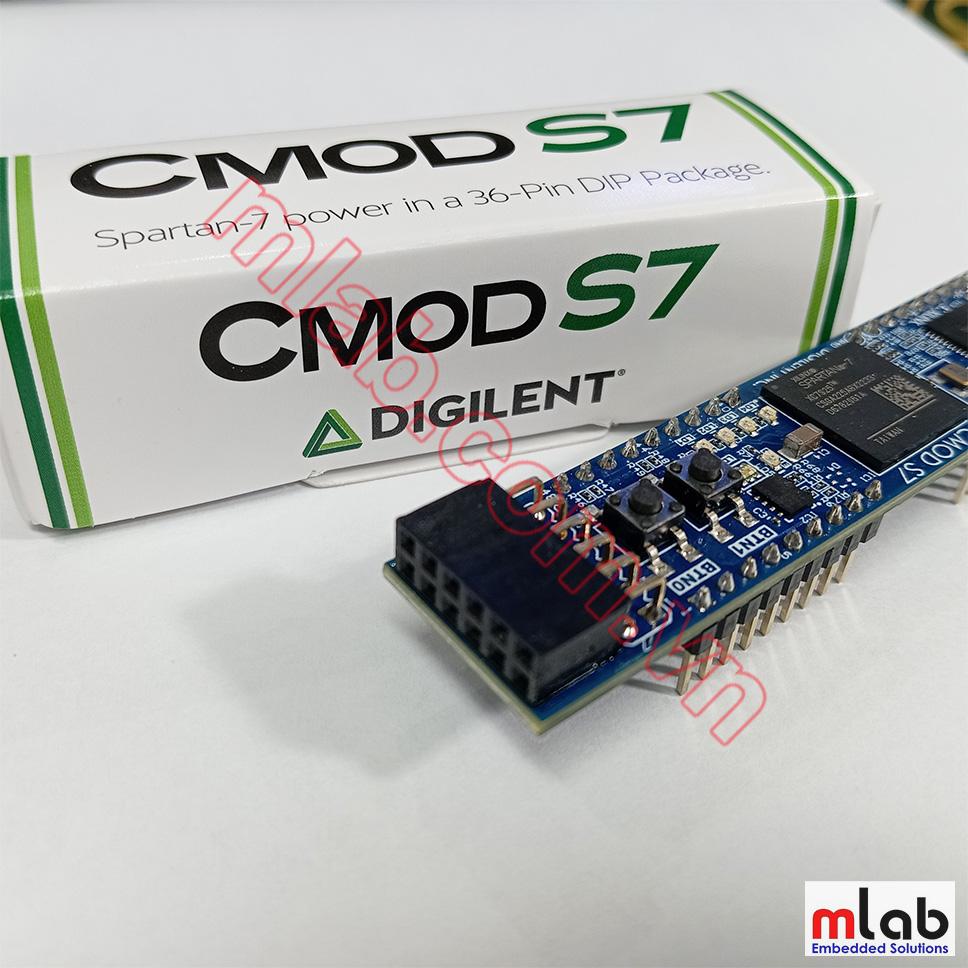

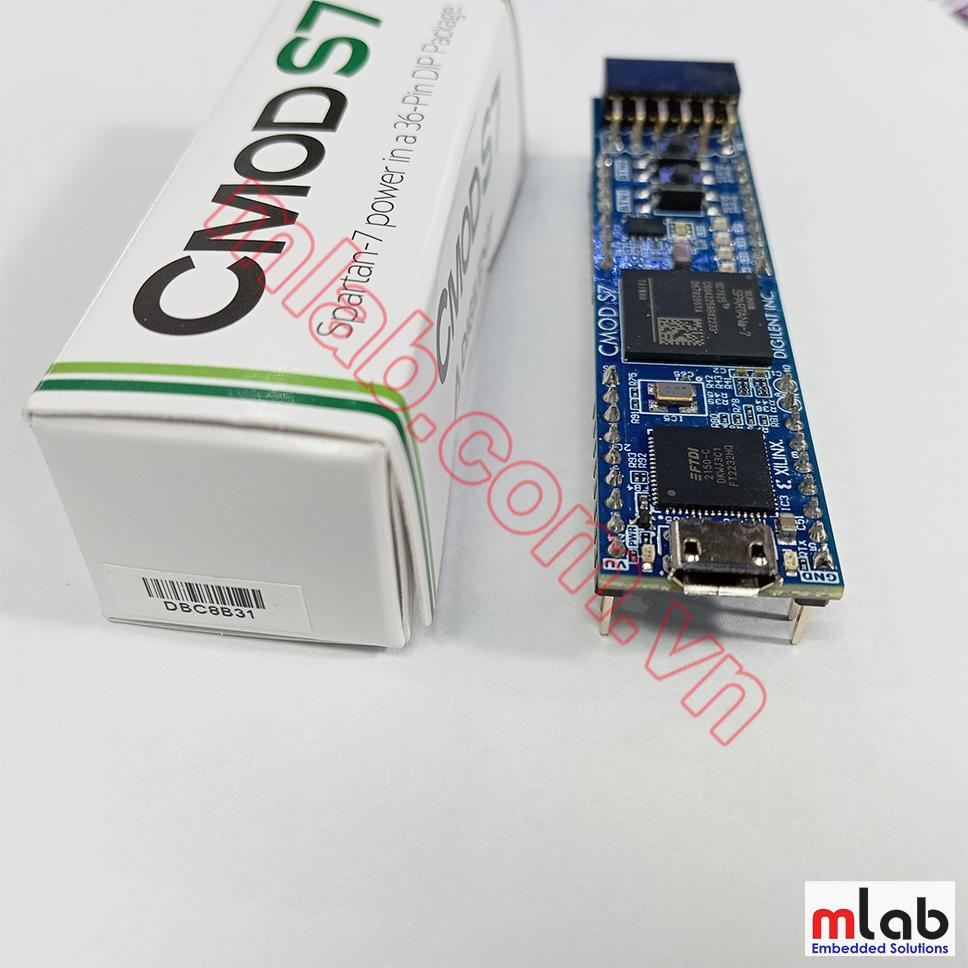

The Digilent Cmod S7 is a small, 48-pin DIP form factor board, populated with 36 pins, built around a Xilinx® Spartan®-7 FPGA that brings FPGA power and prototyping to a solderless breadboard.

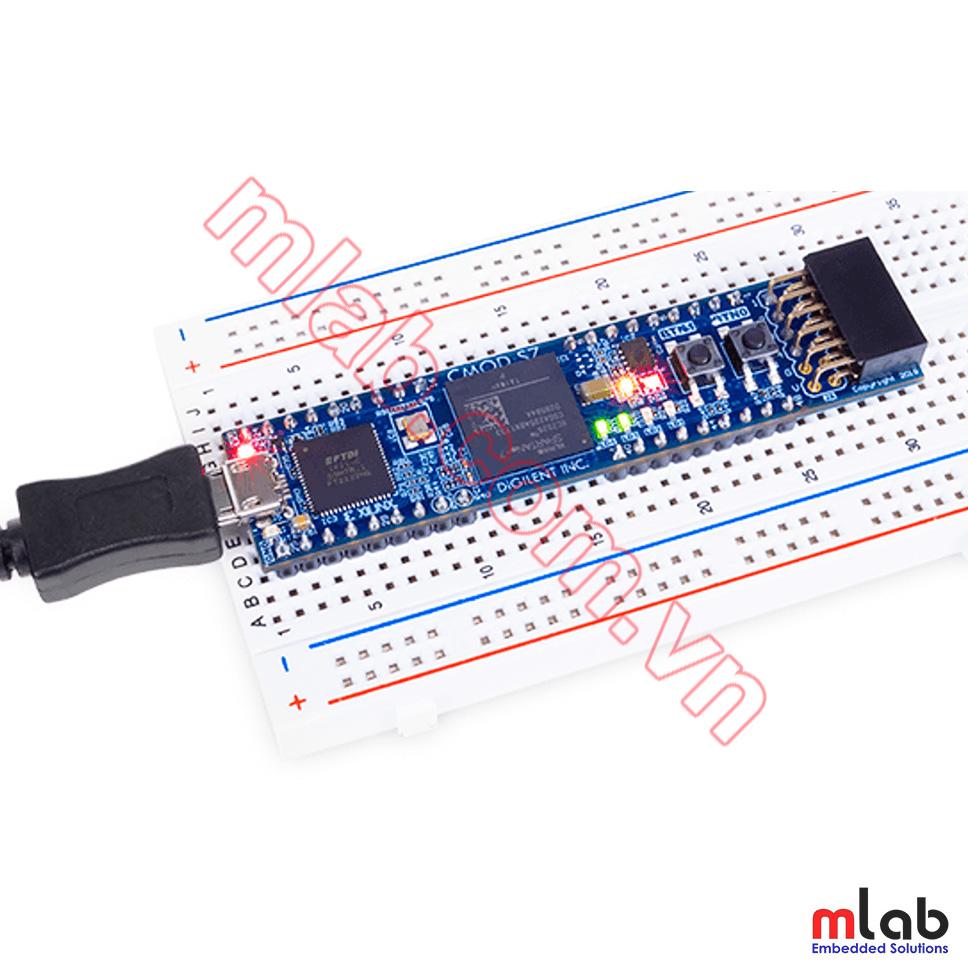

The board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod S7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 32 FPGA I/O signals, 2 FPGA analog input signals, an external power input rail, and ground that are routed to 100-mil-spaced through-hole pins, making the Cmod S7 compatible with solderless breadboards. This form factor makes the Cmod S7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7" by 3.05", it can also be loaded in a standard socket and used in embedded systems.

The Spartan-7 FPGA on the Cmod S7 fits performance into a small form-factor packaging. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.

If your design requires transceiver lines or more FPGA resources, we recommend the higher-performance Cmod A7, featuring an Artix-7 FPGA.

Guides and demos are available to help users get started quickly with the Cmod S7. These can be found through the Support Materials tab.


Features

- Xilinx Spartan-7 FPGA (XC7S25-1CSGA225C)

+ 3,650 slices containing four 6-input LUTs and 8 flip-flops
+ 1,620 Kbits of fast block RAM
+ Three clock management tile, each with a phase-locked loop and mixed-mode clock manager
+ 80 DSP slices
+ Internal clock speeds exceeding 450 MHz
+ On-chip analog-to-digital converter (XADC)
+ Programmable over JTAG and Quad-SPI Flash
- Memory
+ 4 MB Quad-SPI Flash
- Power
+ Powered from USB or 5V external supply connected to DIP pin 24 (micro USB cable NOT included)
- USB
+ USB-JTAG programming circuitry
+ USB-UART bridge
- Push-buttons and LEDs
+ 2 Buttons
+ 4 LEDs
+ 1 RGB LED
- Expansion Connectors
+ 1 Pmod connector
+  8 total FPGA I/O
+ 48-pin DIP form-factor headers
+ 36 populated pins
+ 32 total FPGA I/O
+ 2 Single-ended 0-3.3V analog inputs to XADC

Product Compliance:

- HTC: 8473301180

- ECCN: EAR99


TÀI LIỆU THAM KHẢO


+ Cmod S7 Reference Manual (LINK)
