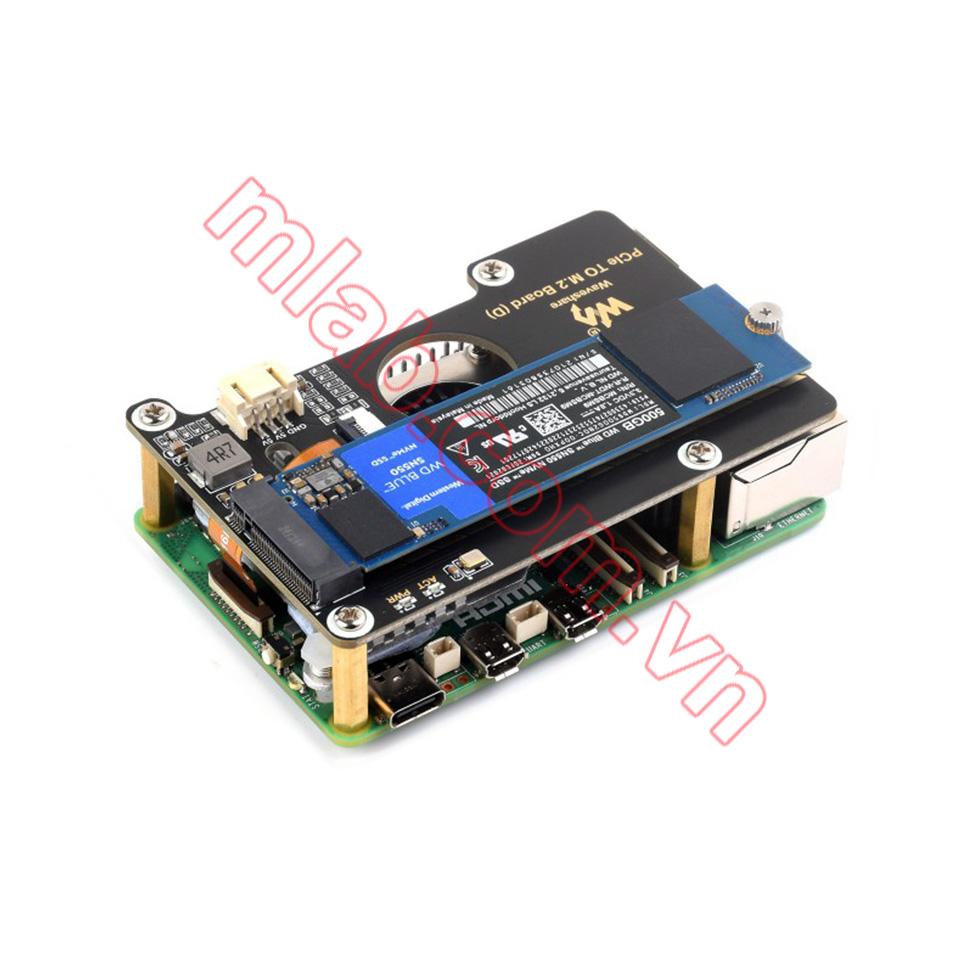

PCIe To M.2 Adapter Board (D) For Raspberry Pi 5, Compatible With 2280 / 2260 / 2242 / 2230 Size NVMe Protocol M.2 SSD, 8Gbps Data Rate, High-Speed Reading/Writing, Raspberry Pi 5 NVMe
PCIe TO M.2 Board (D)
Designed for Raspberry Pi 5
Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency
Từ 2022 MLAB có thêm website mlab.com.vn với nền tảng web mới hơn, dễ sử dụng hơn cho quý khách hàng tra cứu, đặt hàng online tại MLAB. Quý khách hàng có thể mua PCIe To M.2 Board (D) tại MLAB tại link: (link đặt hàng)

Connecting To PI5 Via 16PIN Cable
Based On 16PIN PCIe Interface Of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list
NVMe Solid State Drives Support
Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives
Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive


Note: Only supports the NVMe Protocol Solid State Drives.
Adopts Anti-Oxidation Immersion Gold Process

Improves Reading/Writing Speed Of Your Pi
Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi , Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive.

* for reference only, please refer to the Package Content for detailed part list
Two Power Supply Methods
Supports Power Supply Via PCIe Cable Or 3PIN Cable

* Note: uses PCIe cable for power supply by default, you can add 3PIN cable in cases of insufficient power

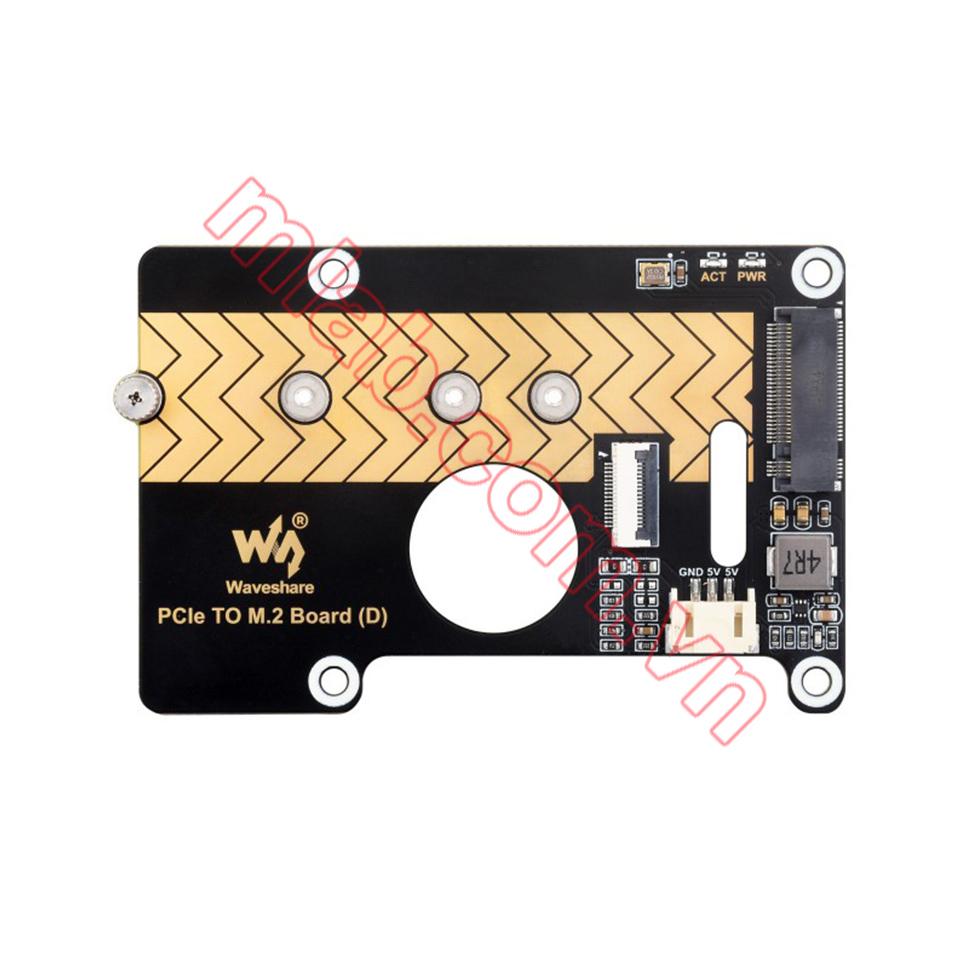

Onboard Dual LED Indicators
Easy To Monitor The Working Status

How To Install

* for reference only, please refer to the Package Content for detailed part list
Outline Dimensions
