32F746GDISCOVERY, Discovery Kit With STM32F746NG MCU

Description


+ The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontollers based on ARM® Cortex®-M7 core.

+ The discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.

+ The Arduino connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.


Key Features

STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package

+ On-board ST-LINK/V2-1 supporting USB re-enumeration capability

+ Mbed-enabled (mbed.org)

+ USB functions: virtual COM port, mass storage, debug port

+ 4.3-inch 480x272 color LCD-TFT with capacitive touch screen

+ Camera connector

SAI audio codec

+ Audio line in and line out jack

+ Stereo speaker outputs

+ Two ST MEMS microphones

SPDIF RCA input connector

+ Two pushbuttons (user and reset)

+ 128-Mbit Quad-SPI Flash memory

+ 128-Mbit SDRAM (64 Mbits accessible)

+ Connector for microSD card

+ RF-EEPROM daughterboard connector

+ USB OTG HS with Micro-AB connectors

+ USB OTG FS with Micro-AB connectors

+ Ethernet connector compliant with IEEE-802.3-2002

+ Five power supply options:

            - ST LINK/V2-1

            - USB FS connector

            - USB HS connector

            - VIN from Arduino connector

            - External 5 V from connector

+ Power supply output for external applications: 3.3 V or 5 V

+ Arduino Uno V3 connectors

+ Comprehensive free software including a variety of examples, part of STM32Cube package

+ Supported by a wide choice of integrated development environments


STM32F746G-DISCO: TOP LAYOUT

STM32F746G-DISCO what's onboard
STM32F746G-DISCO: BOTTOM LAYOUT

STM32F746G-DISCO what's onboard

Photos


STM32F746G-DISCO evaluation development board

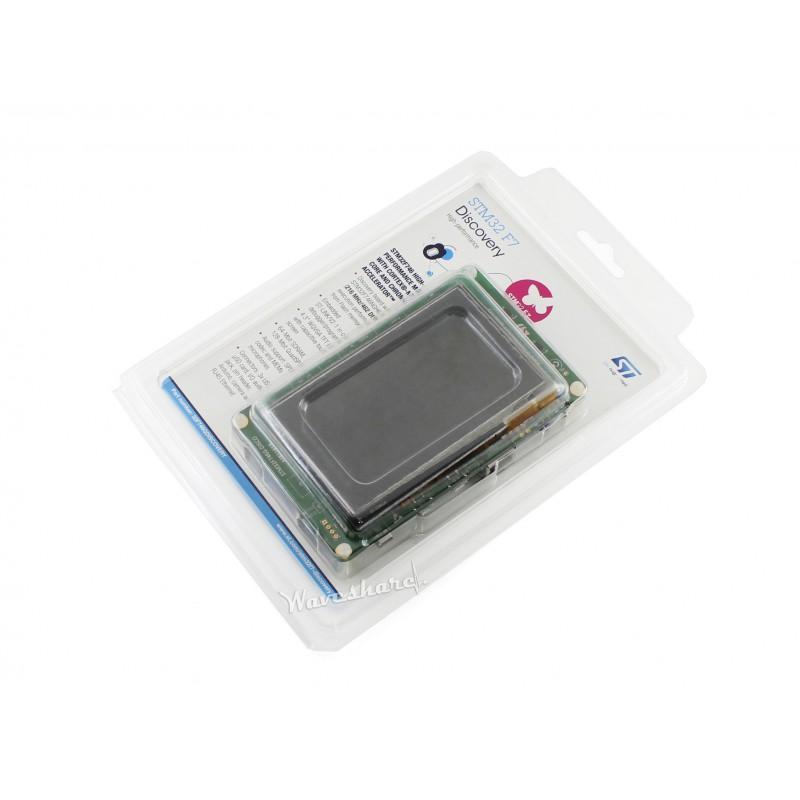

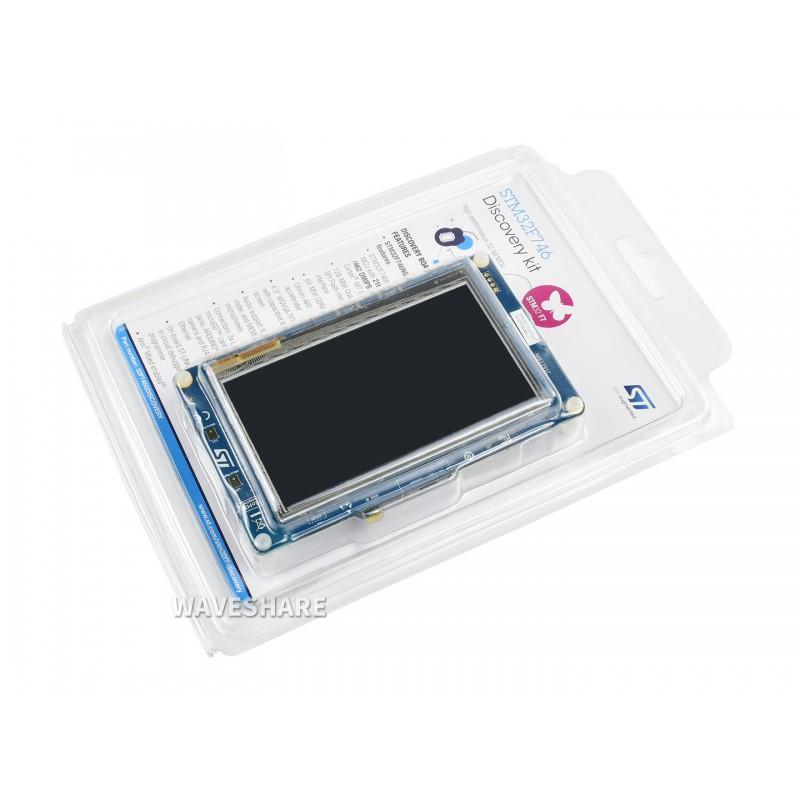

STM32F746G-DISCO Packaging
STM32F746G-DISCO evaluation development board
STM32F746G-DISCO Packaging Back View
STM32F746G-DISCO evaluation development board

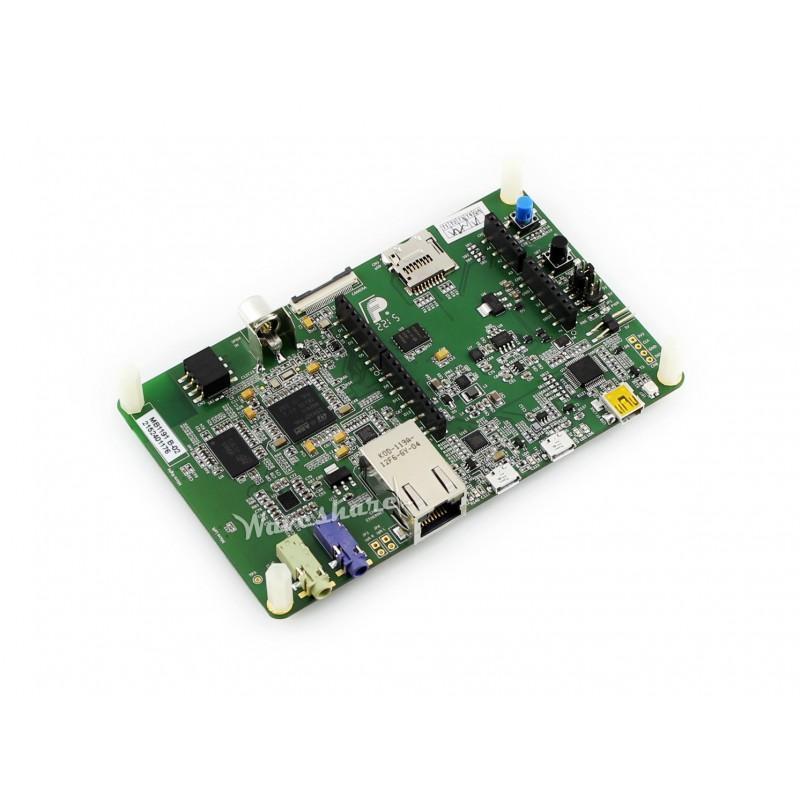

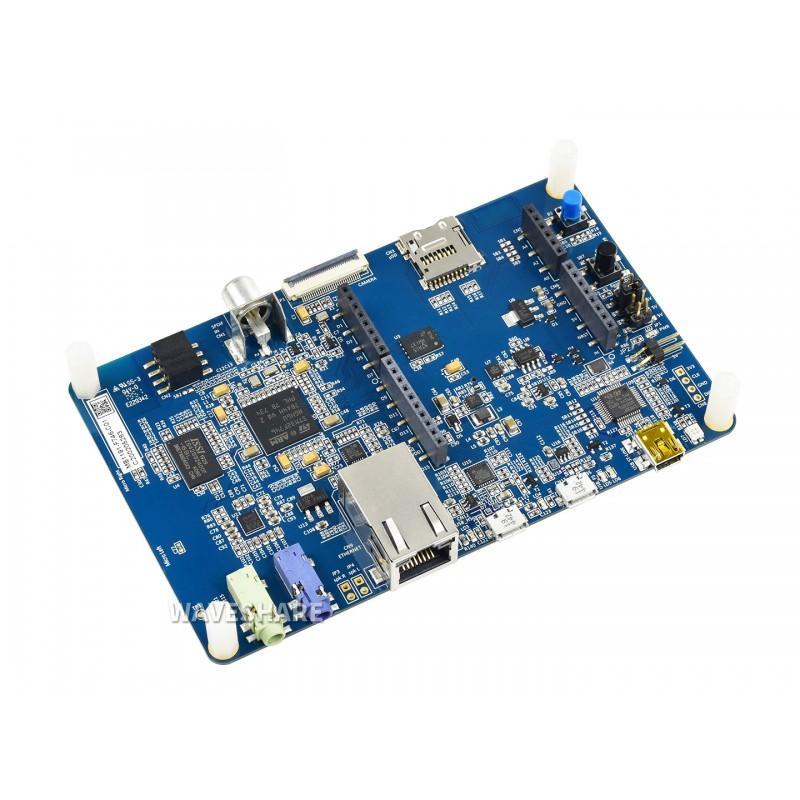

32F746GDISCOVERY Base Board
STM32F746G-DISCO evaluation development board

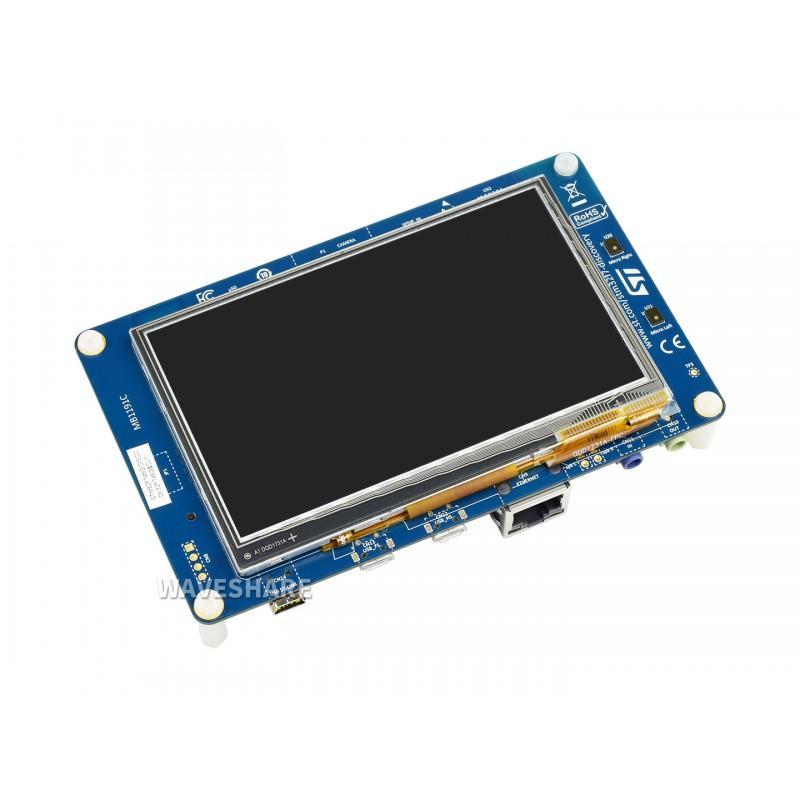

32F746GDISCOVERY Development Board
STM32F746G-DISCO evaluation development board

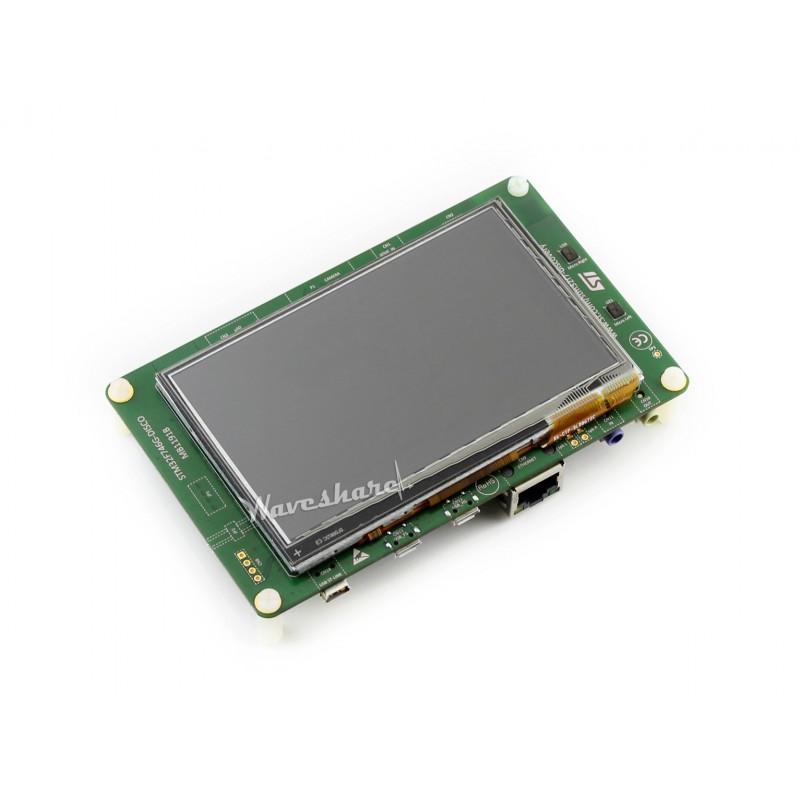

32F746GDISCOVERY
STM32F746G-DISCO evaluation development board

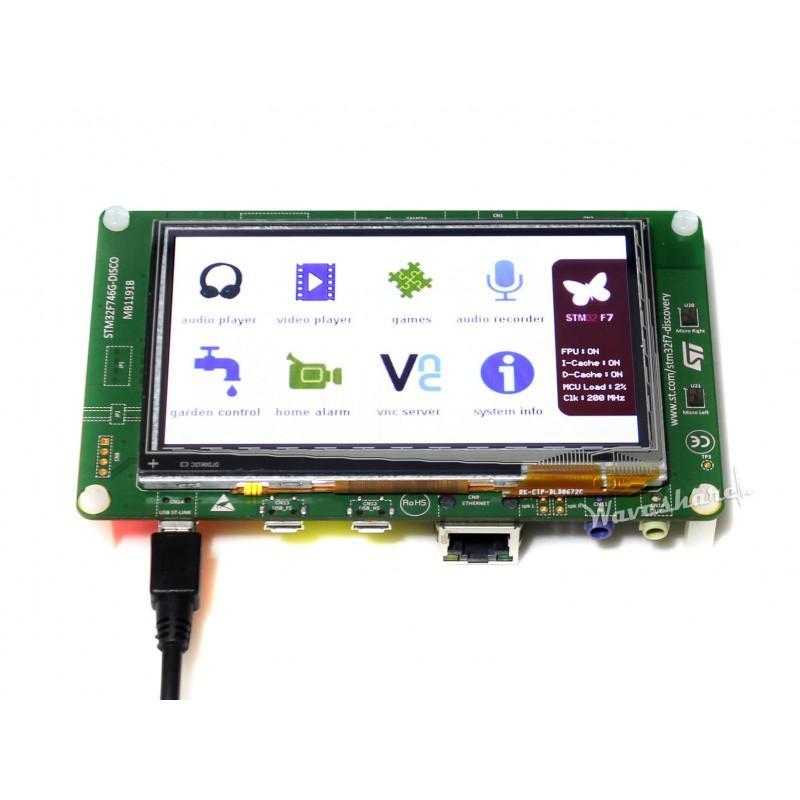

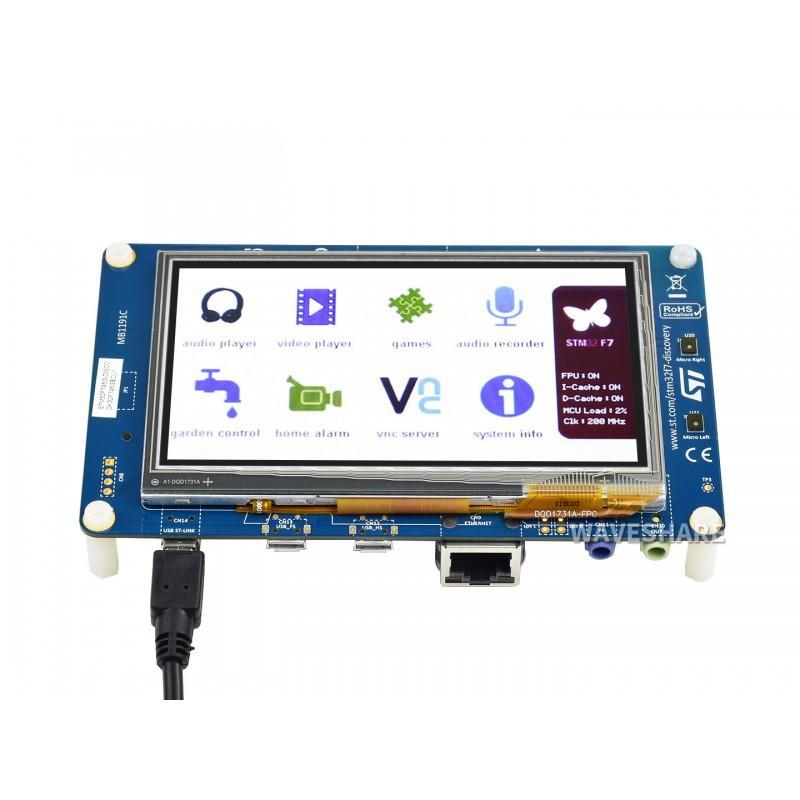

32F746GDISCOVERY Displaying

Dimensions


STM32F746G-DISCO board dimensions


Development Resources

Wiki : www.waveshare.com/wiki/STM32F746G-DISCO
