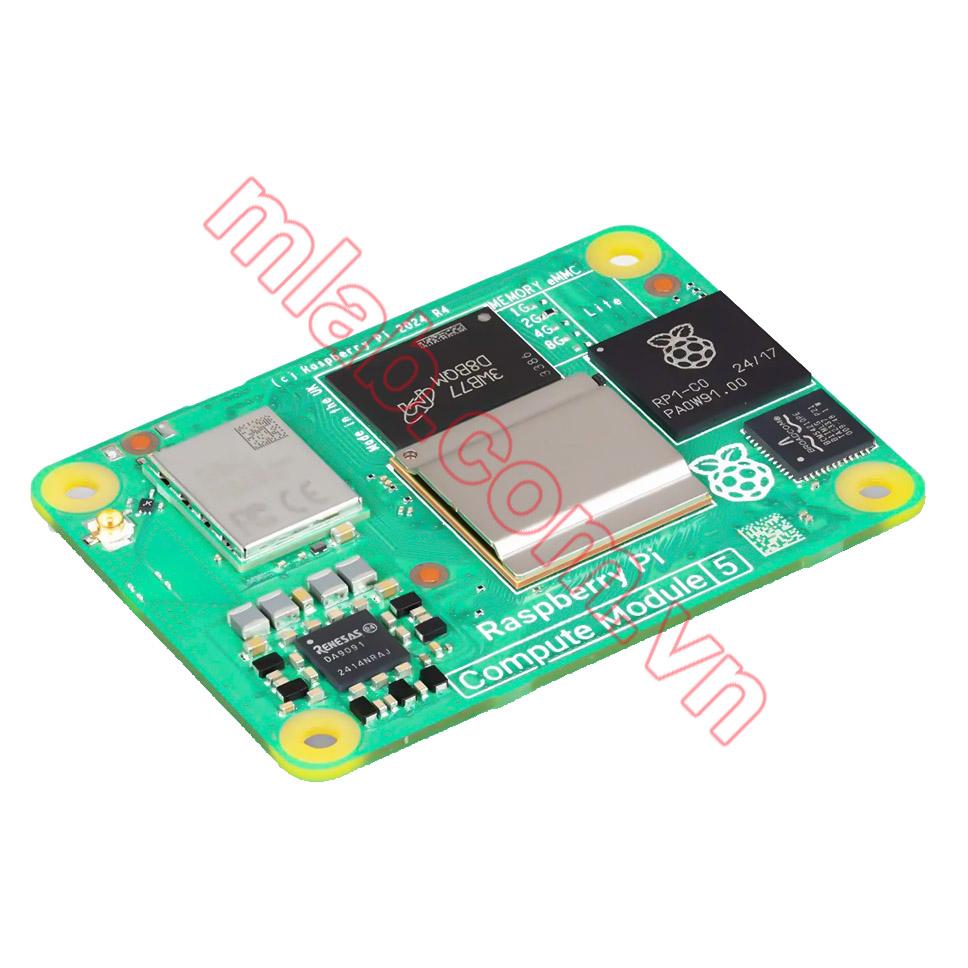

Raspberry Pi Compute Module 5
The new standard for embedded computing.
Leverage Raspberry Pi 5’s powerful hardware and efficient software stack in your own custom embedded systems.
Raspberry Pi Compute Module 5 is a system on module that delivers the power of Raspberry Pi 5 in a form factor ideal for embedded applications. Featuring a quad-core Arm Cortex-A76 processor, dual 4Kp60 HDMI output, Gigabit Ethernet, optional fully-certified wireless module providing Wi-Fi® and Bluetooth connectivity, and a variety of RAM and eMMC flash options, Compute Module 5 enables you to leverage Raspberry Pi 5’s powerful hardware and optimised software stack in your own custom systems and form factors.
In comparison with its predecessor, Compute Module 5 features additional I/O interfaces, allowing even more flexibility and providing a greater breadth of options for product and application design. For cost-sensitive applications, Compute Module 5 is also available without eMMC flash.
Newly upgraded, more powerful
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Upgraded processor, powerful performance
BCM2712 processor, quad-core Cortex-A76 64-bit SoC, more powerful performance
High speed WIFI and Bluetooth
Dual-band WIFI and Bluetooth5.0 BLE radio module, surf the web anywhere
External antenna support
Supports either PCB trace antenna or external antenna, suitable for industrial applications
Specifications
| Processor | Broadcom BCM2712 quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz |
|---|---|
| Memory | 2GB, 4GB, 8GB or 16GB LPDDR4-4267 SDRAM (depending on variant) |
| Storage | 0GB (Lite), 8GB, 16GB, 32GB or 64GB eMMC Flash (depending on variant), up to 200 Mbps data rate |
| Connectivity | Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE, with onboard and external antenna options |
| Onboard Gigabit Ethernet PHY supporting IEEE1588 | |
| 1 × USB 2.0 interface | |
| 2 × USB 3.2 Gen1 interface | |
| 1 × PCIe Gen 2 x1 interface | |
| 28 GPIO signals | |
| SD card interface for SD card (for use only with Compute Module 5 variants without eMMC) | |
| Video | 2 × HDMI interface (up to 4Kp60 supported) |
| 2 × 4-lane MIPI interface | |
| Multimedia | 4Kp60 HEVC decoder |
| OpenGL ES 3.1 graphics, Vulkan 1.3 | |
| Input power | 5V DC |
| RTC | Built-in Real-time clock (RTC), powered from external battery |
| Operating voltage | -20°C ~ 85°C ambient |
| Dimensions | 55 × 40 × 4.7mm |
Onboard Resources
Similar to the CM4, the CM5 has an option for cost-sensitive applications to be supplied without the eMMC fitted; this version is called the CM5 Lite. The form factor of the new CM5 and CM5 Lite is compatible with CM4. CM5 has the same board dimension, 4 x mounting hole, and 2x 100-pin high-density connector at the bottom.
Here is a comparison table of the new Raspberry Pi CM5 vs CM4:
Raspberry Pi has also launched an evaluation board for the CM5 - Raspberry Pi CM5 IO Board:
