Dual Gigabit Ethernet Base Board For RPI CM4
Mini, Practical, And Neat
Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
Từ 2022 MLAB có thêm website mlab.com.vn với nền tảng web mới hơn, dễ sử dụng hơn cho quý khách hàng tra cứu, đặt hàng online tại MLAB. Quý khách hàng có thể mua Dual Gigabit Ethernet Mini Box Designed for RPI CM4 tại MLAB tại link: (link đặt hàng)
Dual Gigabit Ethernet Mini-Computer Kit
In addition to the Dual Gigabit Ethernet Base Board, it is equipped with an Aluminum Alloy case, fan, and power supply adapter
Optional Black Metal Case
Better Protection For The Base Board, Comes With a Cooling Fan For Efficient Heat Dissipation
Specifications
| CM4 SOCKET | suitable for all variants of Compute Module 4 |
|---|---|
| NETWORKING | Dual Gigabit Ethernet RJ45 connector |
| USB | USB 2.0 Port |
| PIN HEADER | Raspberry Pi 40PIN GPIO header |
| STORAGE | TF card socket for Compute Module 4 Lite (without eMMC) variants |
| FAN HEADER | 4-wire SH1.0 port, allows speed adjustment and measurement, 5V |
| POWER INPUT | 5V, Type-C interface |
| DIMENSIONS | 55.0 × 68.0mm |
Connecting With Compute Module 4
Standard CM4 Socket And 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module
*** for reference only, CM4 is NOT included.

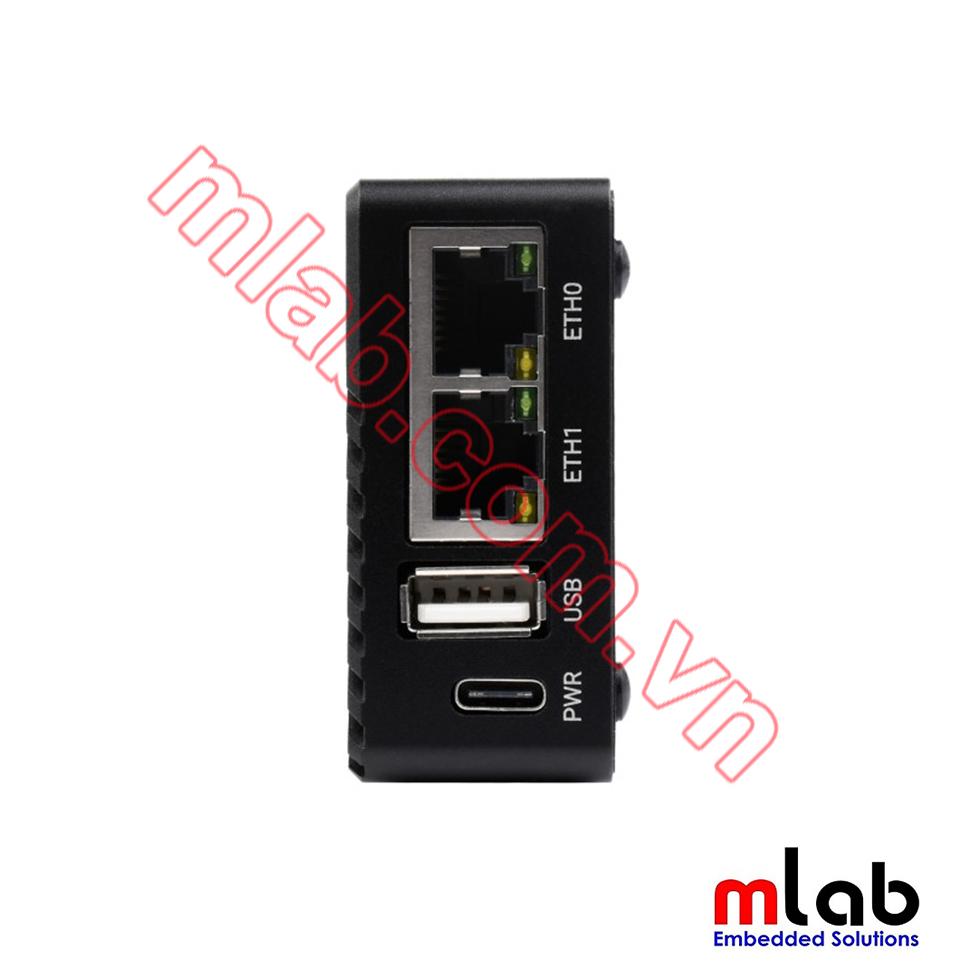

Rich Interfaces
Precise Cut-Out With Clear Label
Each Cut-Out Is Completely Aligned With The Connector

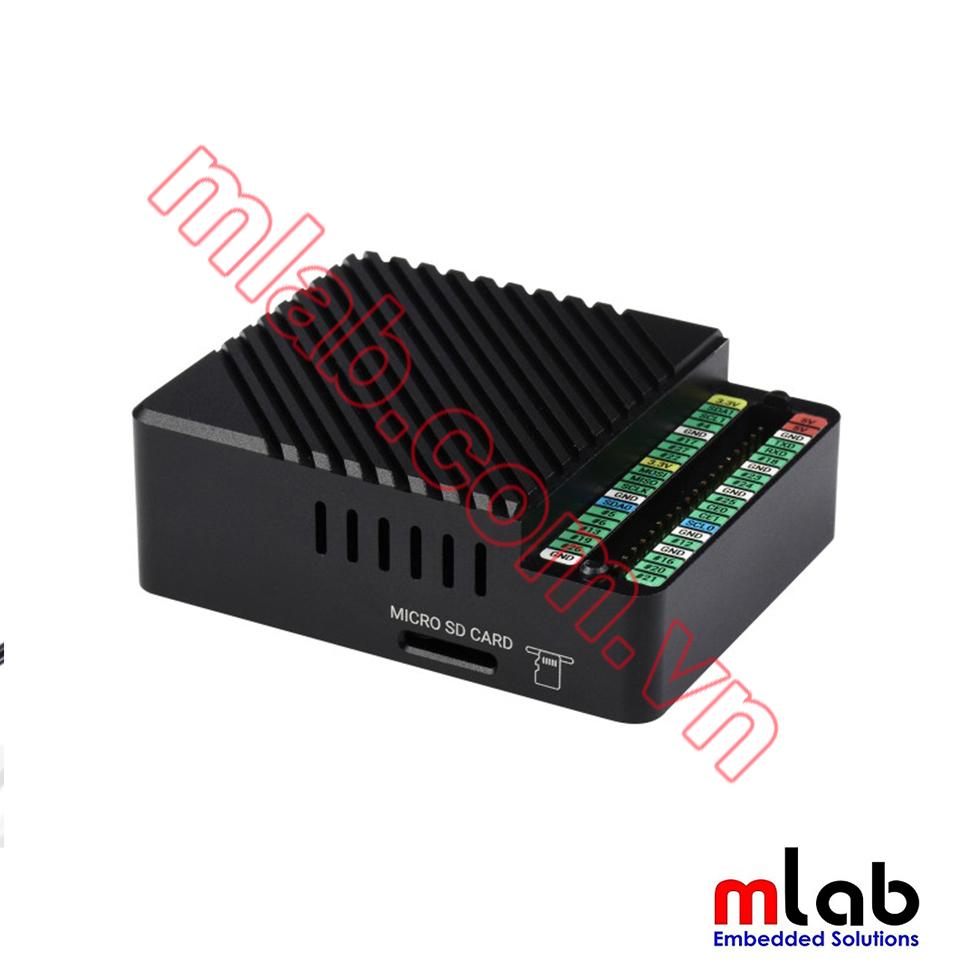

Magnetic Design
Magnetic Removable Top With The Location Columns, Easy To Fix And
Better Protection For The GPIO Pins

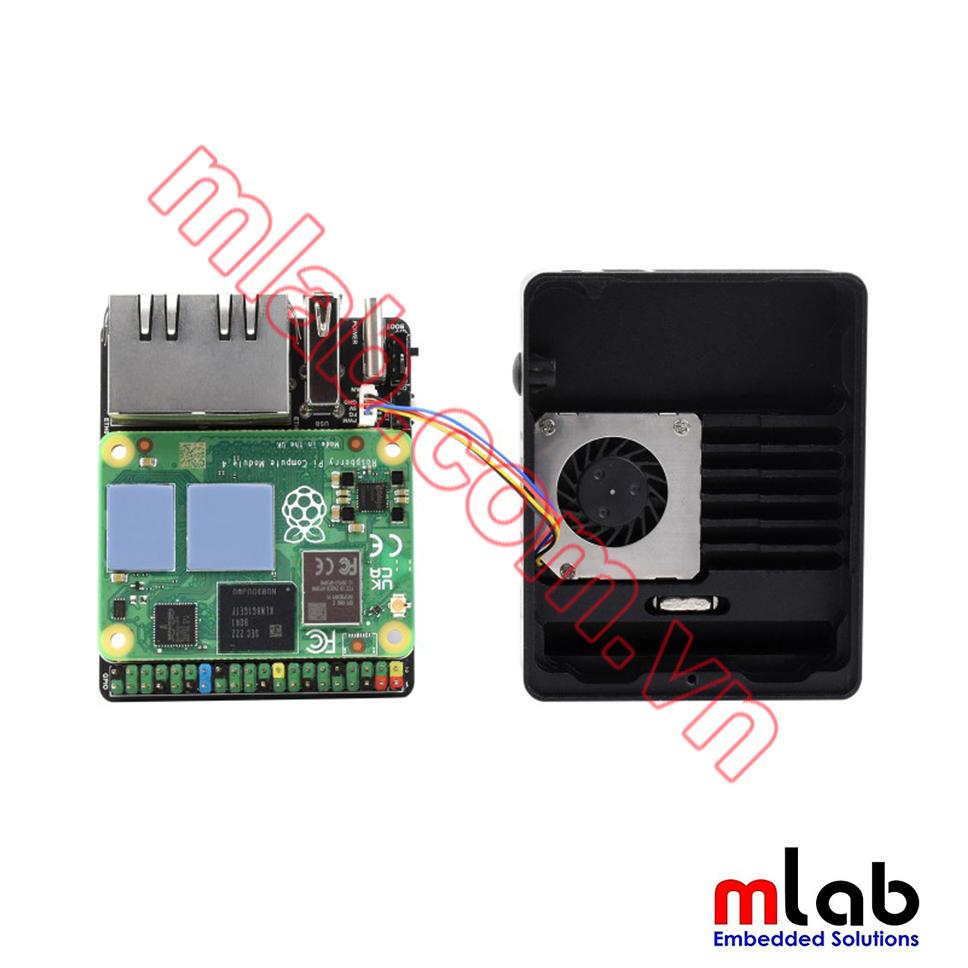

Heat Dissipation Design
Metal Case For Large Area Thermal Conductivity And Heat Dissipation
Built-In Speed-Adjustable Fan With Cooling Fins, More Efficient
CÁC ỨNG DỤNG
Suitable For Raspberry Pi Or Other Industrial Occasions With Special Function Requirements
HƯỚNG DẪN LẮP ĐẶT THIẾT BỊ
CHI TIẾT TRÊN BOARD MẠCH
- 40PIN GPIO header
for connecting sorts of HAT - CM4 Socket
suitable for all variants of Compute Module 4 - RJ45 Dual Gigabit Ethernet Port
Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
ETHERNET 0: CM4 original network port
ETHERNET 1: PCIe extended network port - USB 2.0 Type-A port
for connecting sorts of USB devices - FAN header
for connecting the cooling fan, allows speed adjustment and measurement - Reset button
- Boot switch
ON: CM4 would be booted from the USB-C interface
OFF: CM4 would be booted from eMMC or TF car
- Type-C port
5V/2.5A power supply, or used for eMMC programming - TF card slot
for connecting a TF card with a pre-burnt image (Lite variant ONLY) - RTL8111H
Gigabit NIC chip - Indicator
PWR: indicating the power supply status of Raspberry Pi
SYS: indicating the working status of Raspberry Pi - SYSTEM switch
EEPROM_WP: Prevent EEPROM from being overwritten
WiFi_DIS: WiFi disabled, only for CM4 version with wireless
BT_DIS: Bluetooth disabled, only for CM4 version with wireless

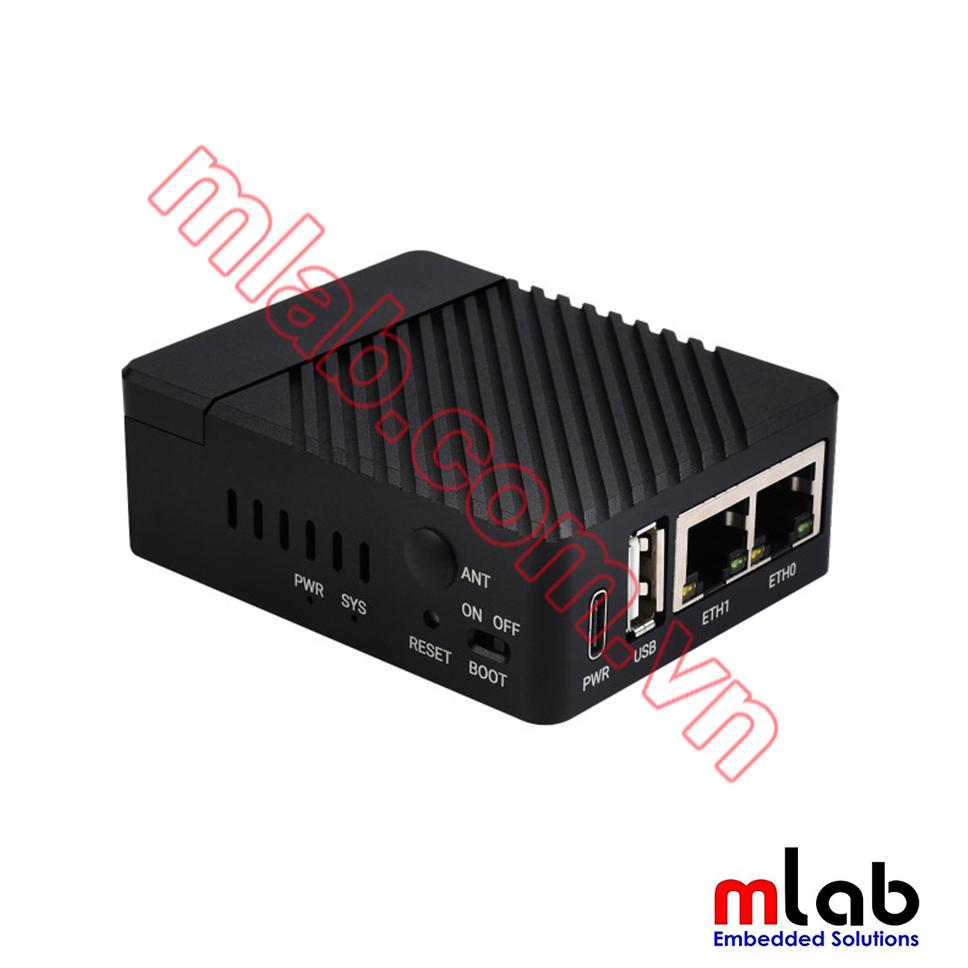

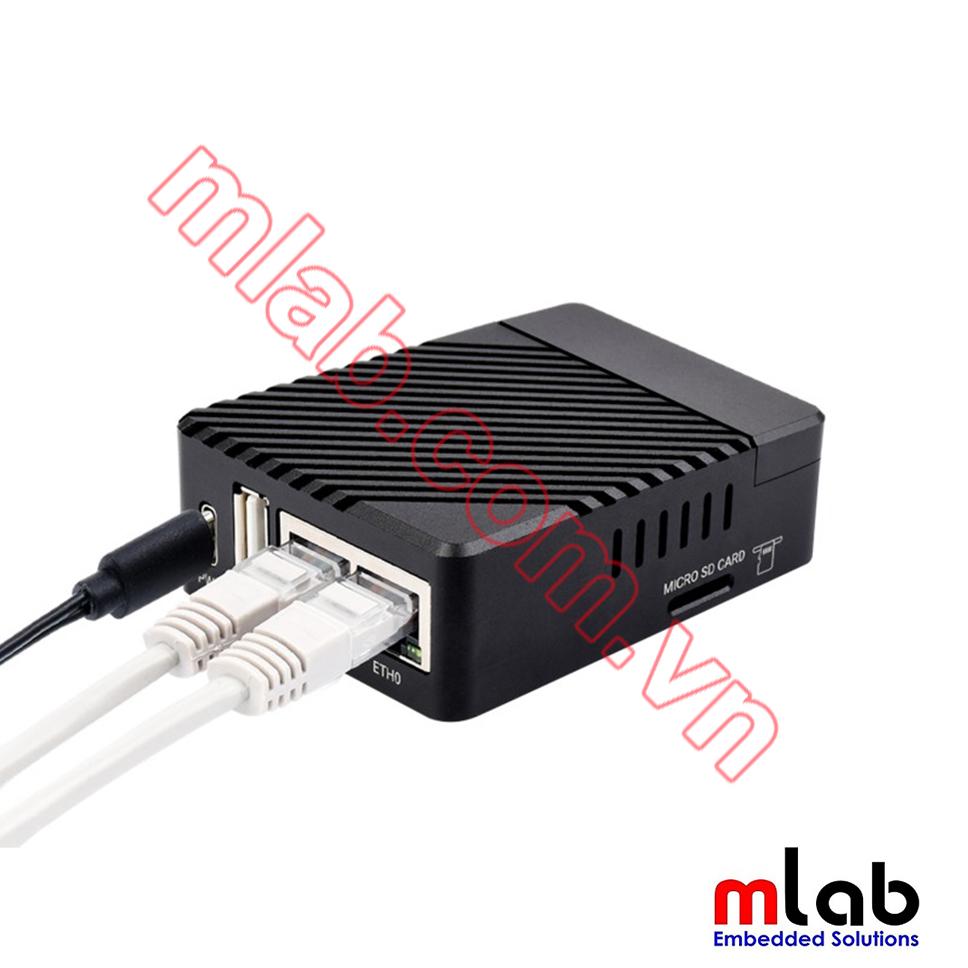

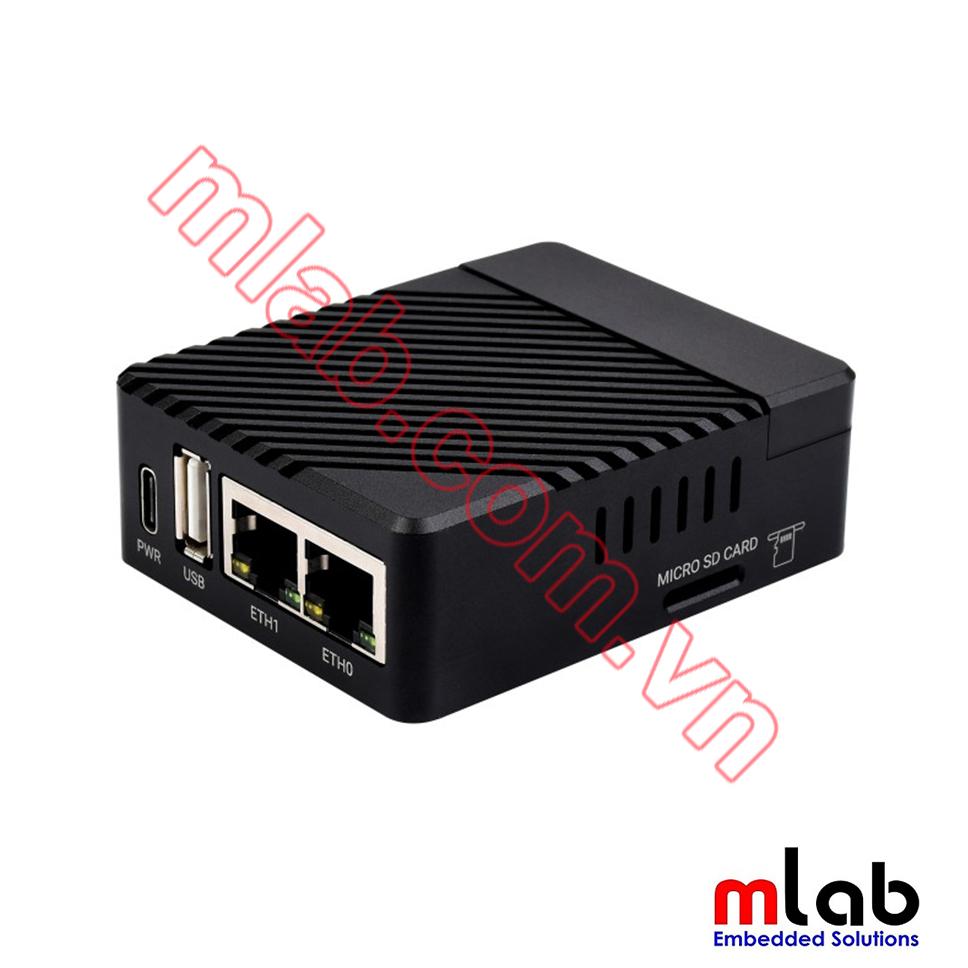

HÌNH ẢNH SẢN PHẨM
KÍCH THƯỚC BÊN NGOÀI
