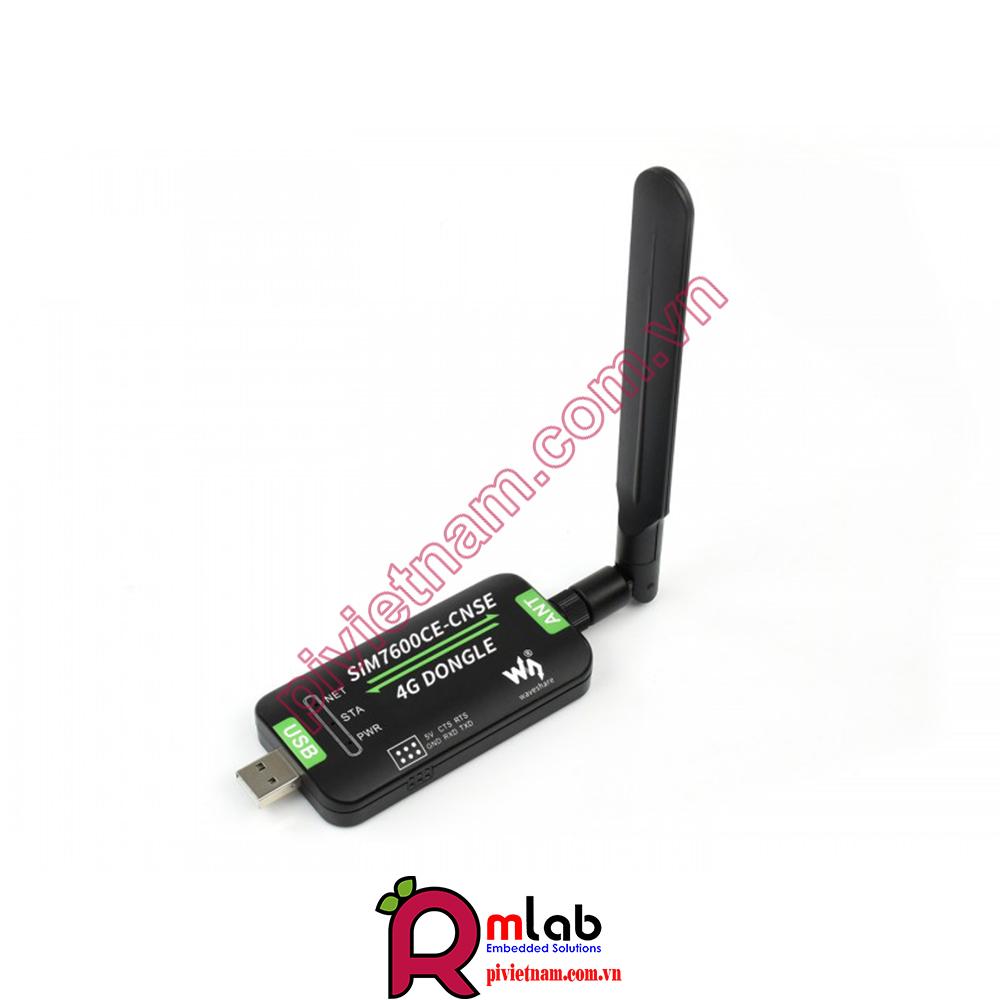

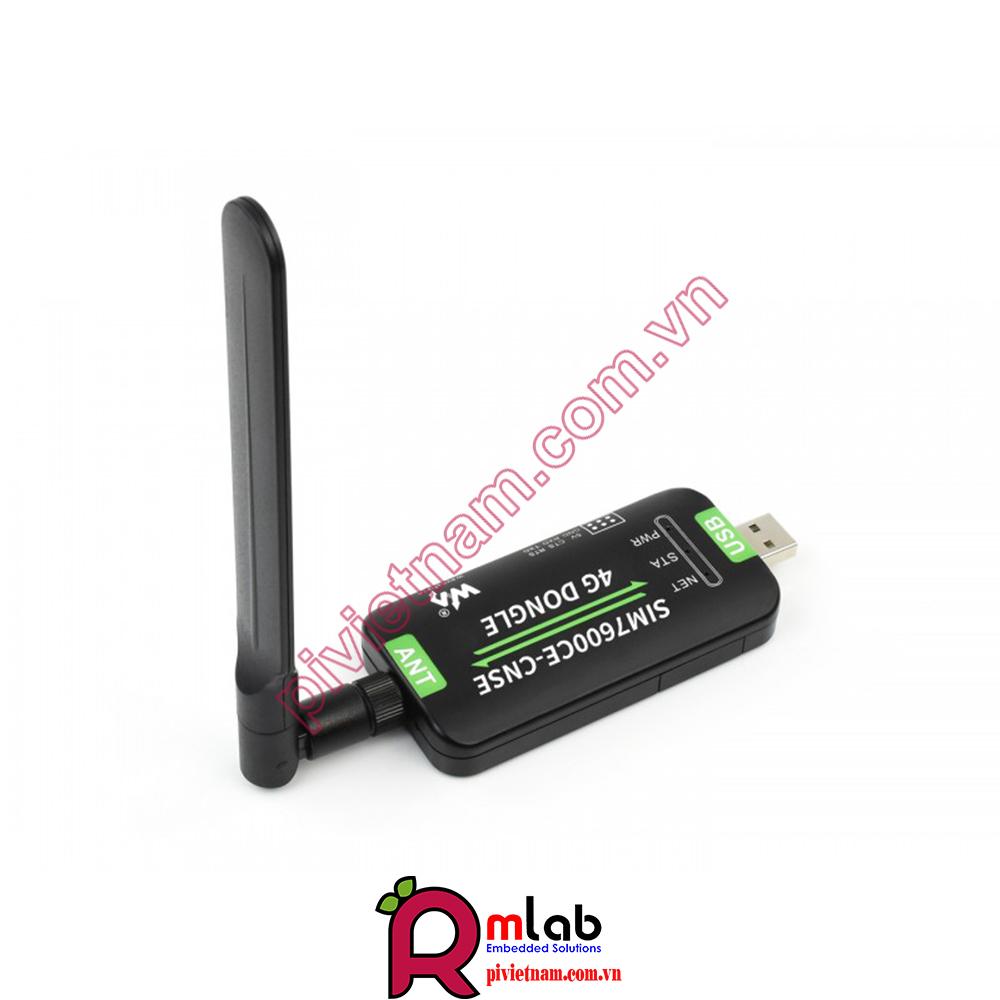

SIM7600CE-CNSE 4G DONGLE
Từ 2022 MLAB có thêm website mlab.com.vn với nền tảng web mới hơn, dễ sử dụng hơn cho quý khách hàng tra cứu, đặt hàng online tại MLAB. Quý khách hàng có thể mua SIM7600CE-CNSE 4G DONGLE tại MLAB tại link: (link đặt hàng)
This is an industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, and supports operating systems including Windows/Linux. By simply connecting it to a laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.
ĐẶC ĐIỂM, TÍNH NĂNG
- Supports 2G/3G/4G network connection, mainly applicable for China
- Driver provided, for operating systems including Windows/Linux
- Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
- Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32
- Nano SIM card slot supports 1.8V / 3V nano SIM card
- 3x LED indicators, easy to monitor the working status
- Portable customized enclosure, mini size, nice looking
- Baudrate support: 300bps ~ 4Mbps (115200bps by default)
- Baudrate auto-negotiation: 9600bps ~ 115200bps
SO SÁNH THÔNG SỐ KỸ THUẬT
| SIM7600CE-CNSE | SIM7600G-H | |
|---|---|---|
| Applicable regions* | China | Global |
| Band | ||
| LTE Cat-4 / LTE Cat-1 | LTE-TDD: B38/B39/B40/B41 LTE-FDD: B1/B3/B8 | LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28/B66 |
| 3G | UMTS/HSDPA/HSPA+: B1/B8 TD-SCDMA: B34/B39 | UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 |
| 2G | GSM/GPRS/EDGE: 900/1800MHz | GSM/GPRS/EDGE: 850/900/1800/1900MHz |
| GNSS | N/A | GPS, BeiDou, Glonass, LBS base station |
| Data Rate | ||
| LTE Cat-4 | 150Mbps(DL) / 50Mbps(UL) | |
| 3G (HSPA+) | 42Mbps(DL) / 5.76Mbps(UL) | |
| 2G (EDGE) | 236.8Kbps(DL) / 236.8Kbps(UL) | |
| 2G (GPRS) | 85.6Kbps(DL) / 85.6Kbps(UL) | |
| Software Features | ||
| Operating system | Windows/Linux | |
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | |
| Dial-up protocol | NDIS/RNDIS/PPP | |
| SMS | Supports MT, MO, CB, Text, PDU | |
| Hardware Description | ||
| Communication interface | USB / UART | |
| UART baud rate | 300bps ~ 4Mbps (115200bps by default) | |
| Indicator | NET：network indicator | |
| STA：status indicator | ||
| PWR：power indicator | ||
| SIM card support | Nano SIM card (1.8V / 3V) | |
| Antenna connector | LTE | |
| Power supply | 5V | |
| Logic level | 3.3V | |
| Outline dimensions | 89.20 × 45.26 × 14.62mm | |
HỖ TRỢ MULTI-HOST
Working With Laptop / Raspberry Pi / Industrial Computer...
Up To 150Mbps Downlink And 50Mbps Uplink*
HỖ TRỢ MULTI-SYSTEM
( WINDOWS/LINUX)
Just plug it into the USB port, go through some driver installation and simple configuration, and the high-speed 4G network connection would be ready to use
Cloud Communication
Supports USB/UART Communication Interfaces
Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS Communication Protocols
Industrial Grade 4G Solution

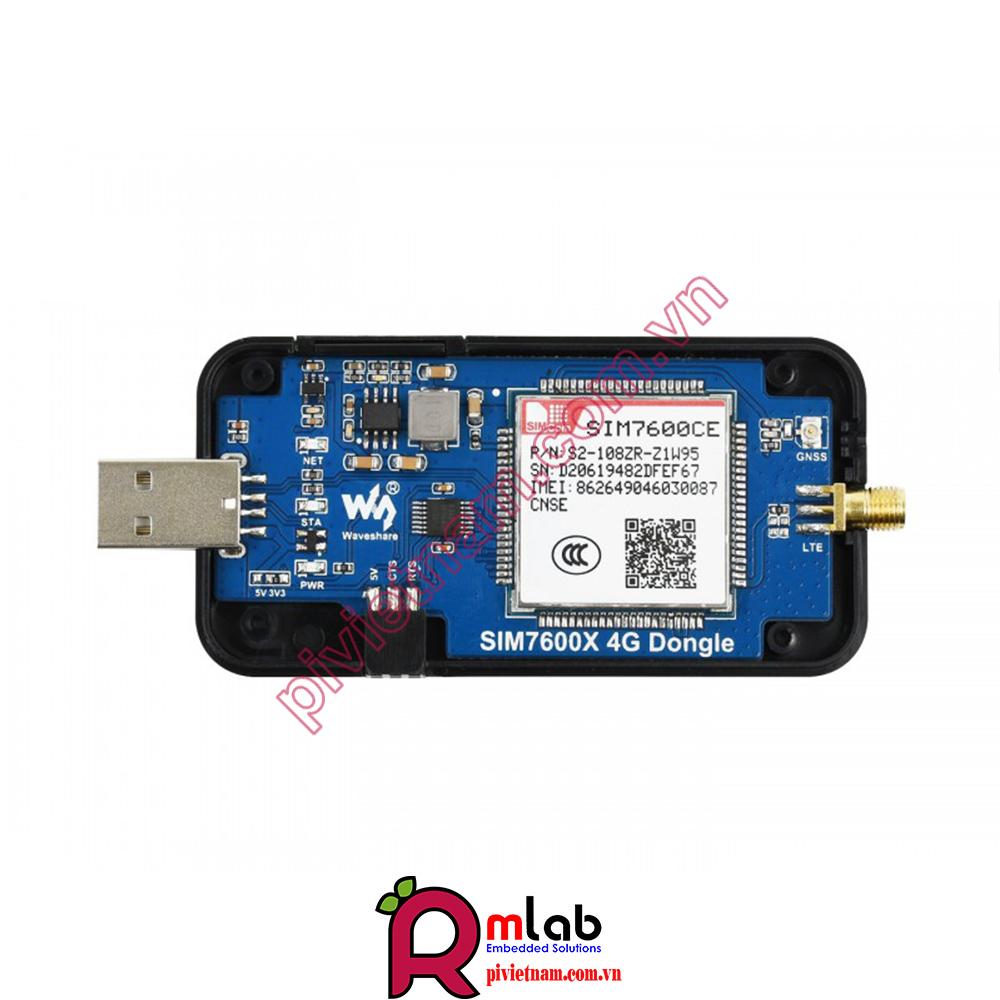

Integrates SIM7600CE-CNSE Module, Industrial Grade Design, Stable Connection, More Durable

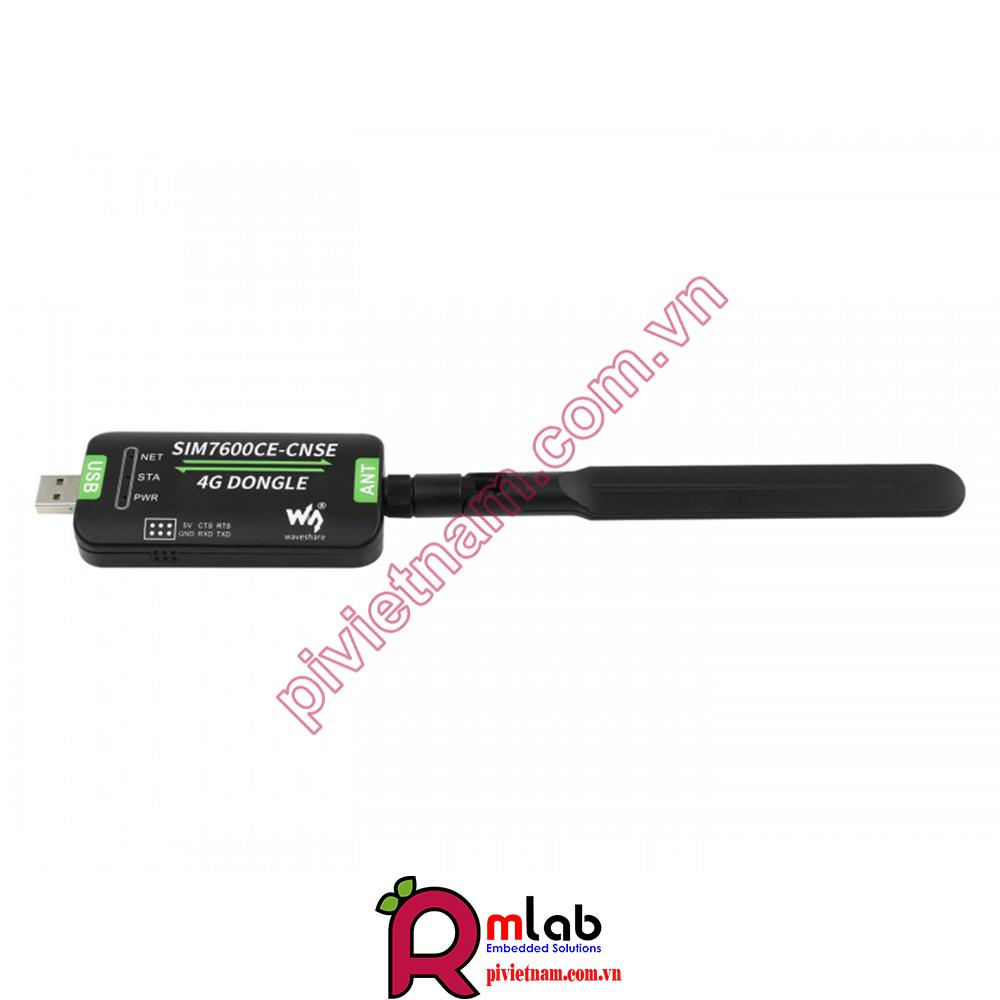

Flexible Antenna
Flexible Structure Antenna Design, Allows Multidimensional Rotation For Better Connection

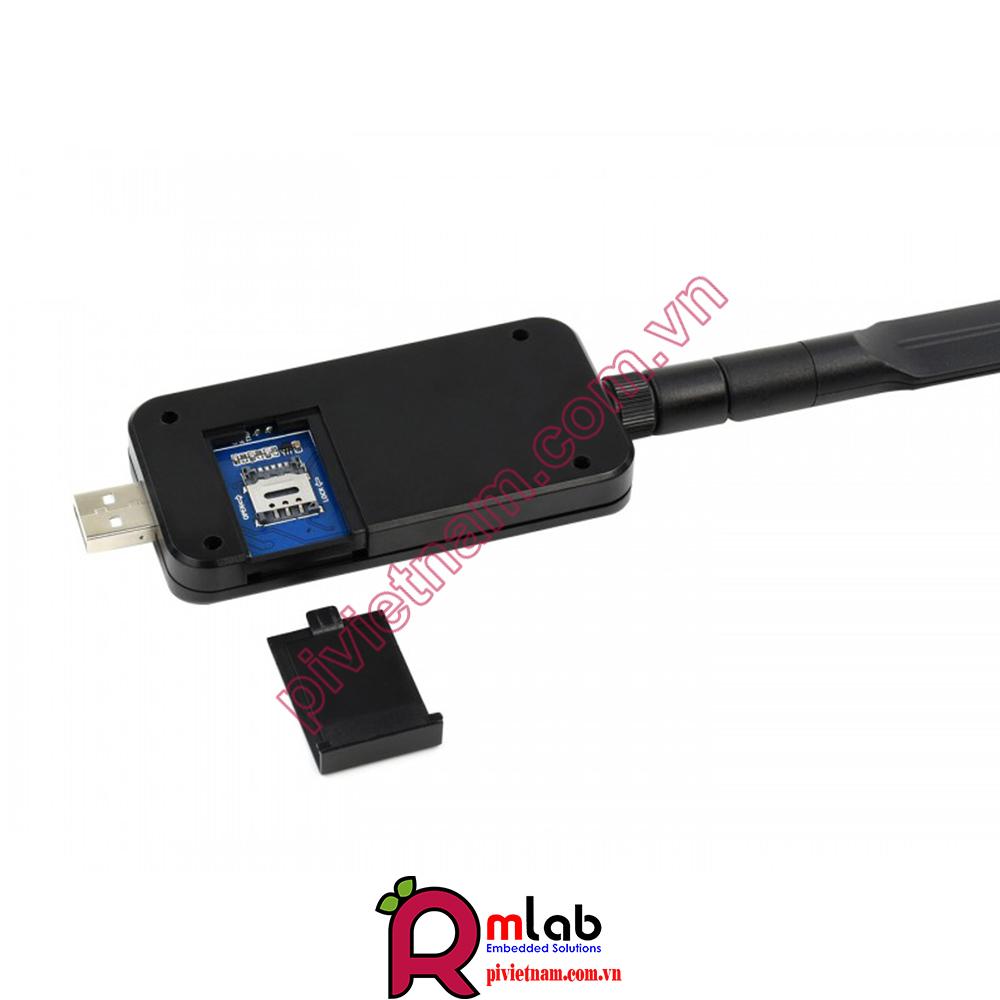

4G SIM Card Slot
Onboard Nano SIM Card Slot With Sliding Cover, Easy To Use

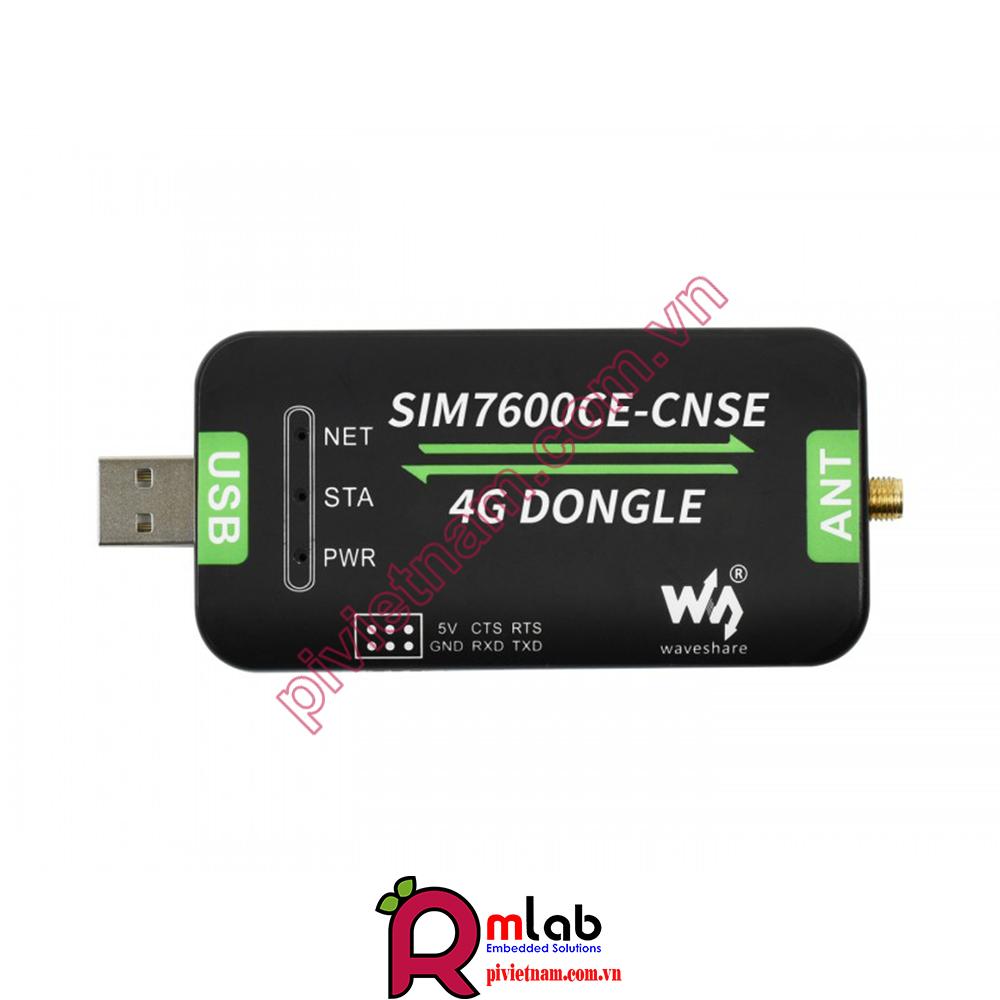

LED Indicators
Easy To Check The Operating Status, Convenient For Programming/Debugging
| UART PINOUTS | |
|---|---|
| 5V | 5V DC input |
| GND | power ground |
| TXD | data transmitting |
| RXD | data receiving |
| CTS | hardware flow control, clear to send, NC if not used |
| RTS | hardware flow control, request to send, NC if not used |
CÁC ỨNG DỤNG
HÌNH DÁNG VÀ KÍCH THƯỚC
