Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning
Based on SIM7600G-H, Global Band
Từ 2022 MLAB có thêm website mlab.com.vn với nền tảng web mới hơn, dễ sử dụng hơn cho quý khách hàng tra cứu, đặt hàng online tại MLAB. Quý khách hàng có thể mua SIM7600G-H 4G HAT (B) for Raspberry Pi tại MLAB tại link: (link đặt hàng)
+ Connected via pogo pin or MicroUSB connector
- Dedicated pogo pin for Raspberry Pi Zero/Zero W
- MicroUSB connector for other Raspberry Pi boards or PC
+ Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support
+ USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
+ Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
+ Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
+ SIM card slot, supports 1.8V/3V SIM card
+ Onboard audio jack and audio decoder for making telephone call
+ 2x LED indicators, easy to monitor the operating status
+ Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
+ Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
+ Comes with development resources and manual (examples for Raspberry Pi)
| FREQUENCY BAND | |
|---|---|
| LTE Cat-4 | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41 |
| 3G | UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 |
| 2G | GSM/GPRS/EDGE: 850/900/1800/1900 MHz |
| GNSS | |
| Satellite systems | GPS/Beidou/GLONASS/GALILEO/QZSS |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix (open air) | Cold starts: <35s |
| Hot starts: <1s | |
| SMS AND AUDIO | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| OTHER | |
| Power supply | 5V |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 65.00 × 32.00mm |

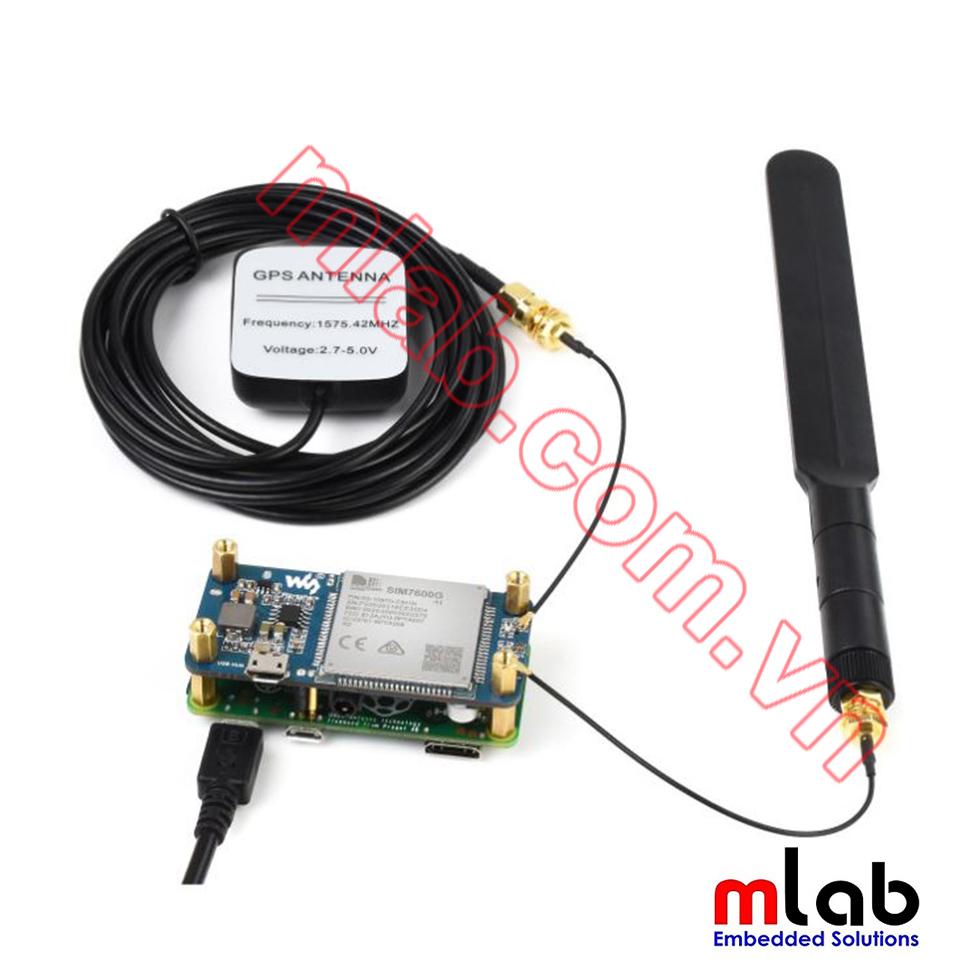

Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable
General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC
Up To 50Mbps Uplink And 150Mbps Downlink For 4G Network *
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.
Onboard USB HUB Chip With USB2.0/1.1 Compliant,
Providing 2x USB-A Connector And 1x USB Solder Pad
Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station Positioning
Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

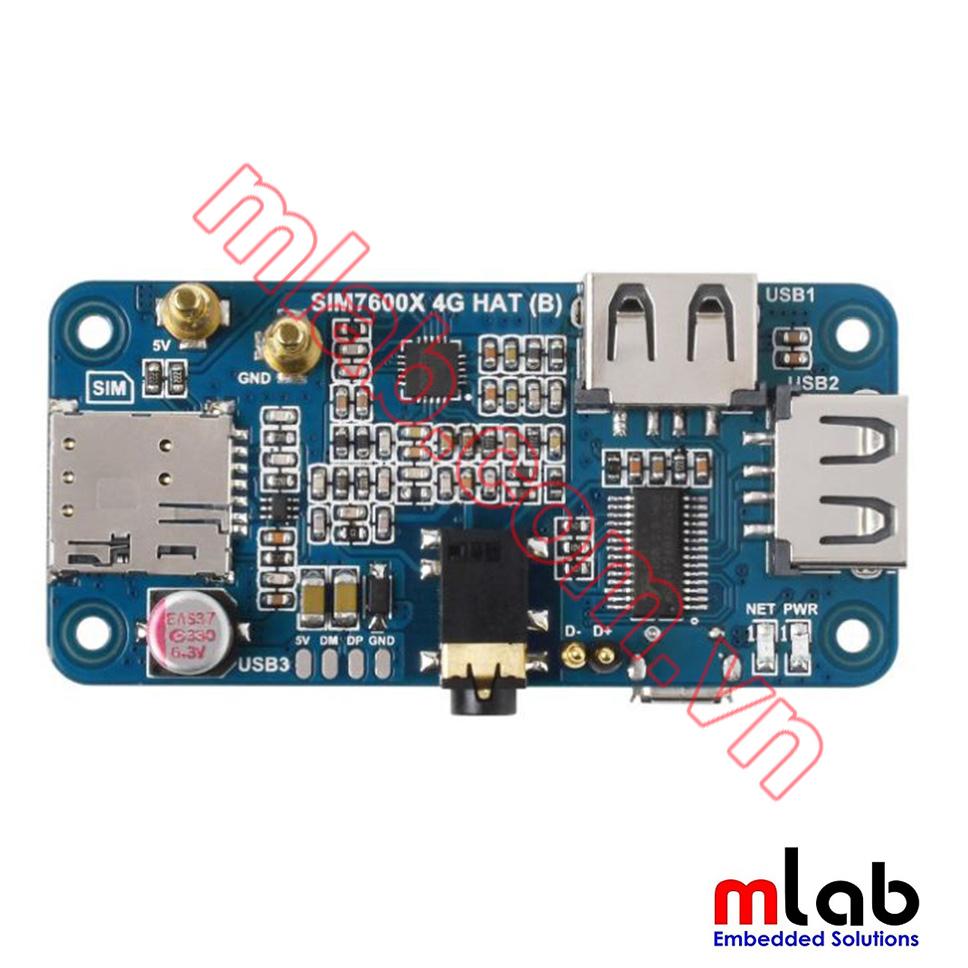

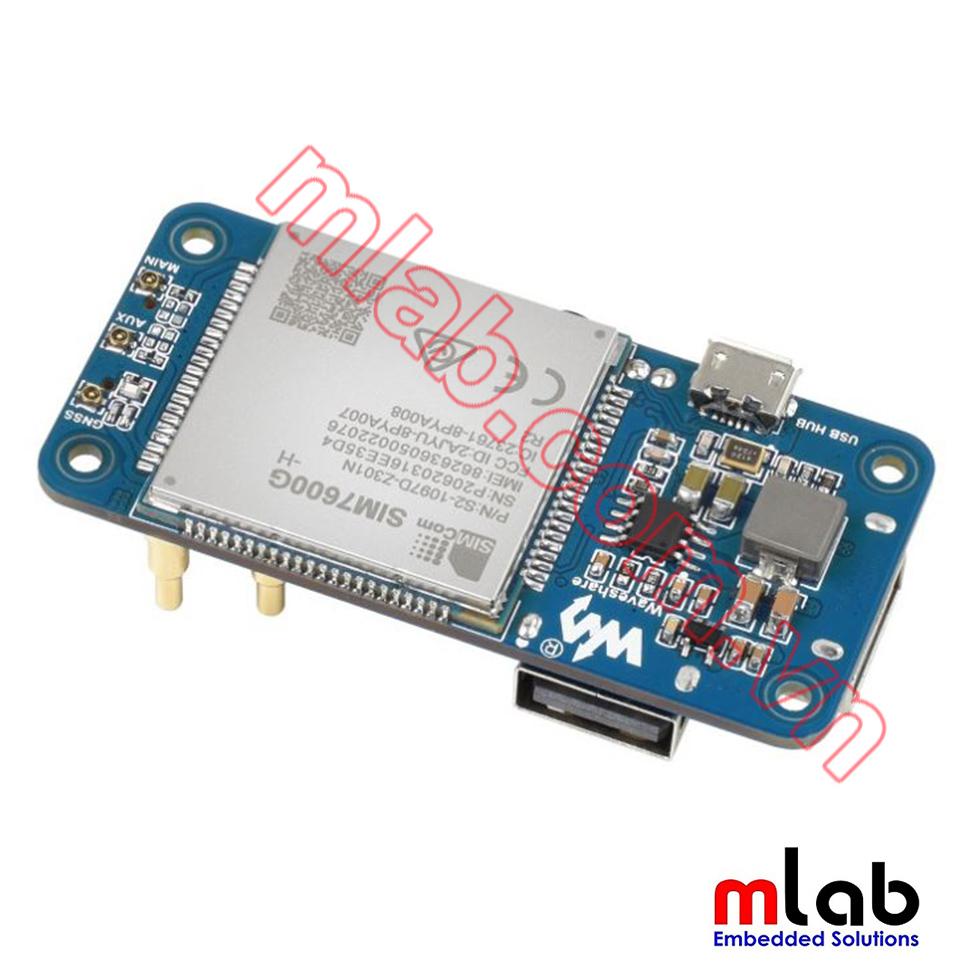

1. SIM7600G-H
2. FE1.1S USB HUB chip
3. NAU8810 audio decoder
4. MP1482 power chip
5. RT9193-33 voltage translator
6. USB HUB input
D+/D- pogo pin: for Raspberry Pi Zero/Zero W
MicroUSB connector: for other Raspberry Pi boards or PC
7. Pogo pin power supply
5V: connects to 5V pin of Zero/Zero W, up to 2A current
GND: connects to GND pin of Zero/Zero W
8. USB extended ports
USB1~USB2: USB-A connectors
USB3: solder pad
9. SIM card slot
supports 1.8V/3V SIM card
10. 3.5mm earphone/mic jack
11. MAIN antenna connector
12. AUX auxiliary antenna connector
13. GNSS antenna connector
14. Power indicator
15. Network status indicator
