4G HAT FOR RASPBERRY PI
Enabling 4G / 3G / 2G Communication & LBS Positioning
Based on SIM7600CE-JT1S
Từ 2022 MLAB có thêm website mlab.com.vn với nền tảng web mới hơn, dễ sử dụng hơn cho quý khách hàng tra cứu, đặt hàng online tại MLAB. Quý khách hàng có thể mua SIM7600CE-JT1S 4G/3G/2G HAT dành cho Raspberry Pi tại MLAB tại link: (link đặt hàng)
ĐẶC ĐIỂM, TÍNH NĂNG
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports LBS base station positioning
- Onboard USB interface, for testing AT Commands, establishing a network connection, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- SIM card slot supports 1.8V/3V SIM card
- TF card slot for storing data like files, messages, etc.
- Onboard audio jack and audio decoder for making a telephone call
- 2x LED indicators, easy to monitor the working status
- Onboard voltage translator, the operating voltage can be configured to 3.3V or 5V via jumper
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
THÔNG SỐ KỸ THUẬT
| FREQUENCY BAND | |
|---|---|
| LTE Cat-4 | LTE-FDD: B1/B3/B5/B8 LTE-TDD: B38/B39/B40/B41 |
| 3G | TD-SCDMA：B34, B39 UMTS/HSDPA/HSPA+: B1, B8 CDMA: 1X/EVDO BC0 |
| 2G | GSM/GPRS/EDGE: 900/1800 MHz |
| SMS AND AUDIO | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Storage: USIM card and ME (default) | |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| OTHERS | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via jumper) |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 56.01mm × 65.00mm |
Standard Raspberry Pi 40PIN GPIO
Compatible With Raspberry Pi Series Boards, Jetson Nano
Dial-Up On Windows/Linux
LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.
Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS
HỖ TRỢ TELEPHONE CALL & SMS
Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

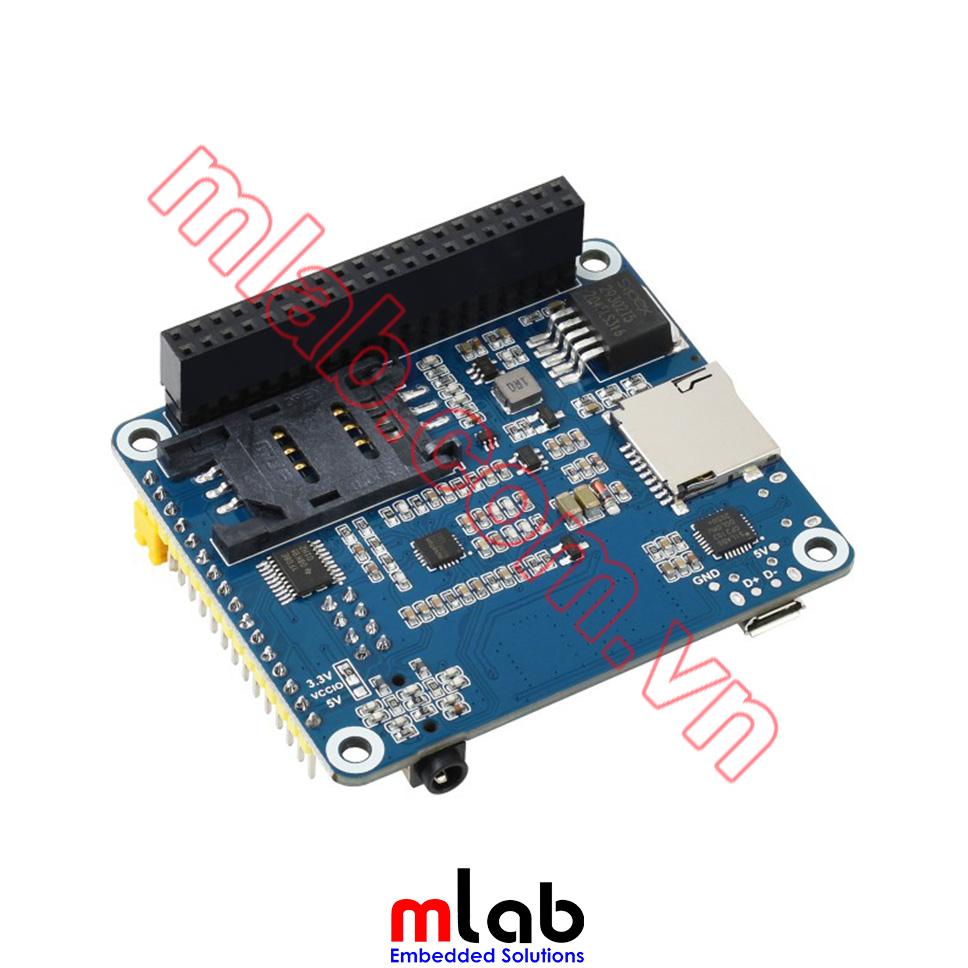

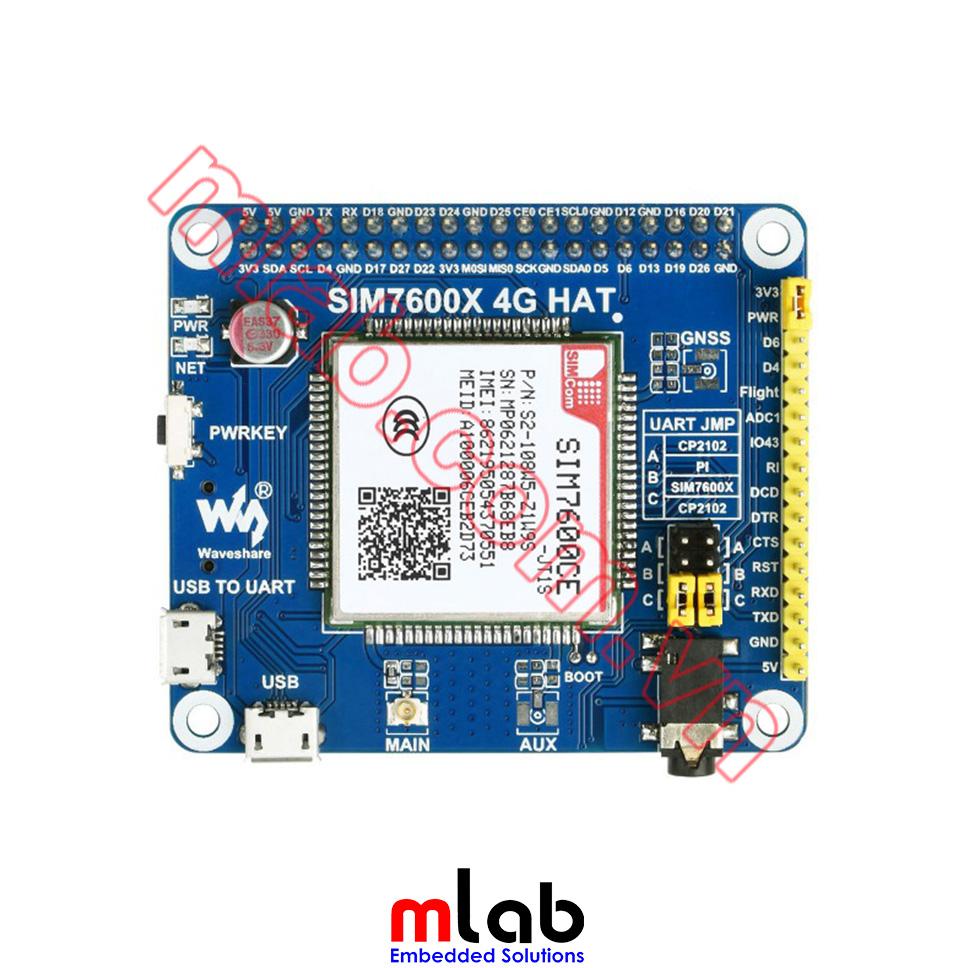

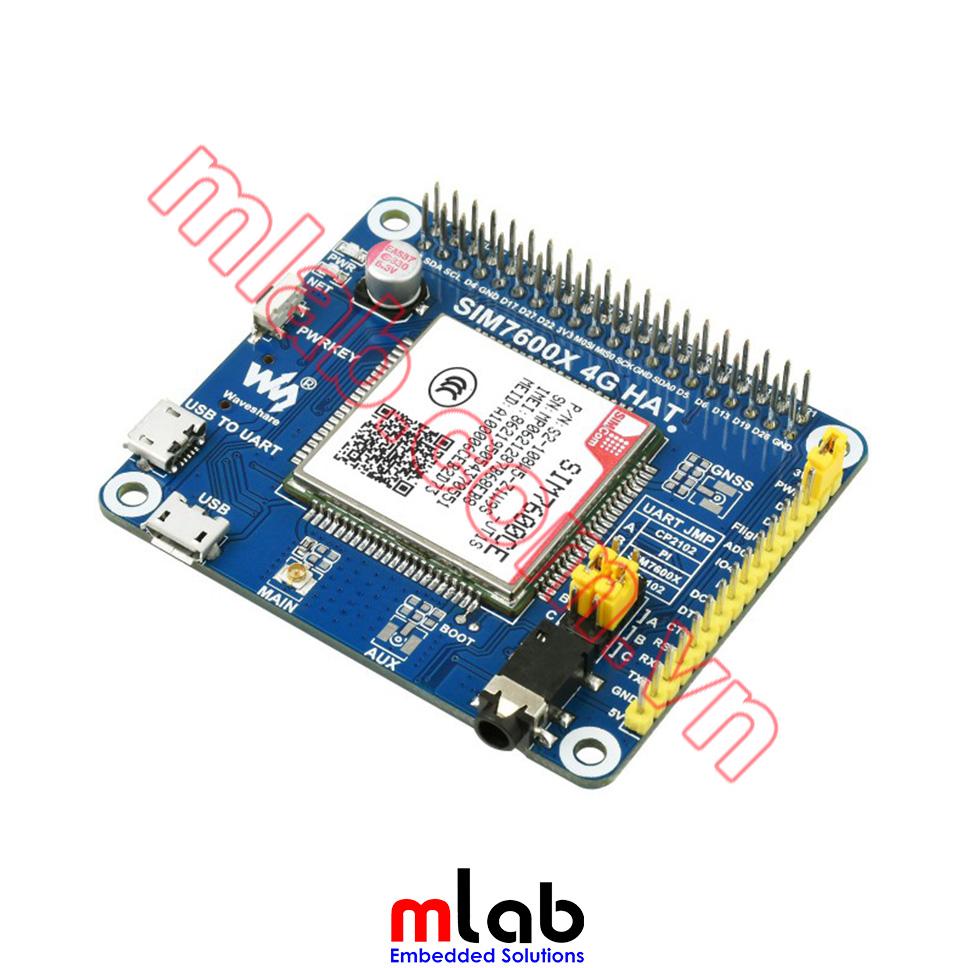

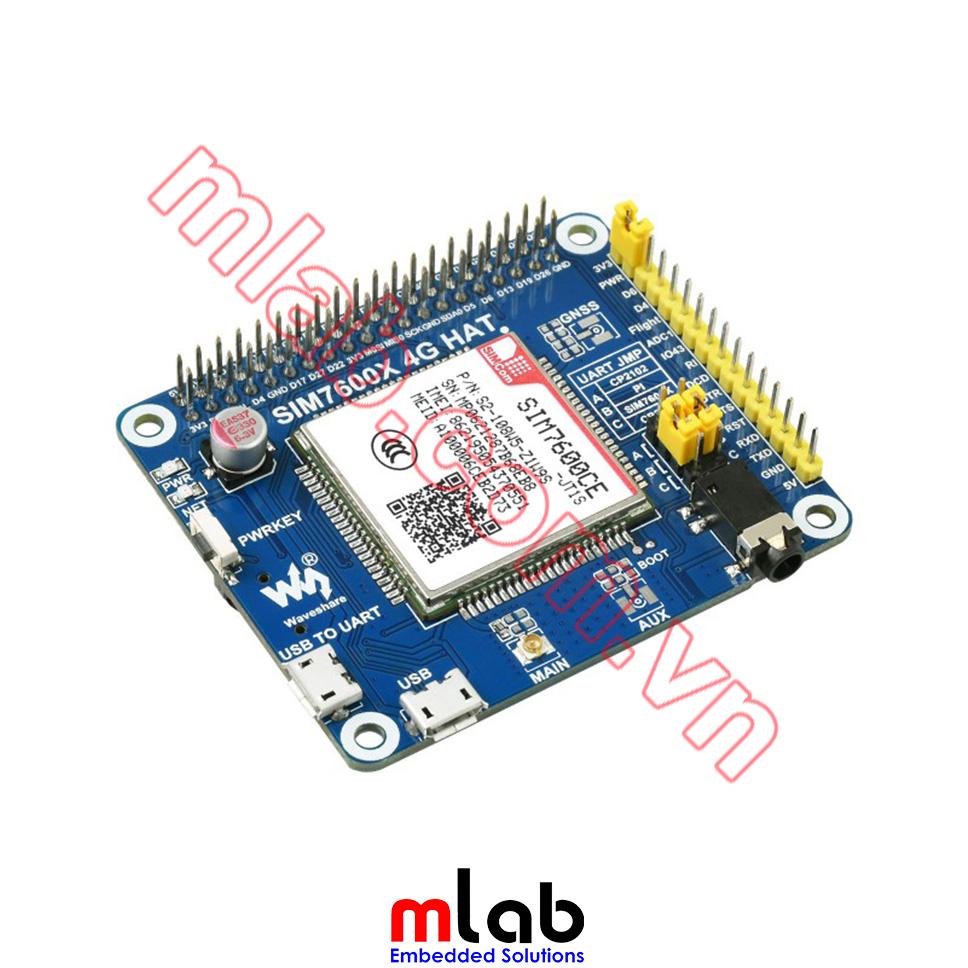

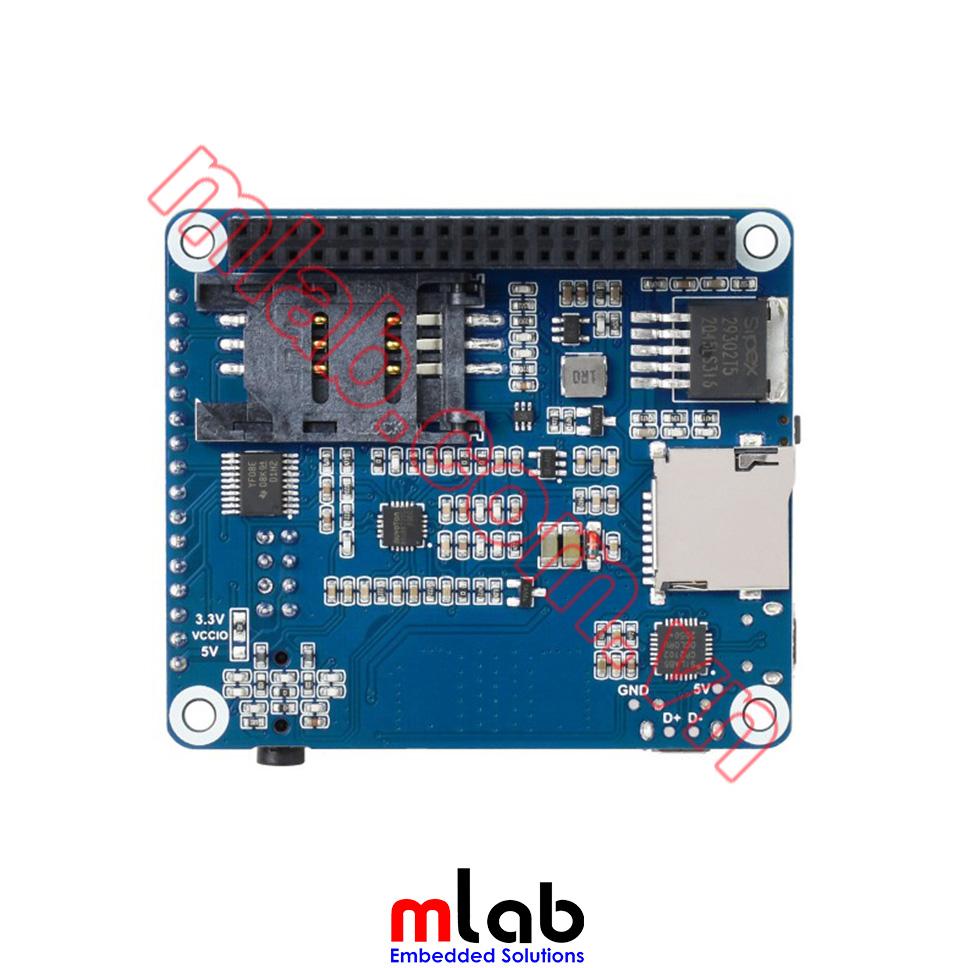

CẤU TẠO BO MẠCH
- SIM7600CE-JT1S
- CP2102 USB to UART converter
- NAU8810 audio decoder
- TXS0108EPWR voltage translator
- translates 3.3V/5V into 1.8V
- MP2128DT power chip
- SPX29302 power chip
- Raspberry Pi GPIO header
- for connecting with Raspberry Pi
- SIM7600 control interface
- for connecting with host boards like Arduino/STM32
- SIM card slot
- supports 1.8V/3V SIM card
- TF card slot
- for storing data like files, messages, etc.
- 3.5mm earphone/mic jack
- for audio actions like making a telephone call
- USB interface
- for testing AT Commands, and so on
- USB TO UART interface
- for serial debugging, or log in to Raspberry Pi
- MAIN antenna connector
- Module power switch
- Network status indicator
- Power indicator
- UART selection jumper
- A: access Raspberry Pi via USB to UART
- B: control the SIM7600 by Raspberry Pi
- C: control the SIM7600 via USB to UART
- PWR selection jumper
- PWR - 3V3: auto startup on power-up
- PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
- Flight mode selection jumper
- NC by default, no flight mode control pin
- Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
- Operating voltage selection jumper
- VCCIO - 3.3V: set operating voltage as 3.3V
- VCCIO - 5V: set operating voltage as 5V
- USB connector solder pads
- BOOT forced programming solder pads
SƠ ĐỒ CHÂN KẾT NỐI
