Module SX1268 LoRa HAT 433MHz dành cho Raspberry Pi

Module SX1268 LoRa HAT 433MHz dành cho Raspberry Pi (Bảo hành 6 tháng)

  • 16804
  • Waveshare
750,000

Sản phẩm nhập khẩu chính hãng từ Waveshare

Hỗ trợ kỹ thuật trong suốt quá trình sử dụng

Xuất hóa đơn GTGT cho cá nhân, đơn vị có nhu cầu

Sản phẩm được bảo hành 06 tháng

Bảo hành 6 tháng
  • Bảo hành 6 tháng

Hỗ trợ mua hàng : 02436.231.170 or 0984.058.846

Tư vấn kỹ thuật Raspberry Pi : 0862.628.846

Tư vấn kỹ thuật Module khác : 0866.828.846 or 0862.998.846

 VUI LÒNG LIÊN HỆ ĐỂ ĐƯỢC HỖ TRỢ KỸ THUẬT  VÀ ĐẶT HÀNG TRỰC TIẾP


 GIẤY XÁC NHẬN MLAB LÀ ĐƠN VỊ PHÂN PHỐI CHÍNH THỨC (OFFICAL DISTRIBUTOR) CỦA WAVESHARE TẠI VIỆT NAM


SX1268 LoRa HAT For Raspberry Pi, Spread Spectrum Modulation, 433MHz Frequency Band


This is a Raspberry Pi LoRa HAT based on SX1268, which covers the 433MHz frequency band. It allows data transmission up to 5km through the serial port.

By utilizing the new generation LoRa spread spectrum modulation technology, the communication distance of the module is as long as 5km and also supports auto repeating to transmit longer. Other features include Wake on Radio, wireless config, carrier sensing, communication key, and so on.

Compared with normal LoRa modules, the SX1268 LoRa HAT achieves longer communication distance, higher rate, lower consumption, better safety, and anti-interference. It is suitable for various applications such as industrial control, smart home, data collection, etc.


Features


- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

- Onboard CP2102 USB TO UART converter, for serial debugging

- Brings the UART control interface, for connecting host boards like Arduino/STM32

- 4x LED indicators, easy to check the module status

- LoRa spread spectrum modulation technology, up to 84 available signal channels, longer communication distance, more robust to interference

- Auto multi-level repeating, suited for ultra-long-range communication, allows multi-network on the same region

- Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications

- Customizable communication key which won't be retrieved, greatly improves the security of user data

- Supports LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment

- Supports RSSI signal intensity indicating, for evaluating signal quality, tuning the network

- Supports wireless parameter configuration, by sending wireless command/data packet, remotely configuring or retrieving the module parameter

- Supports fixed-point transmission, broadcast, signal channel monitor

- Comes with development resources and manual (examples for Raspberry Pi/STM32)


Specification



What's on Board

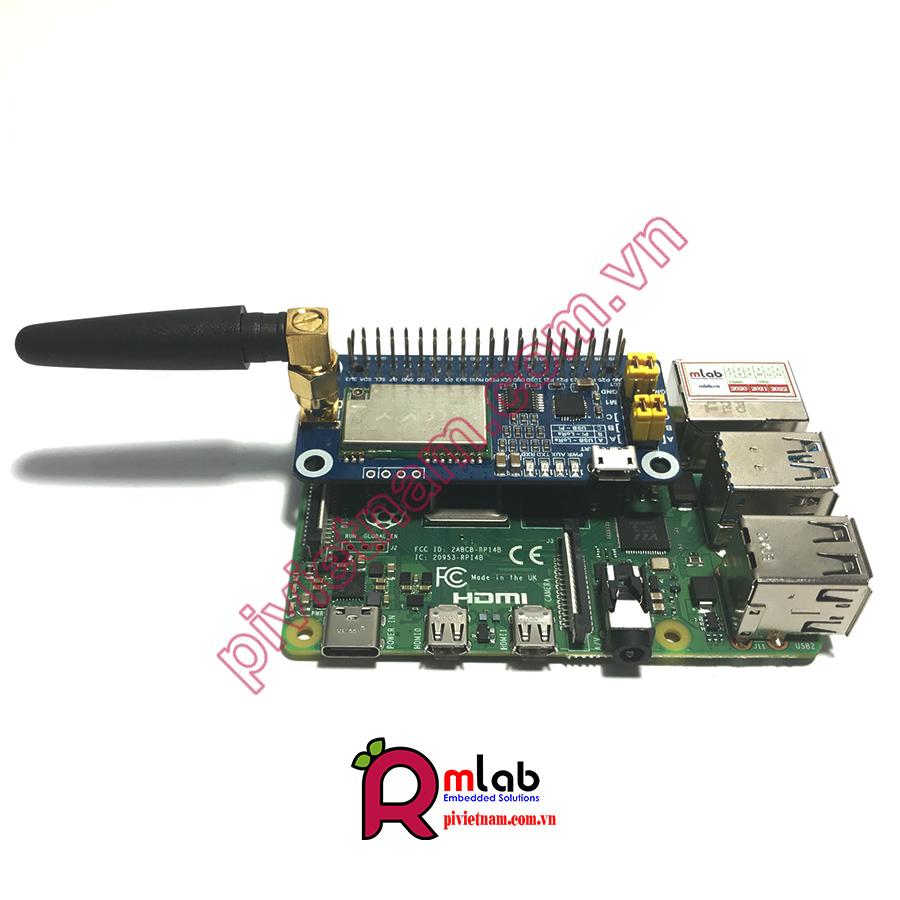

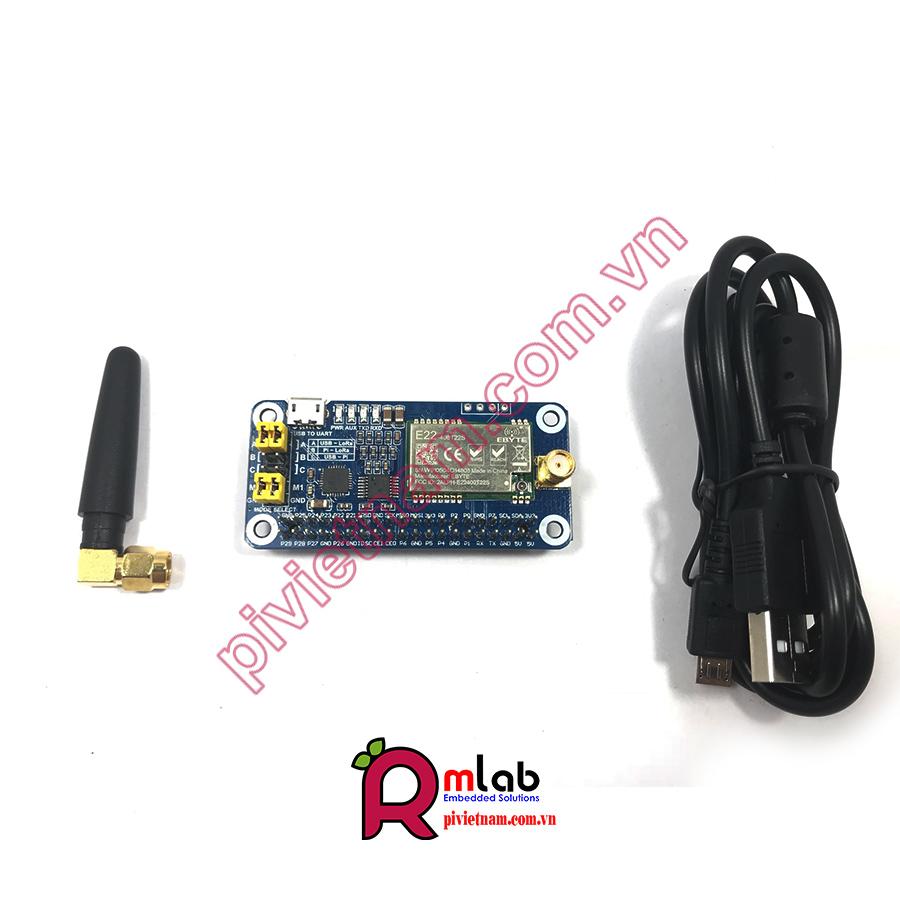

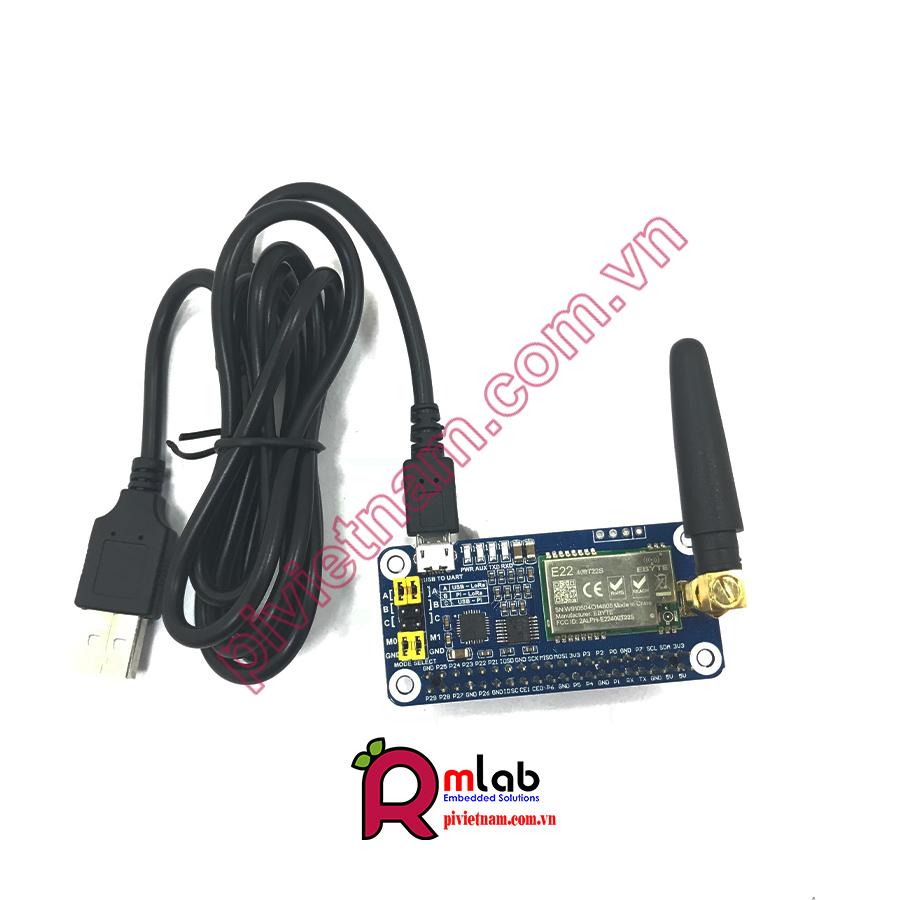

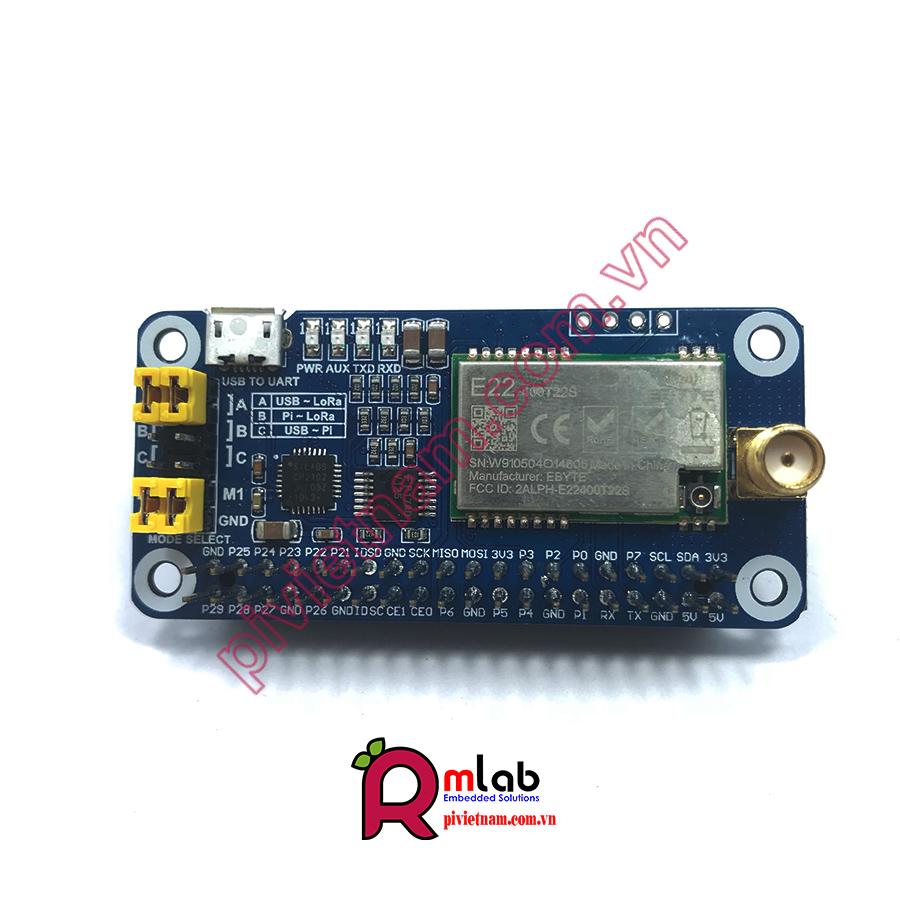

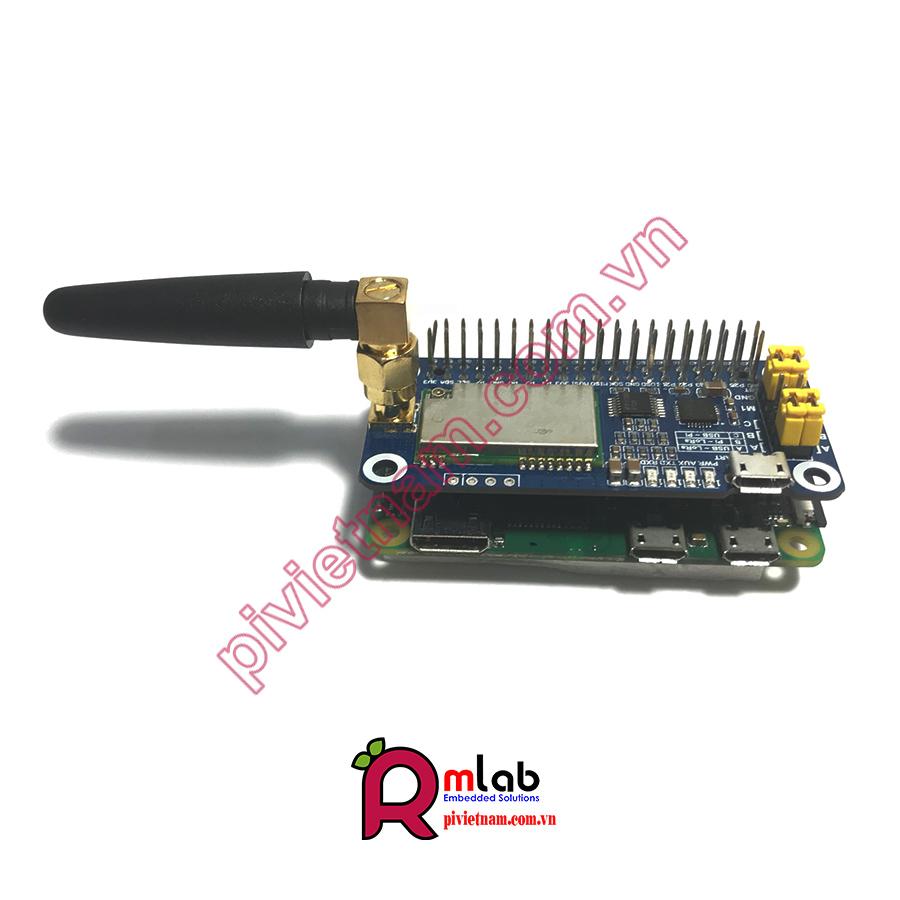

SX1268 LoRa HAT on board resource

  1. SX1268 LoRa module
  2. 74HC125V: voltage level translator
  3. CP2102: USB TO UART converter
  4. Raspberry Pi GPIO connector: for connecting with Raspberry Pi
  5. USB TO UART port
  6. UART header: for connecting host boards like STM32/Arduino
  7. SMA antenna connector
  8. IPEX antenna connector
  9. Indicators:
    • RXD/TXD: UART RX/TX indicator
    • AUX: auxiliary indicator
    • PWR: power indicator
  10. UART selection jumpers
    • A: control the LoRa module through USB TO UART
    • B: control the LoRa module through Raspberry Pi
    • C: access Raspberry Pi through USB TO UART
  11. LoRa mode selection jumpers
    • short M0, short M1: transmission mode
    • short M0, open M1: configuration mode
    • open M0, short M1: WOR mode
    • open M0, open M1: deep sleep mode

Dimensions


SX1268 433M LoRa HAT dimensions




Development Resources


Wiki: www.waveshare.com/wiki/SX1268_433M_LoRa_HAT
