5V 2.5A Type-C power output
IEEE 802.3af/at-compliant Gigabit Ethernet
- Incorporates original chip Si3404, high-efficiency, high-safety, stable-performance
- 10/100/1000Mbps auto-negotiation Ethernet port
- 802.3af/at-compliant PoE (Power over Ethernet) standard
- Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
- 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
- Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
POWER SUPPLY | supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering |
---|---|
POE INPUT VOLTAGE | 37V ~ 57V |
TYPE-C OUTPUT | 5V 2.5A (MAX) |
CABLE | Cat-5 UTP |
STANDARD | IEEE 802.3 af/at PoE Ethernet |
DATA RATE | 10/100/1000Mbps |
LED INDICATOR | PoE power input indicator |
DIMENSIONS | 86 × 30 × 25mm (l × w × h) |
OPERATING TEMPERATURE | -40℃ ~ 85℃ |
Incorporates Si3404, High-Integration, High-Efficiency, More Safe And Reliable
Isolated Circuit Protection, Effectively Protecting The Powered Device
Aluminum Alloy Case, Sturdy And Rugged, Higher Protection Level, Better Heat Dissipation

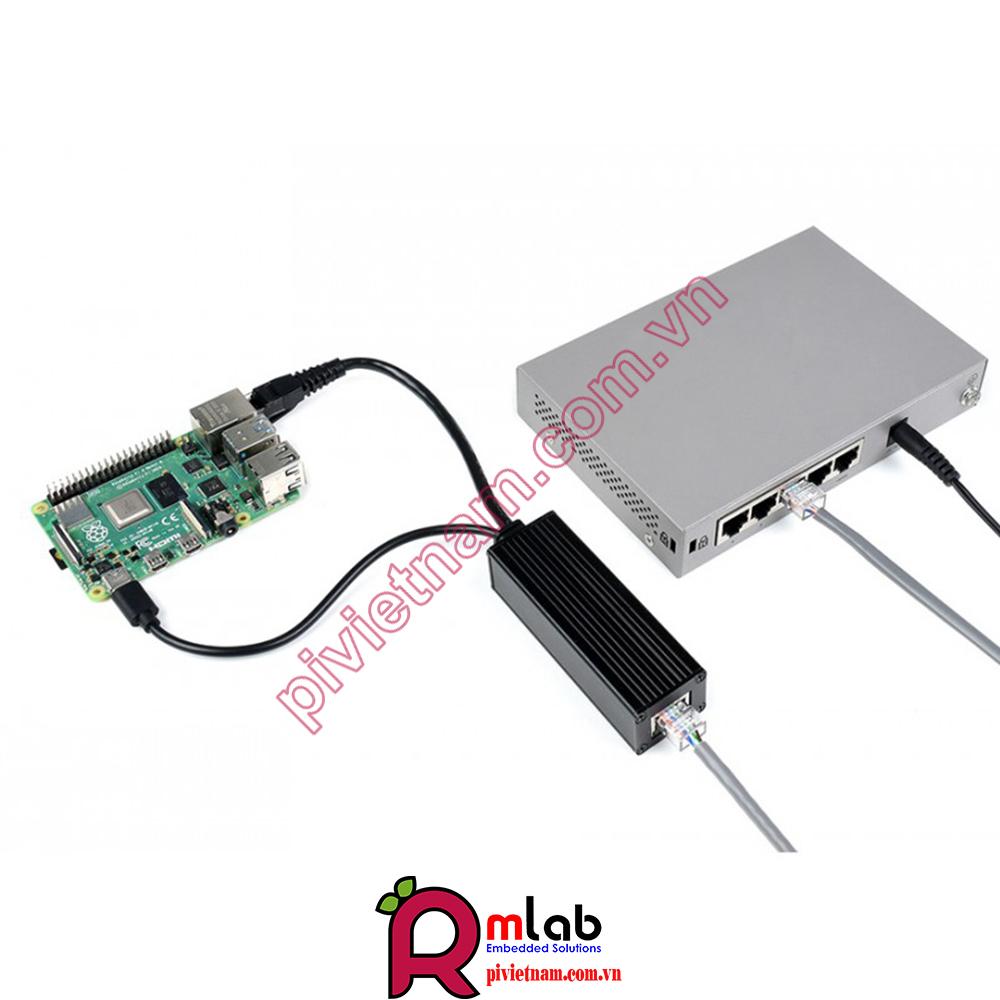

Powering The Raspberry Pi Or Other 5V-Powered Network Devices By PoE Switch
