Grove - Rotary Angle Sensor

Mã sản phẩm: 101020017

99,000 ₫

--- Quý khách hàng có nhu cầu có thể đặt hàng trước ---

Sản phẩm nhập khẩu chính hãng từ Seeed Technology

Hỗ trợ kỹ thuật trong quá trình sử dụng

Xuất hóa đơn cho cá nhân, đơn vị có nhu cầu

Sản phẩm được bảo hành 06 tháng

Thêm vào giỏ hàng

Mô tả
Điểm nổi bật
Thông tin
Bình luận

Từ 2022 MLAB có thêm website mlab.com.vn với nền tảng web mới hơn, dễ sử dụng hơn cho quý khách hàng tra cứu, đặt hàng online tại MLAB. Quý khách hàng có thể mua Grove - Rotary Angle Sensor tại MLAB tại link: (link đặt hàng)

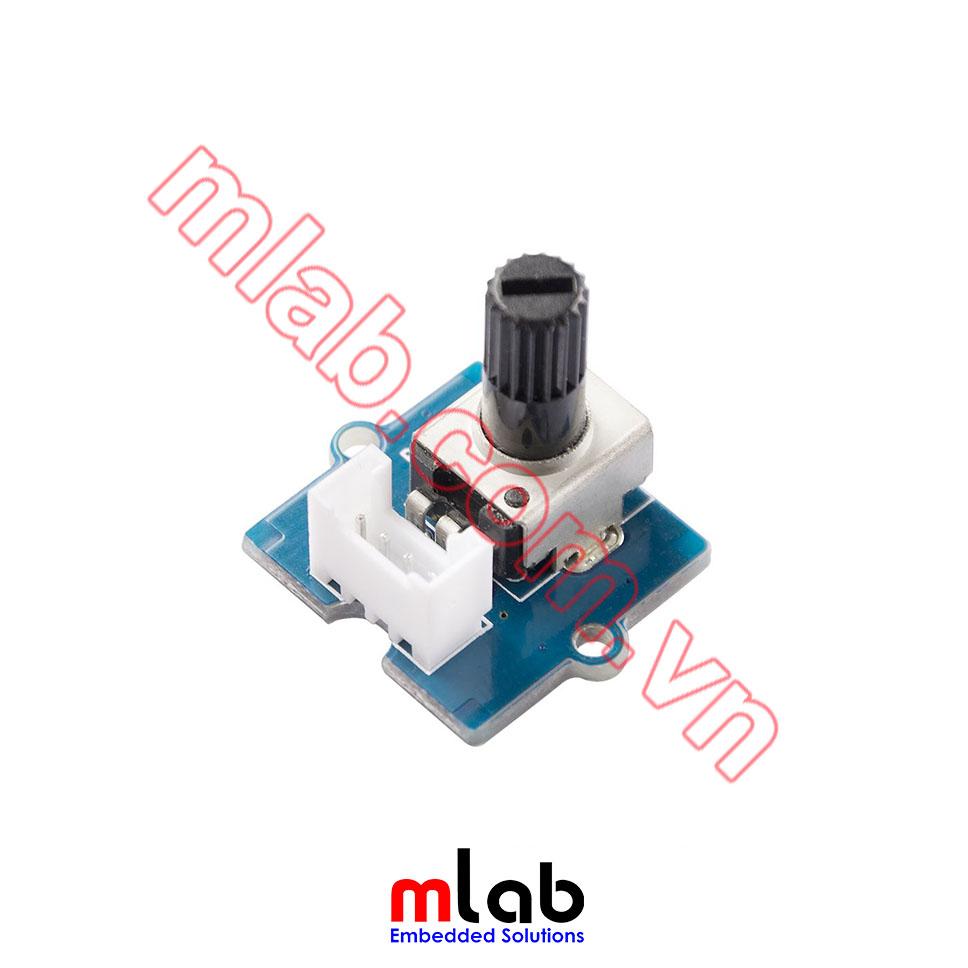

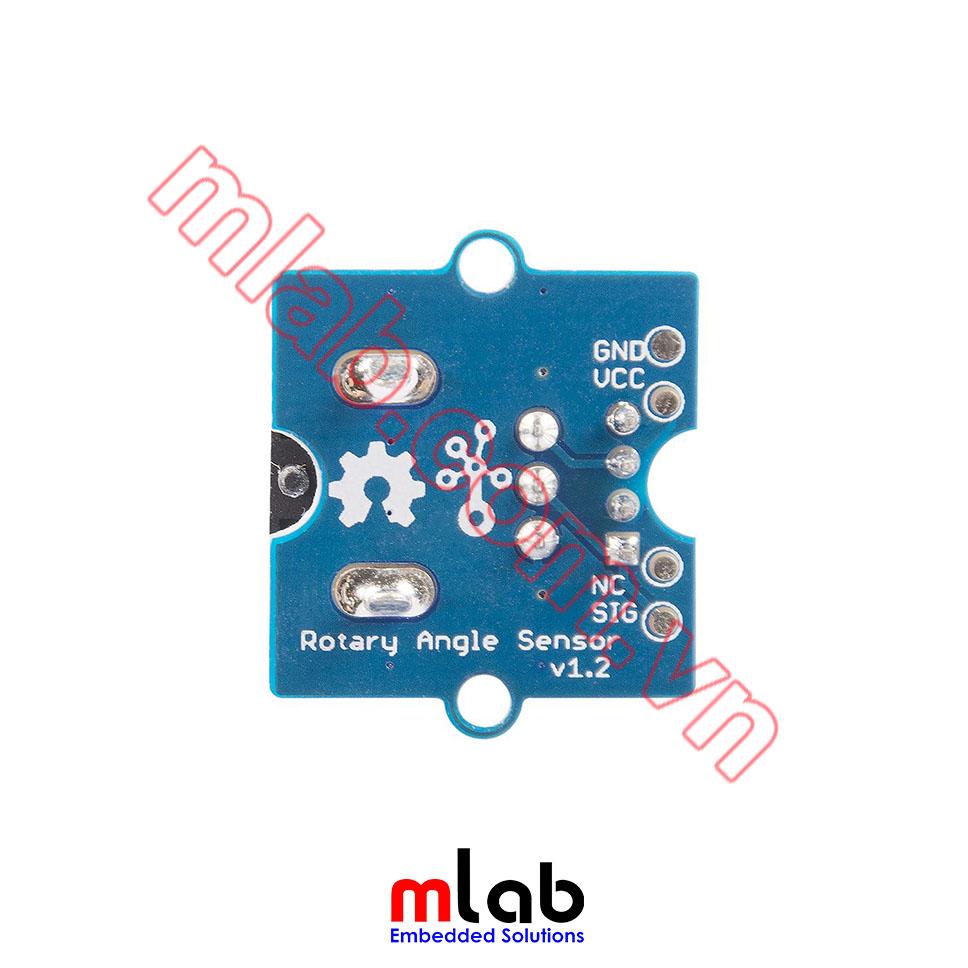

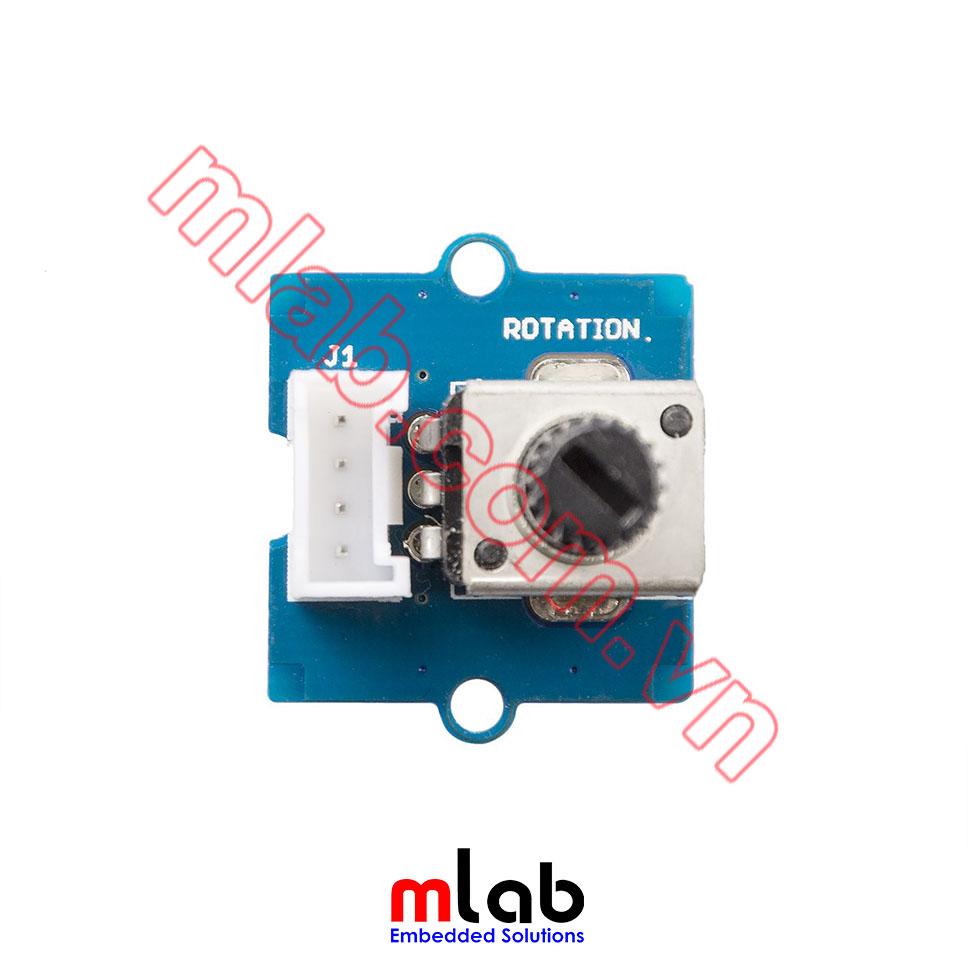

Grove - Rotary Angle Sensor, this potentiometer twig produces analog output between 0 and Vcc (5V DC with Seeeduino) on its D1 connector. The D2 connector is not used. The angular range is 300 degrees with a linear change in value. The resistance value is 10k ohms, perfect for Arduino use. This may also be known as a rotary angle sensor.

Features

High availability suitable for project needs: ± 20% resistance tolerance, and 300 degrees Angular range with a linear change in value
Perfectly compatible with both Arduino and Raspberry Pi: 0-5V analog output and 10k ohms resistance.
Plug and use: Grove connector design.
Starter-friendly: Clear documentation and guide provided.

Tips

Check our blog Potentiometer – Functions, Types, and Applications to learn more basics and project ideas!
We prepared an example code and software libraries to help you quickly start. Check our Wiki to learn more!

Description

The potentiometer is also known as a potmeter or Pot, it consists of a resistive element called the track and a sliding contact called the wiper internally where end terminals are attached to the resistive element.

Grove - Rotary Angle Sensor is compatible with both Arduino and Raspberry Pi. Please use a Base Shield V2 to connect it with your Arduino boards and use a Base HAT for Raspberry Pi to connect with your Raspberry Pi.

We also provide Grove - Rotary Angle Sensor(P). "P" is for "panel mount" in this product. It is the sister version of Grove - Rotary Angle Sensor. They are identical except the Grove connecter is moved to the back so that you can easily use it as a neat and wire-free human interface device.

What is Grove?

Grove makes it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering are required. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. Not only are these open hardware, but we also have open-source software.

For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.
