Supports LTE-A and UMTS/HSPA(+) multi networks
Multi-Constellation High-Accuracy GNSS, Cloud Platform Communication, LTE-A Networking
Từ 2022 MLAB có thêm website mlab.com.vn với nền tảng web mới hơn, dễ sử dụng hơn cho quý khách hàng tra cứu, đặt hàng online tại MLAB. Quý khách hàng có thể mua tại MLAB tại link: (link đặt hàng)

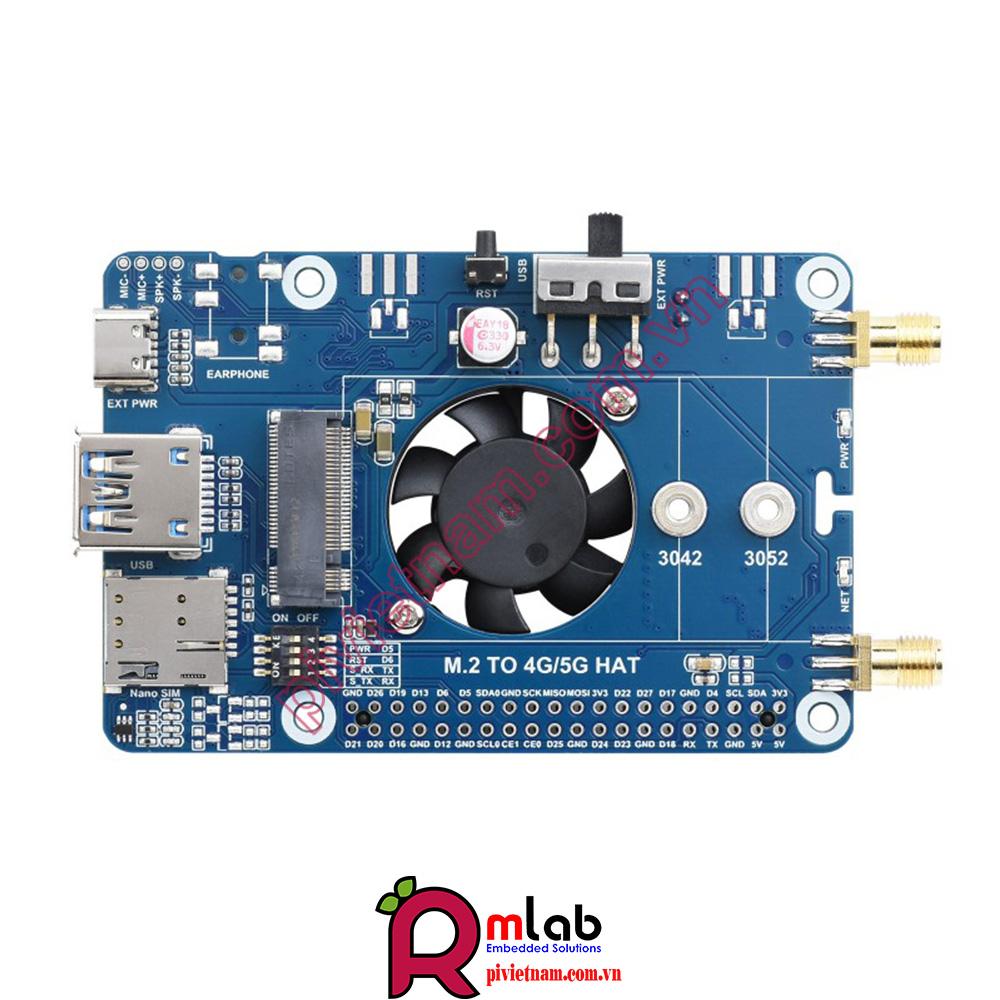

Features At A Glance
This is an LTE Cat 6 Raspberry Pi communication HAT with GNSS and up to 300Mbps (downlink) / 50Mbps (uplink) data rate. It is applicable for countries/regions including Europe, the Middle East, Africa, Asia-Pacific, Brazil... By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable LTE-A high speed networking, cloud platform communication, SMS, and global GNSS positioning functions.
- Multi-constellation high-accuracy GNSS positioning: GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
- Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android
- USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed LTE-A communication
- Standard M.2 B KEY slot, compatible with different core modules: EM06-E, EM06-J, EM06-A series
- Onboard PWR and RST control pin, enabled via DIP switch, for connecting to external IO to turn on/off or reset the module
- Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
- Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
- Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
- High efficiency power supply circuit, up to 3A output current
Module Specifications
| LTE CAT 6 | |
|---|---|
| Region / Provider | EMEA / APAC (except Japan and CMCC) / Brazil |
| Module dimensions | 42.0 × 30.0 × 2.3 (mm) |
| TEMPERATURE RANGE | |
| Operating temperature | -30°C ~ +70°C |
| Extension temperature | -40°C ~ +85°C |
| FREQUENCY BAND | |
| LTE-FDD | B1, B3, B5, B7, B8, B20, B28, B32 (receive only for B32) |
| LTE-TDD | B38, B40, B41 |
| 2xCA | B1+B1, B5, B8, B20, B28; B3+B3, B5, B7, B8, B20, B28; B7+B5, B7, B8, B20, B28; B20+B32 (B32 is used for aux component carrier only), B38+B38, B40+B40, B41+B41 |
| WCDMA | B1, B3, B5, B8 |
| GNSS | GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS |
| DATA RATE | |
| LTE-FDD | 300 Mbps (DL) / 50 Mbps (UL) |
| LTE-TDD | 226 Mbps (DL) / 28 Mbps (UL) |
| DC-HSPA+ | 42 Mbps (DL) / 5.76 Mbps (UL) |
| WCDMA | 384 Kbps (DL) / 384 Kbps (UL) |
Dedicated For IoT/M2M Applications
Supports LTE-A And UMTS/HSPA(+) Multi Networks
Applicable For Countries/Regions Including Europe, The Middle East, Africa, Asia-Pacific, Brazil...
Multi System Support, Easy To Use
Supports Windows / Linux / Android...
Just plug it into USB port, go through some simple configuration, the high speed LTE-A network connection will be ready to use
Connection Examples

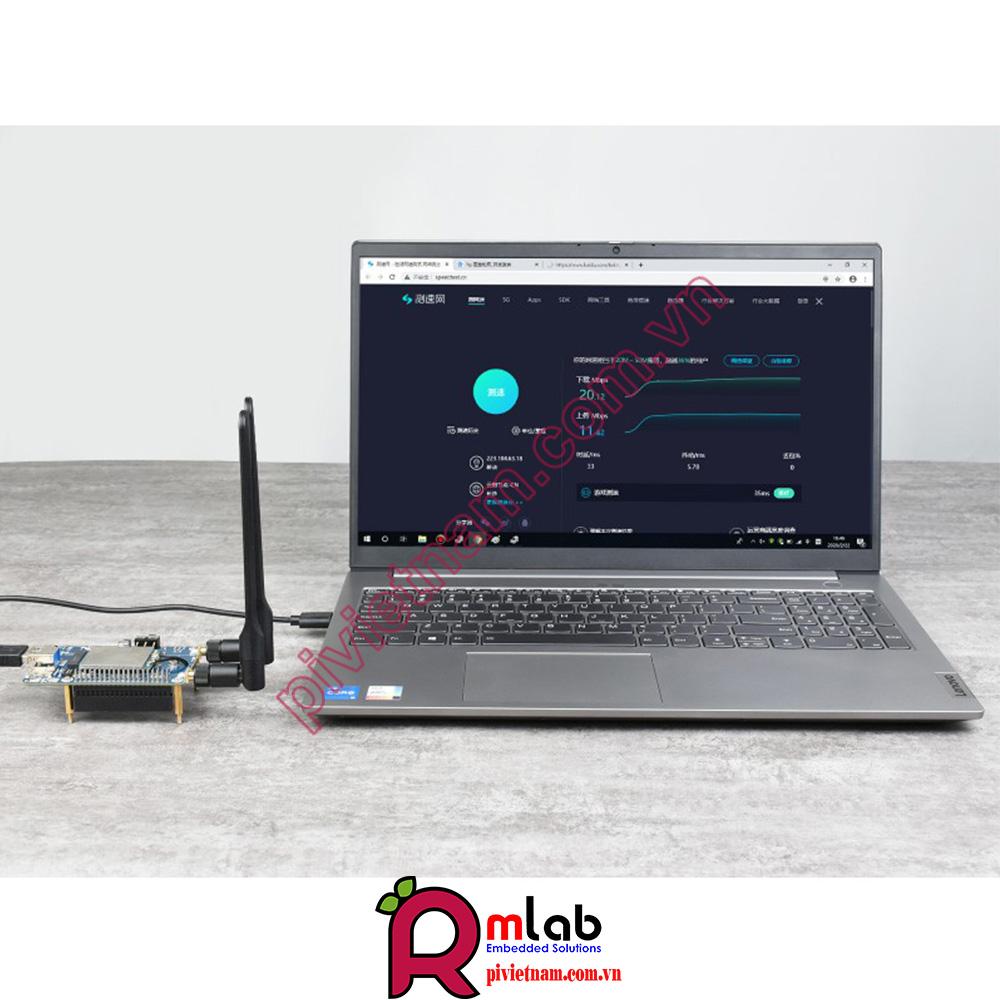

For Windows PC Or Jetson Nano Series, Use A USB Cable

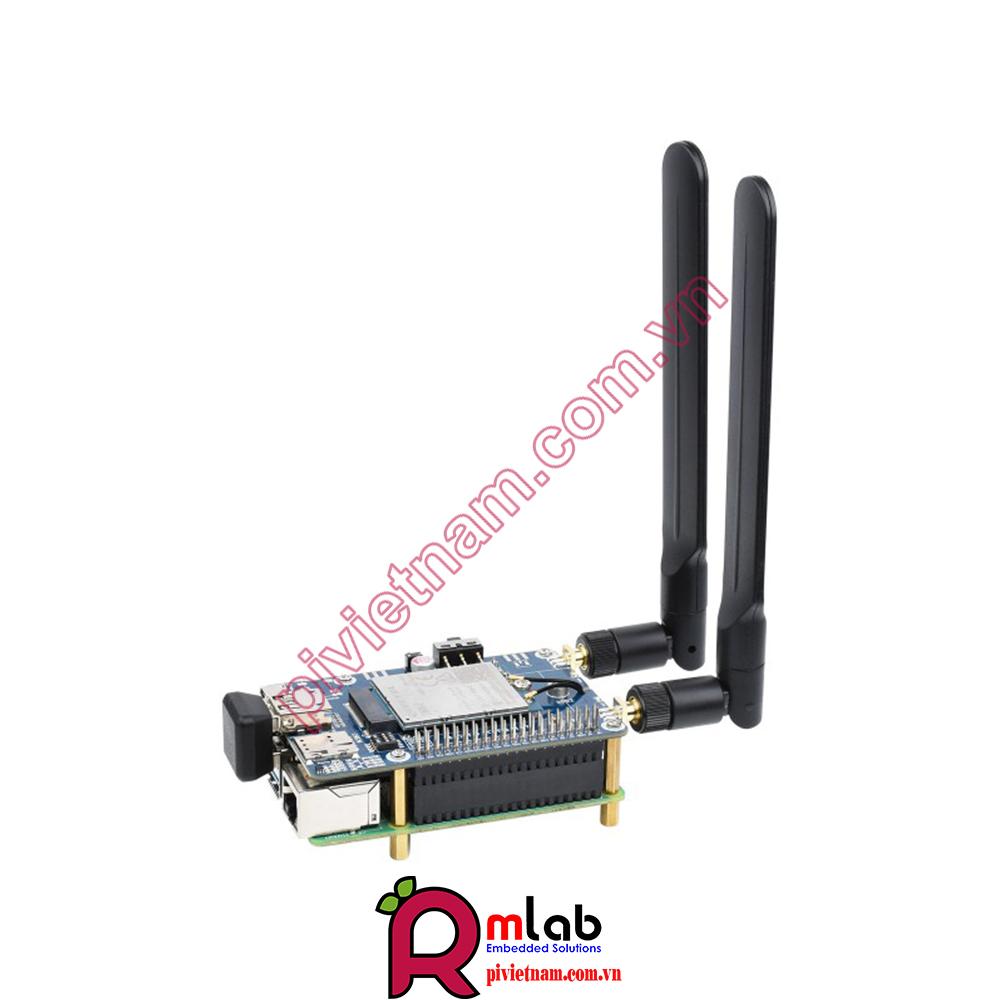

For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter
Multi-Constellation High-Accuracy GNSS
Supports GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
Standard Raspberry Pi 40PIN GPIO Header
Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs

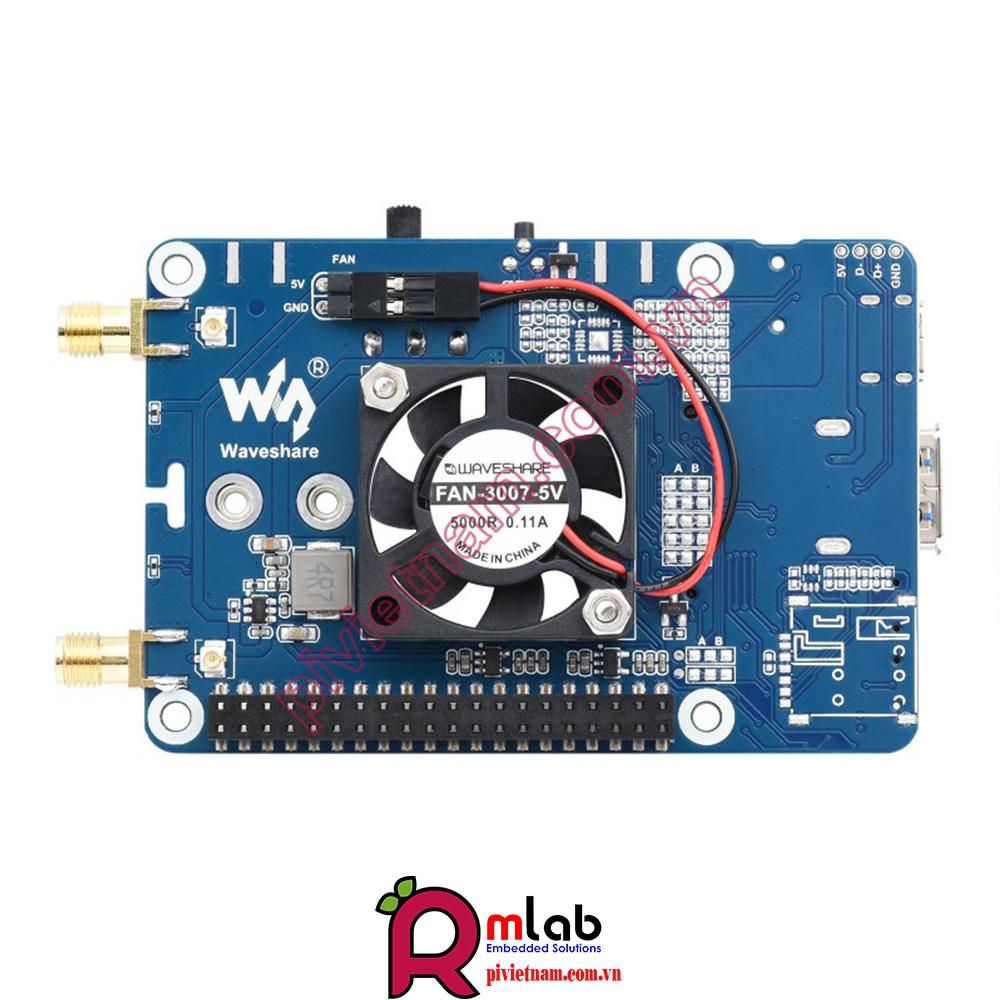

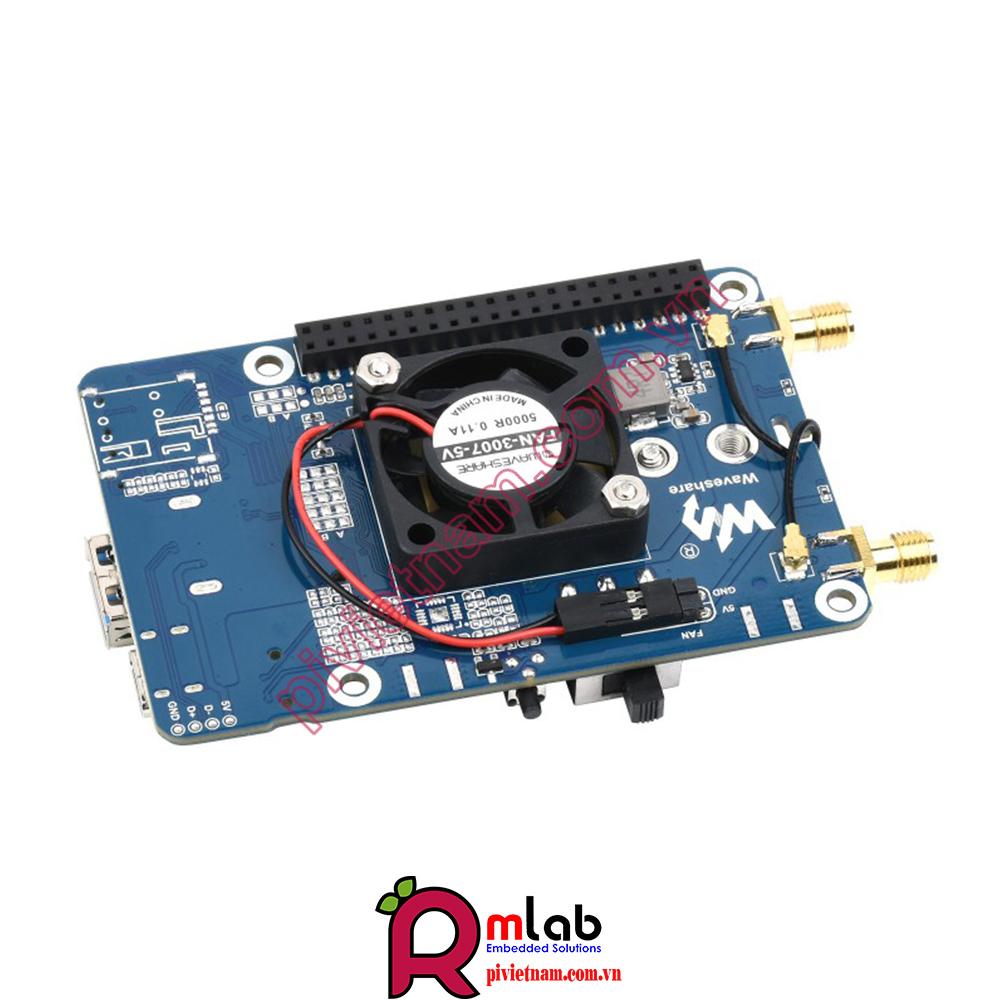

High Speed Cooling Fan
Better Heat Dissipation For Both Raspberry Pi And The LTE-A Module

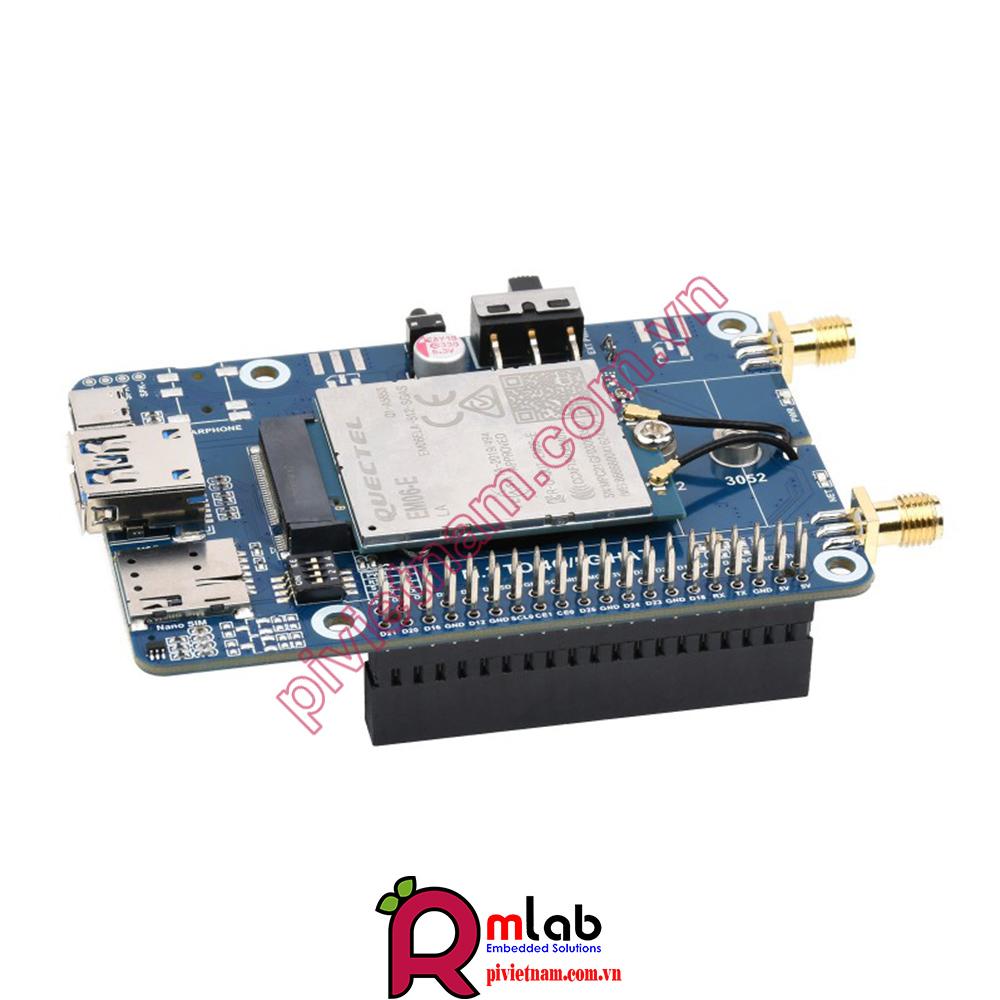

Standard M.2 B KEY Slot
Compatible With EM06-E, EM06-J, EM06-A Series Modules
| LTE CAT 6 | EM06-E | EM06-J | EM06-A |
|---|---|---|---|
| Region / Provider | EMEA/APAC①/Brazil | Japan | North America/Mexico |
| Operating temperature | -30 °C ~ +70 °C | ||
| Extension temperature | -40 °C ~ +85 °C | ||
| Dimensions | 42.0 × 30.0 × 2.3 (mm) | ||
| Power supply | 3.135V~4.4V, typical 3.7V | ||
| Power consumption | 50μA @ shutdown 4.1mA @ hibernate, typical 22.1mA @ idle | 47μA @ shutdown 3.8mA @ hibernate, typical 19.5mA @ idle | 50μA @ shutdown 3.8mA @ hibernate, typical 21.3mA @ idle |
| FREQUENCY BAND | |||
| LTE-FDD | B1, B3, B5, B7, B8, B20, B28, B32② | B1, B3, B8, B18, B19, B26, B28 | B2, B4, B5, B7, B12, B13, B25, B26, B29②, B30, B66 |
| LTE-TDD | B38, B40, B41 | B41 | B41 |
| 2xCA | B1+B1, B5, B8, B20, B28; B3+B3, B5, B7, B8, B20, B28; B7+B5, B7, B8, B20, B28; B20+B32②; B38+B38; B40+B40; B41+B41 | B1+B1, B8, B18, B19, B26, B28; B3+B3, B8, B18, B19, B26, B28; B41+B41 | B2+B2, B5, B12, B13, B29②; B4+B4, B5, B12, B13, B29②; B7+B5, B7, B12, B26; B25+B5, B12, B25, B26; B30+B5, B12, B29②; B66+B5, B12, B13, B29②, B66; B41+B41 |
| WCDMA | B1, B3, B5, B8 | B1, B3, B6, B8, B19 | B2, B4, B5 |
| GNSS | GPS / GLONAS S/ BeiDou (Compass) / Galileo / QZSS (configurable) | ||
| DATA RATE | |||
| LTE-FDD | 300 Mbps (DL); 50 Mbps (UL) | ||
| LTE-TDD | 226 Mbps (DL); 28 Mbps (UL) | ||
| DC-HSPA+ | 42 Mbps (DL); 5.76 Mbps (UL) | ||
| WCDMA | 384 kbps (DL); 384 kbps (UL) | ||
| ① except Japan and CMCC; ② B29/B32 is only used for receiving in LTE-FDD, while only for aux component carrier wave in 2×CA; | |||
Application Examples
LTE-A Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a LTE-A wireless router, providing WiFi hotspot for smartphones to easily access the LTE-A Network.
LTE-A Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.
Outline Dimensions
